Front Side Door Window Channel Retainer Replacement

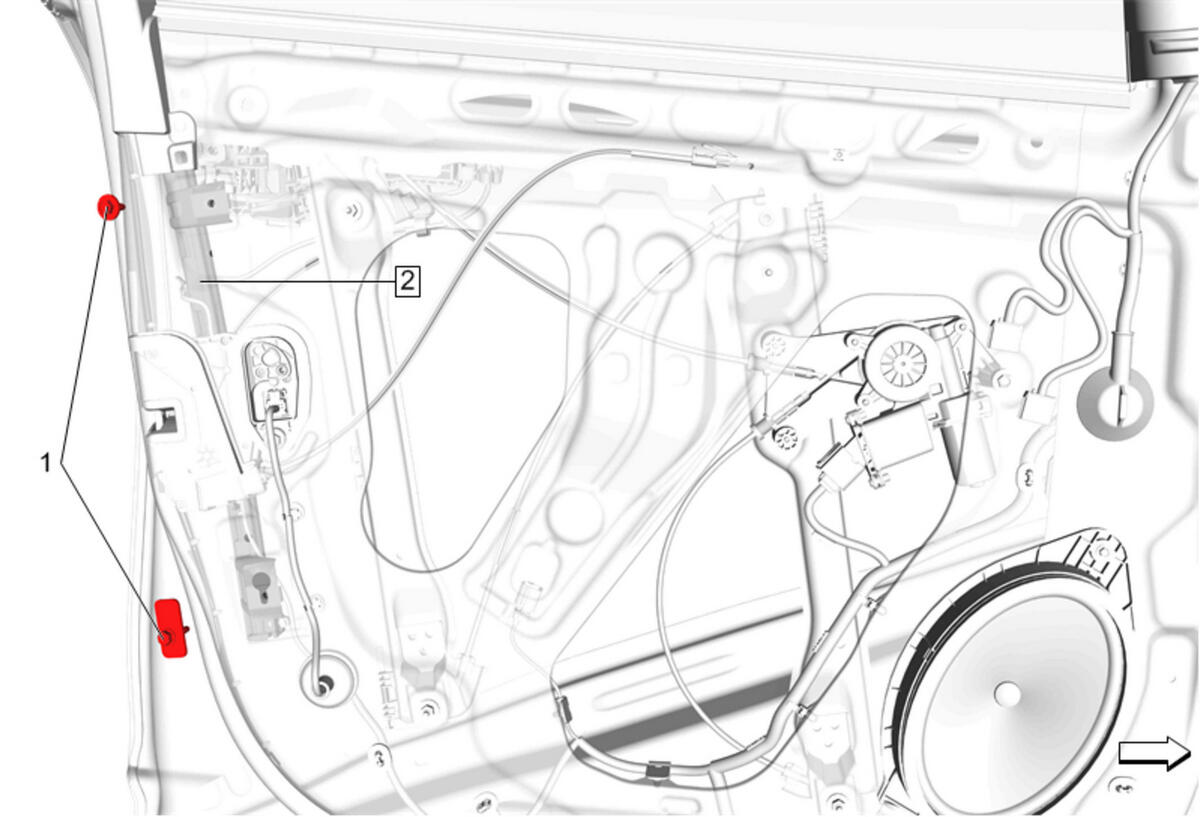

Fig 1: Front Side Door Window Channel Retainer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedure Remove Front Side Door Water Deflector. Refer to Front Side Door Water Deflector Replacement (Equinox)Front Side Door Water Deflector Replacement (Terrain)
1	Front Side Door Window Channel Retainer Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Side Door Window Channel Retainer Preliminary Procedure Disconnect and reposition harness as necessary.
