Side Object Sensing Alert Module Replacement

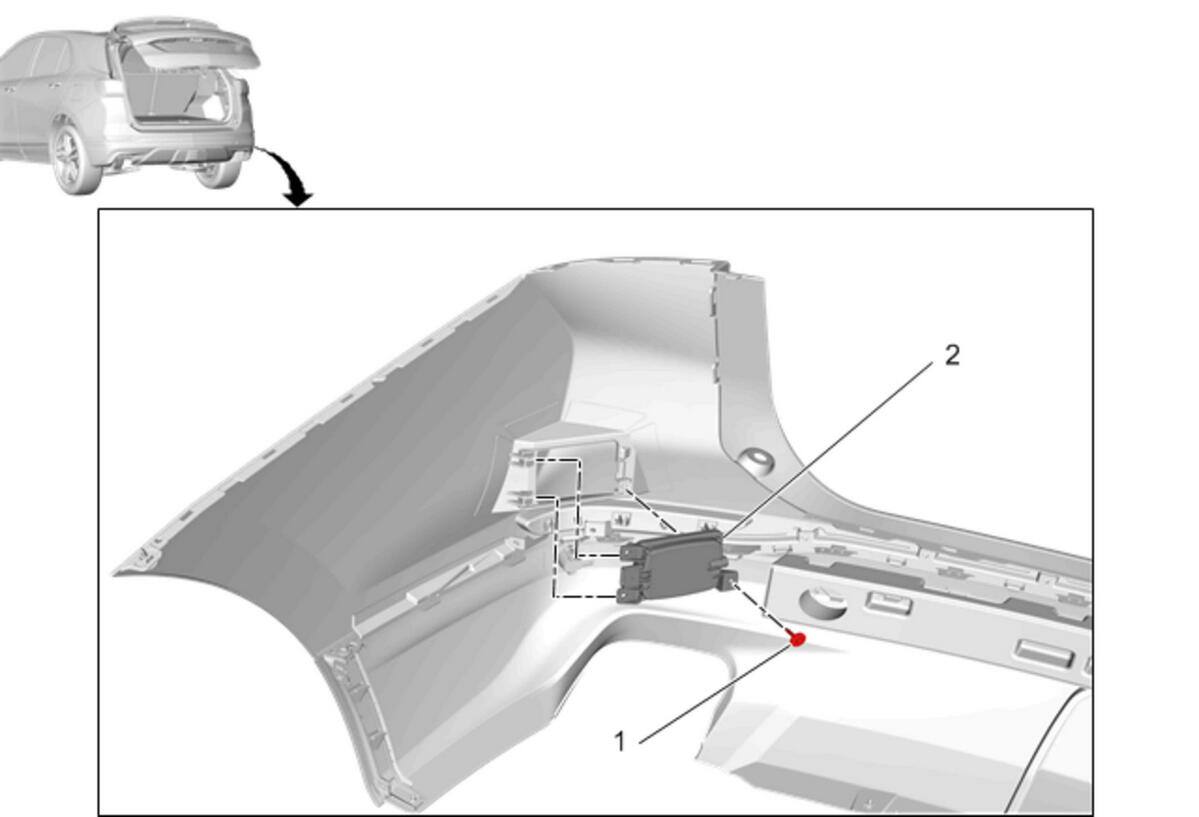

Fig 1: Side Object Sensing Alert Module

GM4580642

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove Rear Bumper Fascia. Refer to Rear Bumper Fascia Replacement (Equinox)Rear Bumper Fascia Replacement (Terrain)

1

Side Object Sensing Alert Module Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Side Object Sensing Alert Module

Procedure

Disconnect the electrical connector.
Slide the module out of the retaining bracket.
Perform the necessary programming and setup procedure: Control Module References
