Steering Wheel Controls

Steering Wheel Controls

Items
1. S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch
2. X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1X85 Steering Wheel Air Bag Coil X2
3. S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch

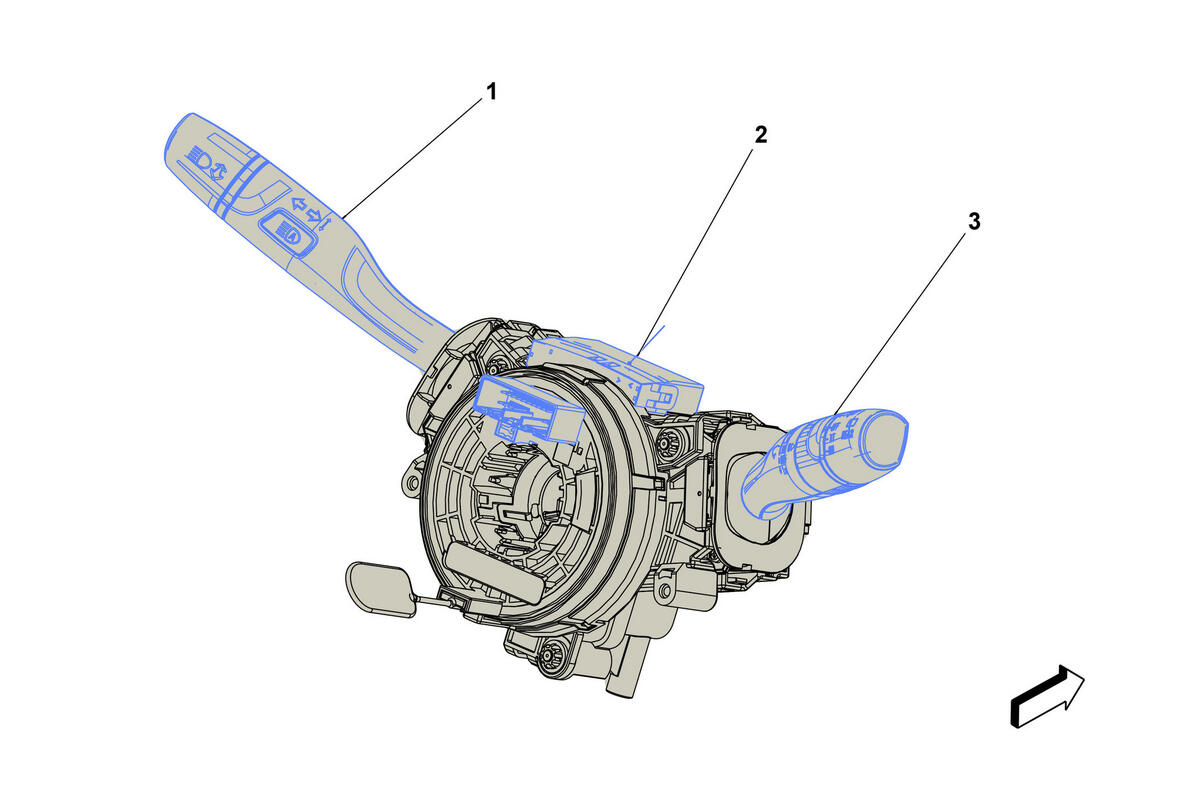

Fig 1: Steering Wheel Controls
GM4589088Courtesy of GENERAL MOTORS COMPANY
