Left Front Of The Vehicle

Left Front Of The Vehicle

Items
1. B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
2. B55 Engine Hood Switch B55 Engine Hood Switch
3. B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
4. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X11X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X5 (LH7)X50A Fuse Block - Underhood X6X50A Fuse Block - Underhood X7X50A Fuse Block - Underhood X8X50A Fuse Block - Underhood X9
5. G19 Rear Window Washer Pump G19 Rear Window Washer Pump
6. G24 Windshield Washer Pump G24 Windshield Washer Pump
7. B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch
8. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor
9. P13 Horn Assembly P13 Horn Assembly

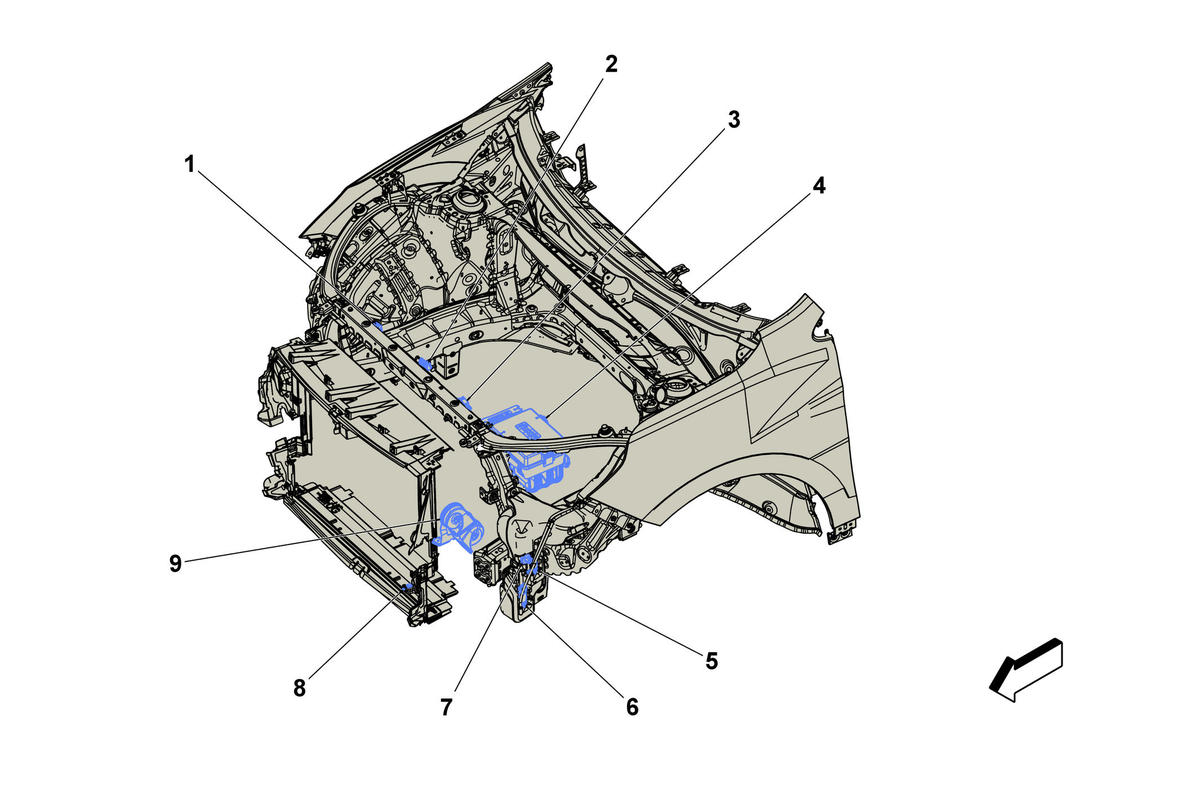

Fig 1: Left Front Of The Vehicle
GM4585869Courtesy of GENERAL MOTORS COMPANY
