Fuel Pump Power Control Module Replacement (FWD)

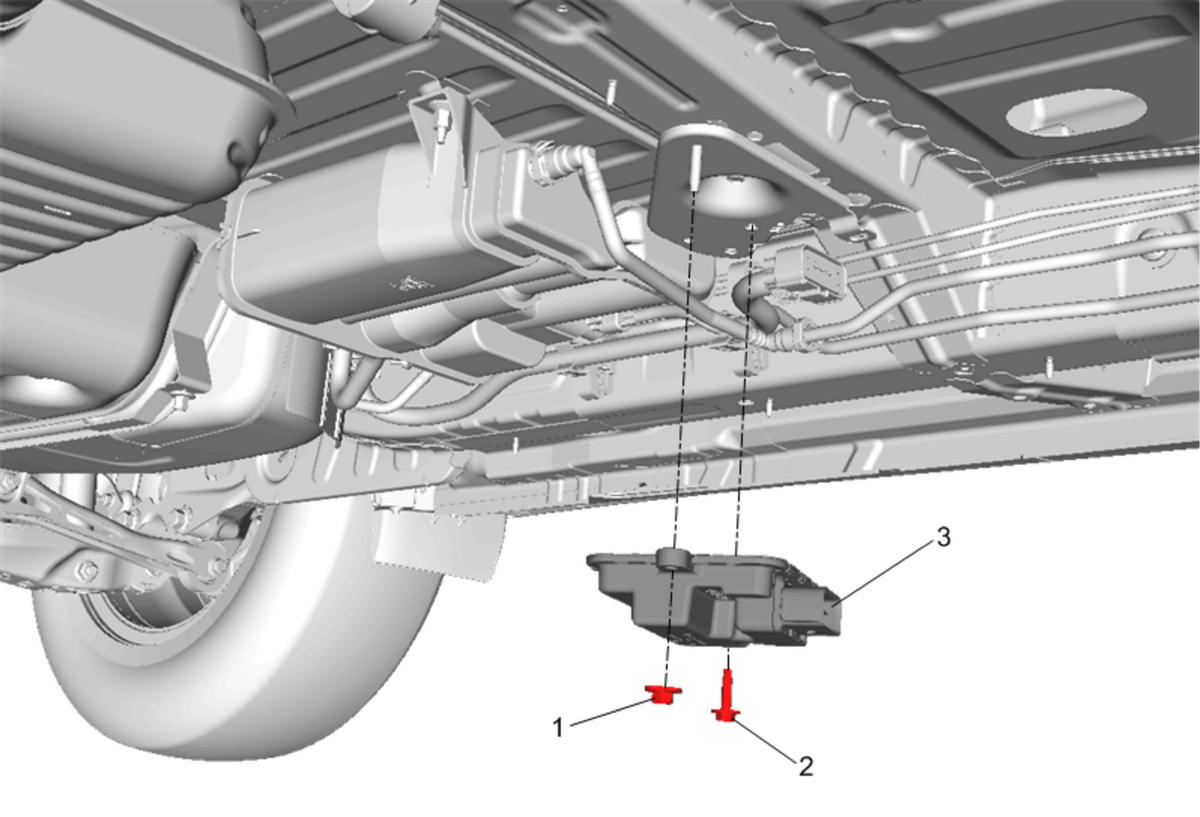

Fig 1: Fuel Pump Power Control Module (FWD)
GM4594204Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Underbody Rear Air Deflector Replacement (Front Wheel Drive)
1 Fuel Pump Power Control Module Nut
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Fuel Pump Power Control Module Bolt
Tighten
9 N.m (80 lb in)
3 Fuel Pump Power Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Control Module References
