Human Machine Interface and Display, Power, Ground, Serial Data and Microphone

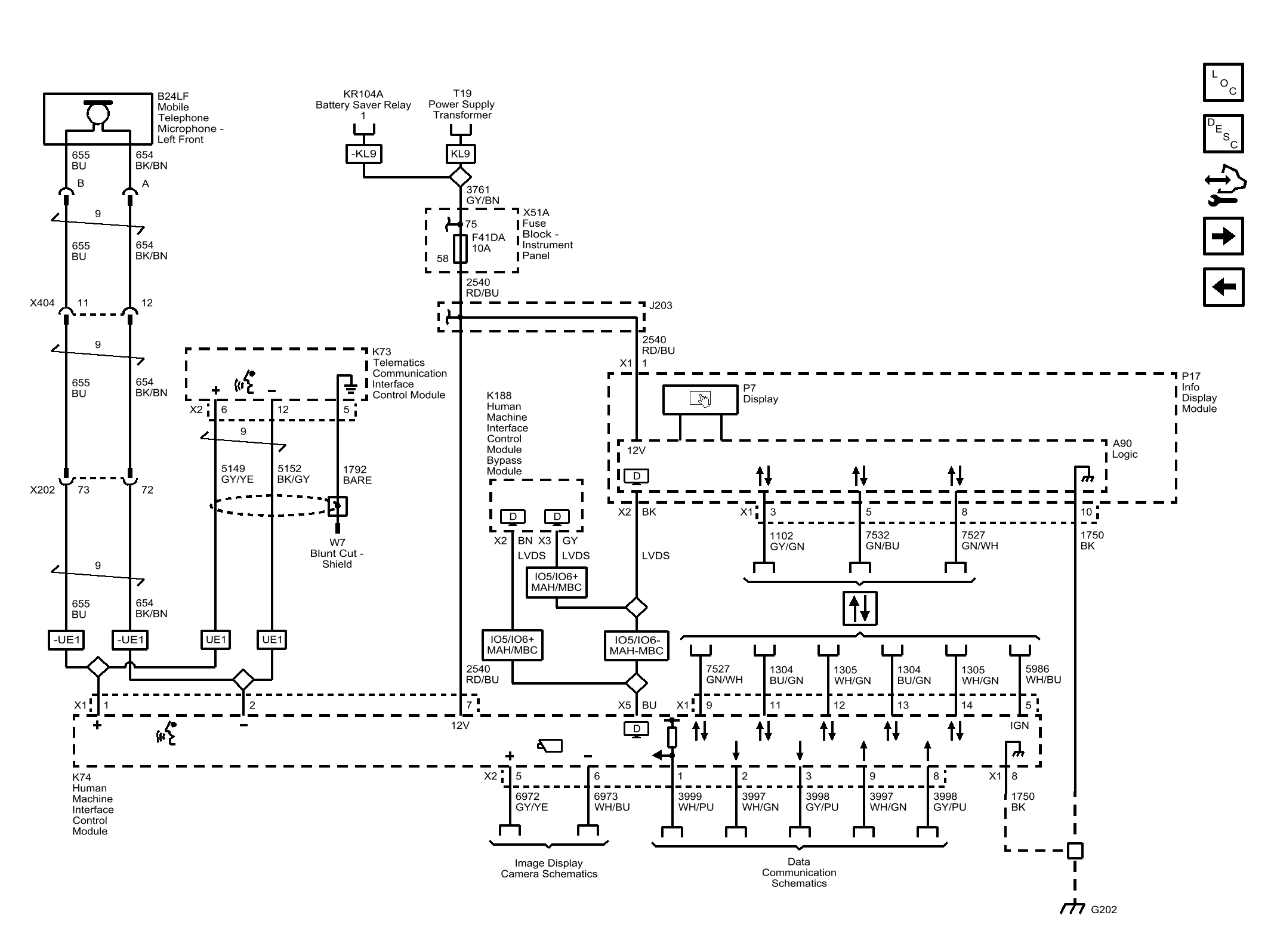

Fig 1: Human Machine Interface and Display, Power, Ground, Serial Data and Microphone

GM4597440

Courtesy of GENERAL MOTORS COMPANY
