Rear Vision Camera Description And Operation (IO5/IO6 With MAH/MBC): Notes

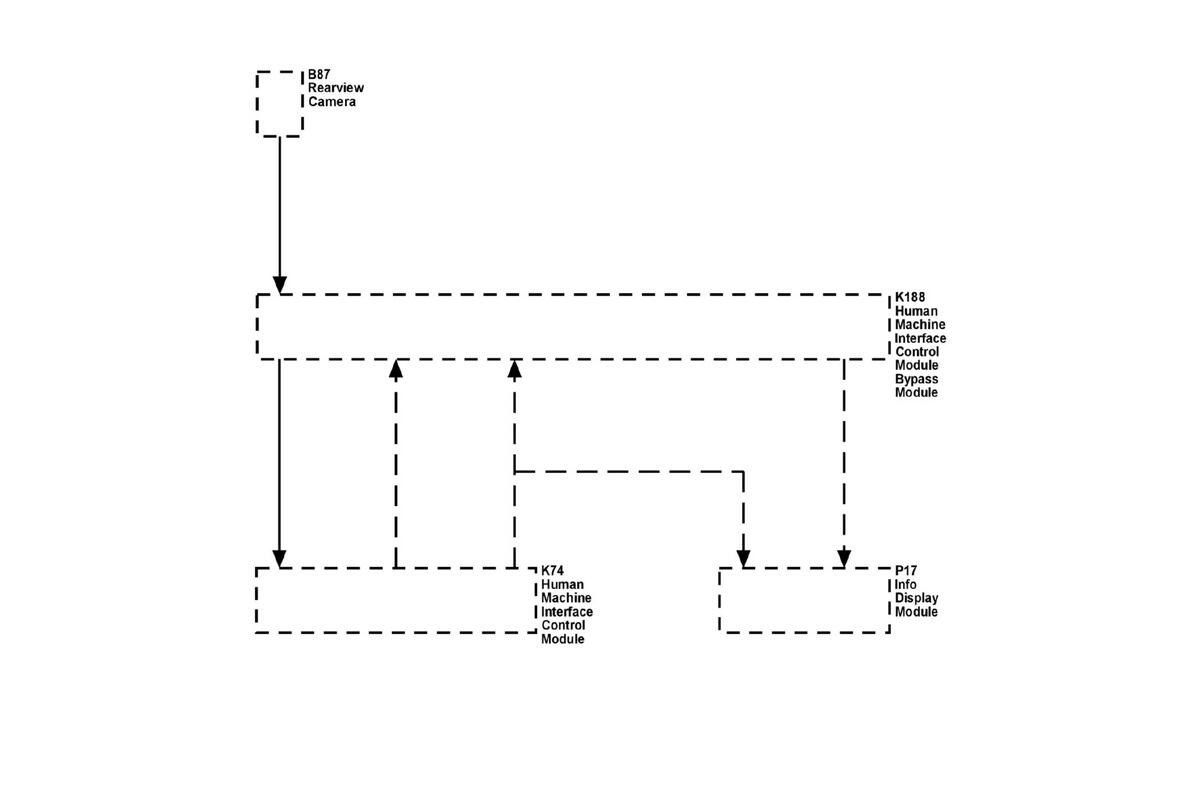

Fig 1: Rear Camera With VBM Block Diagram
GM4865655Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
K188 K188 Human Machine Interface Control Module Bypass Module
B87 B87 Rearview Camera
K74 K74 Human Machine Interface Control Module
P17 P17 Info Display Module
