Body Control Module Shield Replacement

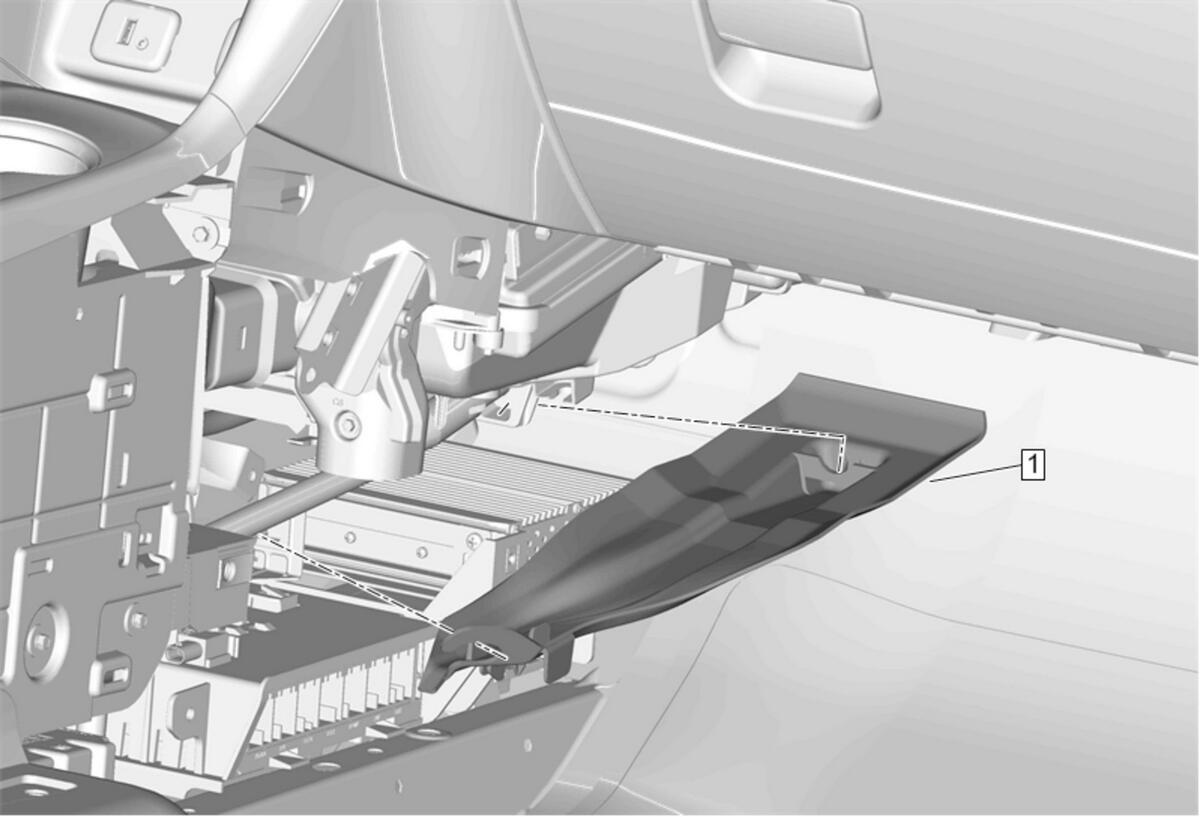

Fig 1: Body Control Module Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the floor rear air outlet duct - right side front. Floor Rear Air Outlet Duct Replacement - Right Side (Equinox Front)Floor Rear Air Outlet Duct Replacement - Right Side (Eqionox Rear)Floor Rear Air Outlet Duct Replacement - Right Side (Terrain Front)Floor Rear Air Outlet Duct Replacement - Right Side (Terrain Rear)
1	Body Control Module Shield Procedure  Reposition the wiring harness.
