Installation Procedure
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
- Install the front propeller shaft (1) into the vehicle.
- Support the front propeller shaft with a jack stand.
- Align the reference marks made during removal.
- Use an appropriate cleaner to thoroughly clean the threads and allow to dry.
- Apply thread locker to the propeller shaft to flange bolts. Ensure that there are no gaps in the thread locker along the length of the filled area of the bolts. Allow the thread locker to cure approximately 10 minutes before installation

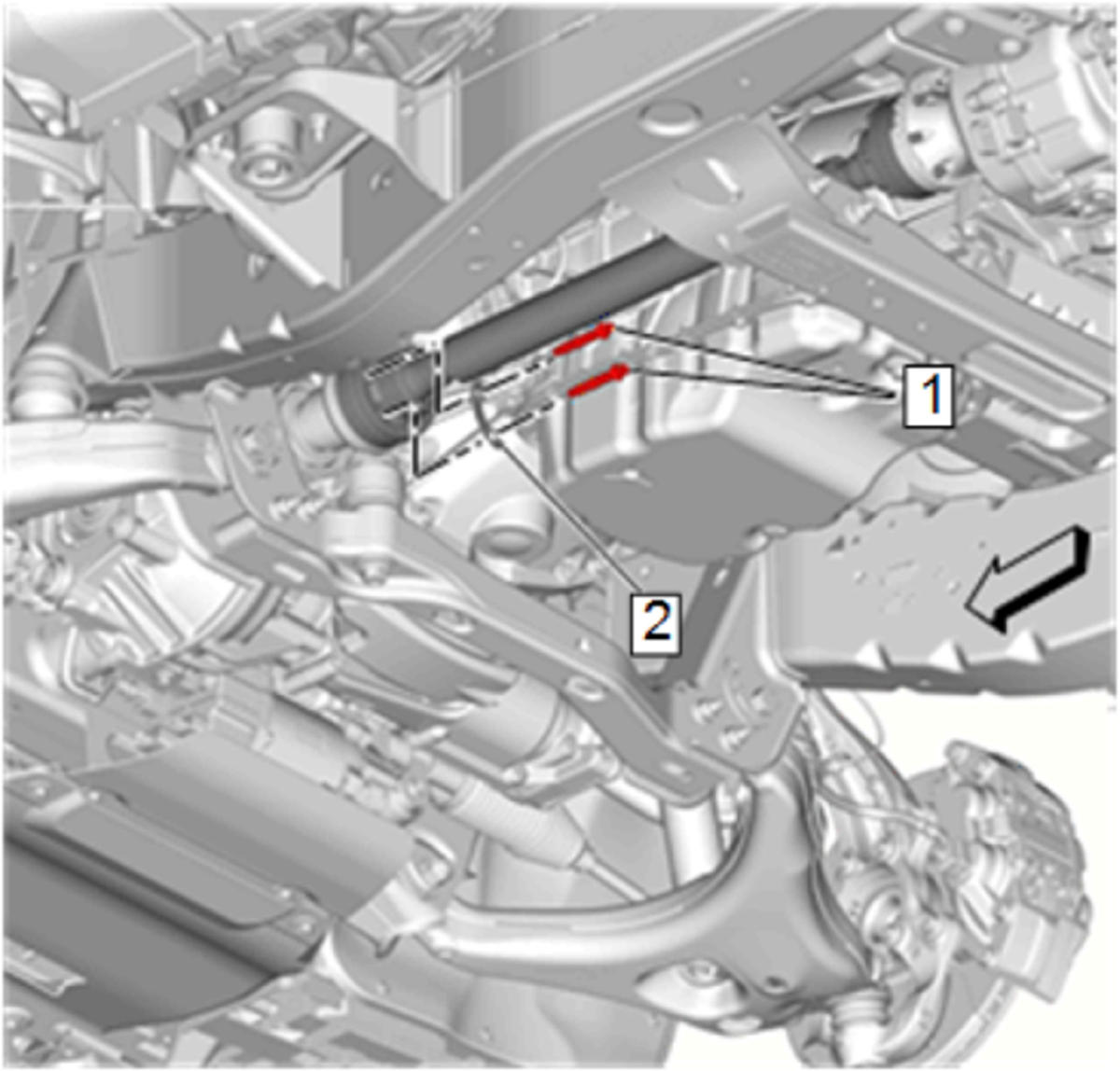

- Install the front propeller shaft rear flange bolts (1) (QTY 6) and the retainers brackets (2) (QTY 3). Tighten the bolts to 65 N.m (48 lb ft).

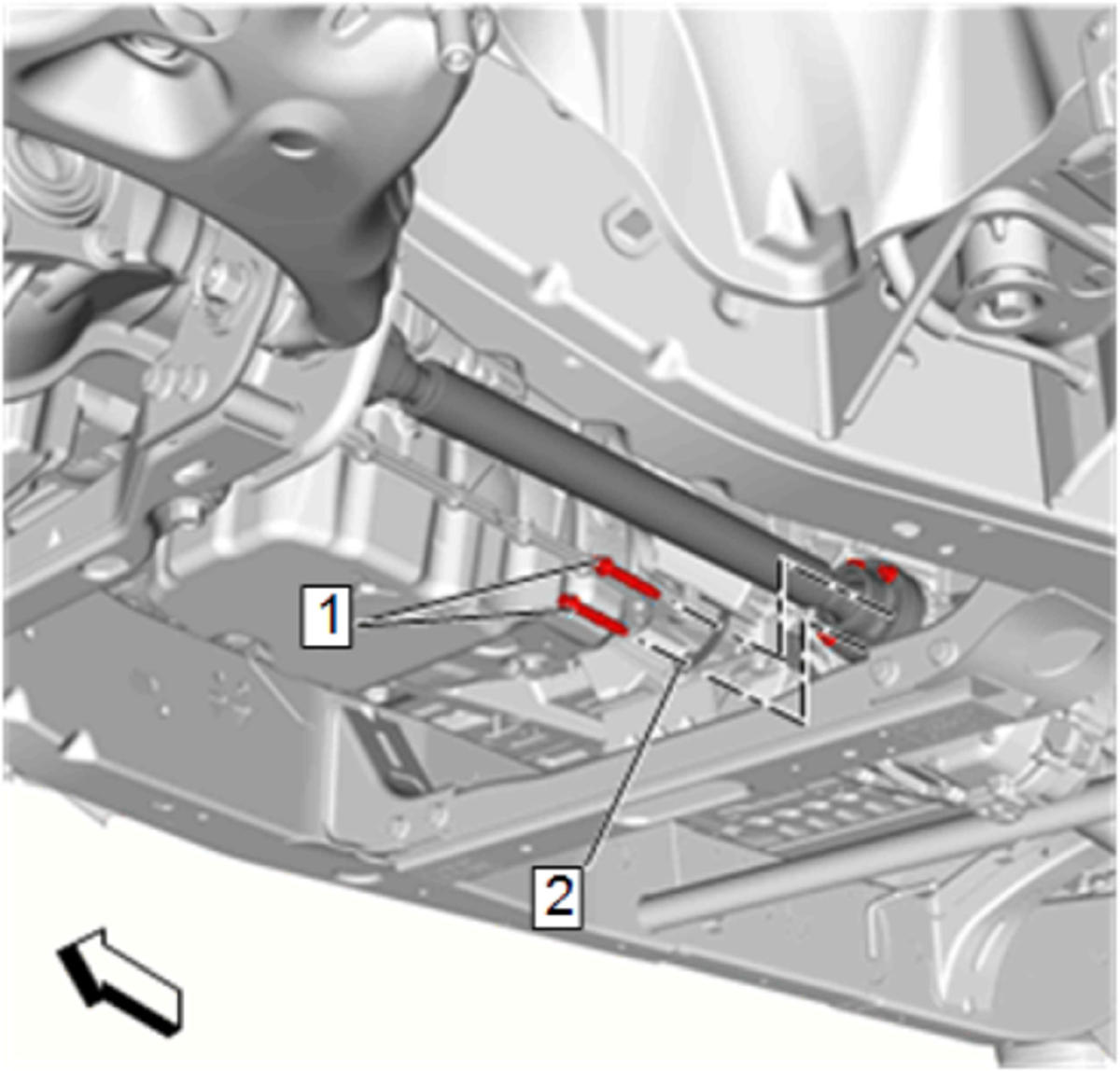

- Install the front propeller shaft front axle flange bolts (1) (QTY 6) and retainer brackets (2) (QTY 3). Tighten the bolts to 65 N.m (48 lb ft).
- Remove the jack stand supporting the front propeller shaft.
- Lower the vehicle.
NOTE:
If the bolts or nuts are found to be damaged or are excessively worn, DO NOT reuse. Replace with new.
NOTE:
If reusing the propeller shaft bolts, to ensure proper adhesion and fastener retention, the threads must be free of debris prior to the application of thread locker.
NOTE:
Align the reference marks made during removal.
