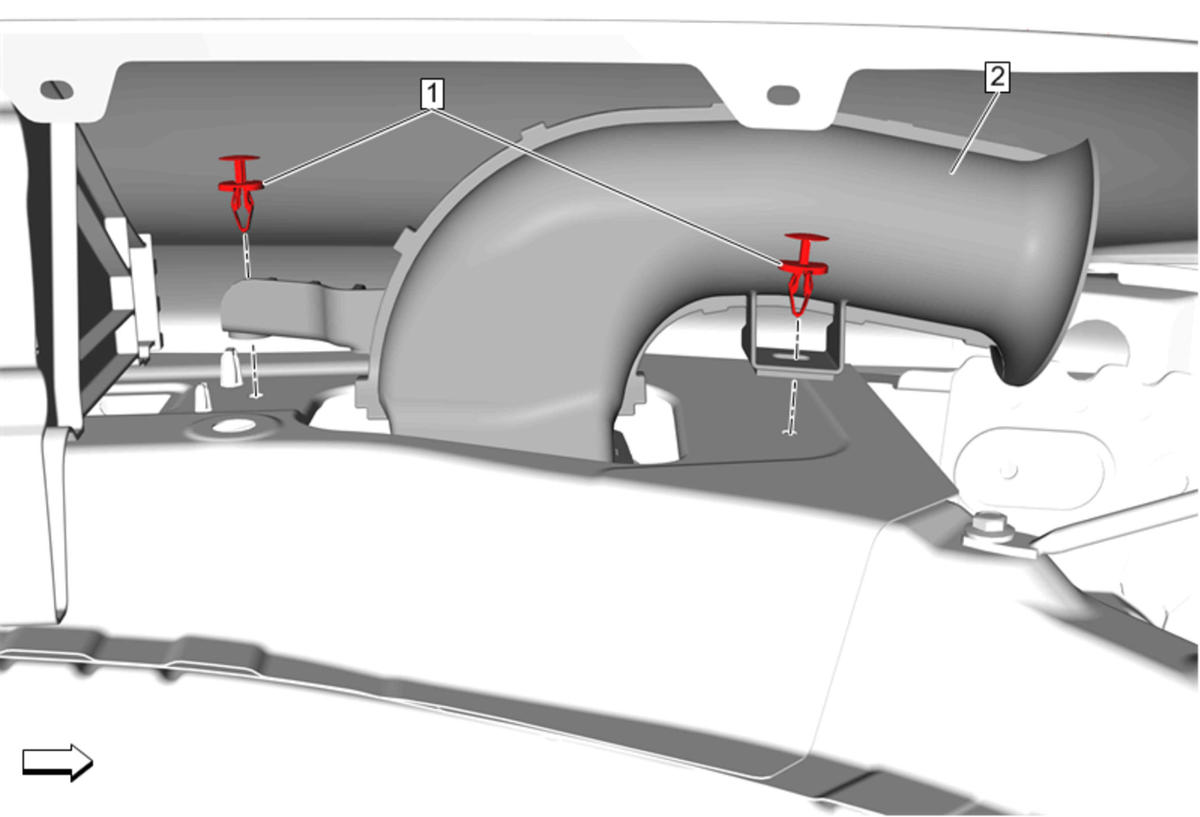

Front Intake Air Duct Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Wheelhouse Liner-Right Side - Remove - Front Wheelhouse Liner Replacement |
|
| 1 | Retainer[2x]
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Intake Air Duct Procedure Pull out on front intake air duct to remove from air cleaner assembly. |
