Installation Procedure

Install the wheel speed sensor to the suspension knuckle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Install the front wheel speed sensor bolt (1) and tighten to 6 N.m (53 lb in).
Courtesy of GENERAL MOTORS COMPANY

Install the front wheel speed sensor bracket bolt (1) and tighten to 9 N.m (80 lb in).
Courtesy of GENERAL MOTORS COMPANY

Install the front wheel speed sensor harness clips (1) to the vehicle frame.
Courtesy of GENERAL MOTORS COMPANY

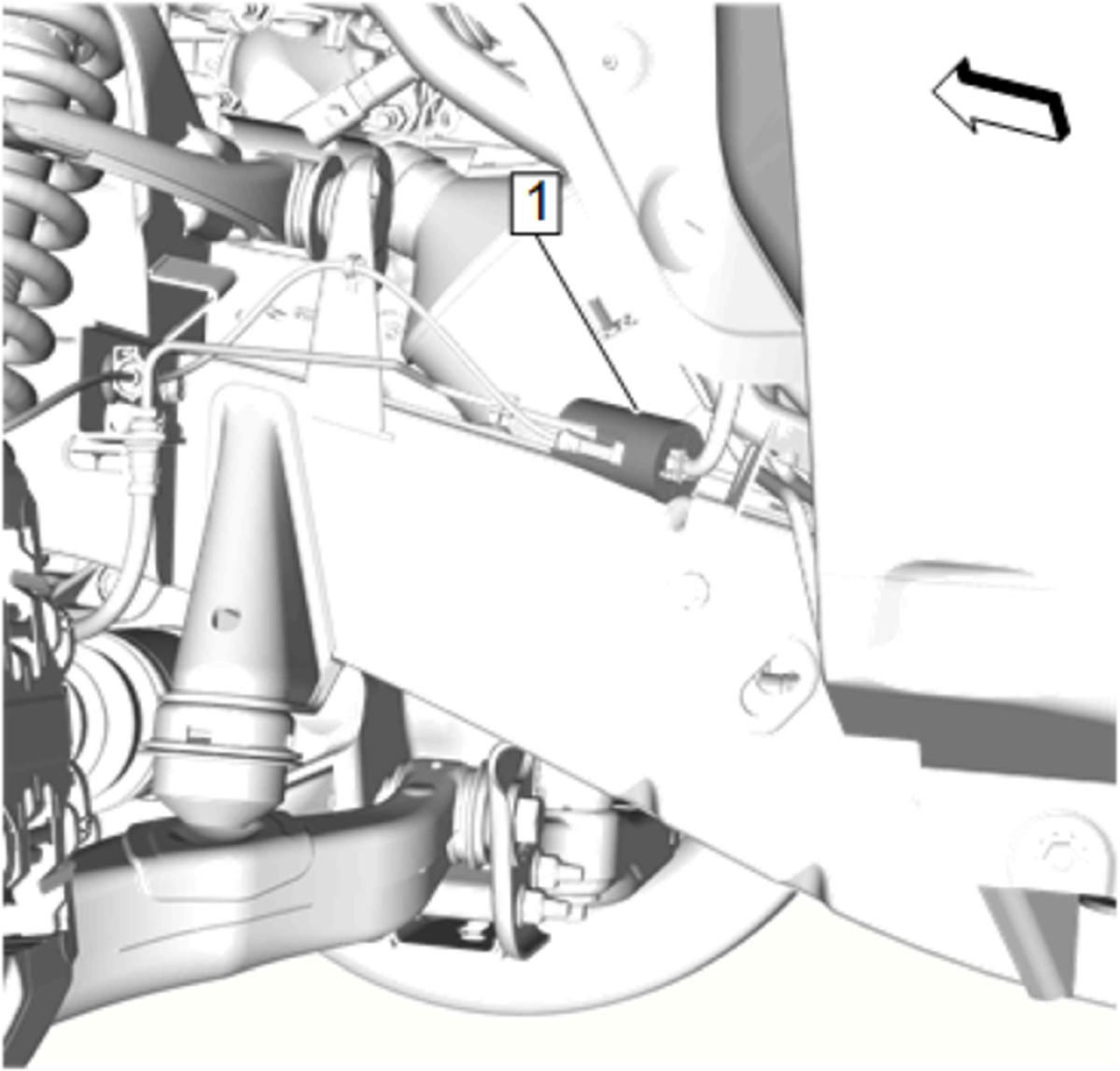

Install the front wheel speed sensor harness connector (1) retainer to the vehicle frame.
Connect the front wheel speed sensor electrical connector (1).
Courtesy of GENERAL MOTORS COMPANY

If equipped, reposition the wheel speed sensor electrical connector protective sleeve (1).
Install the tire and wheel assembly. Tire and Wheel Removal and Installation .
