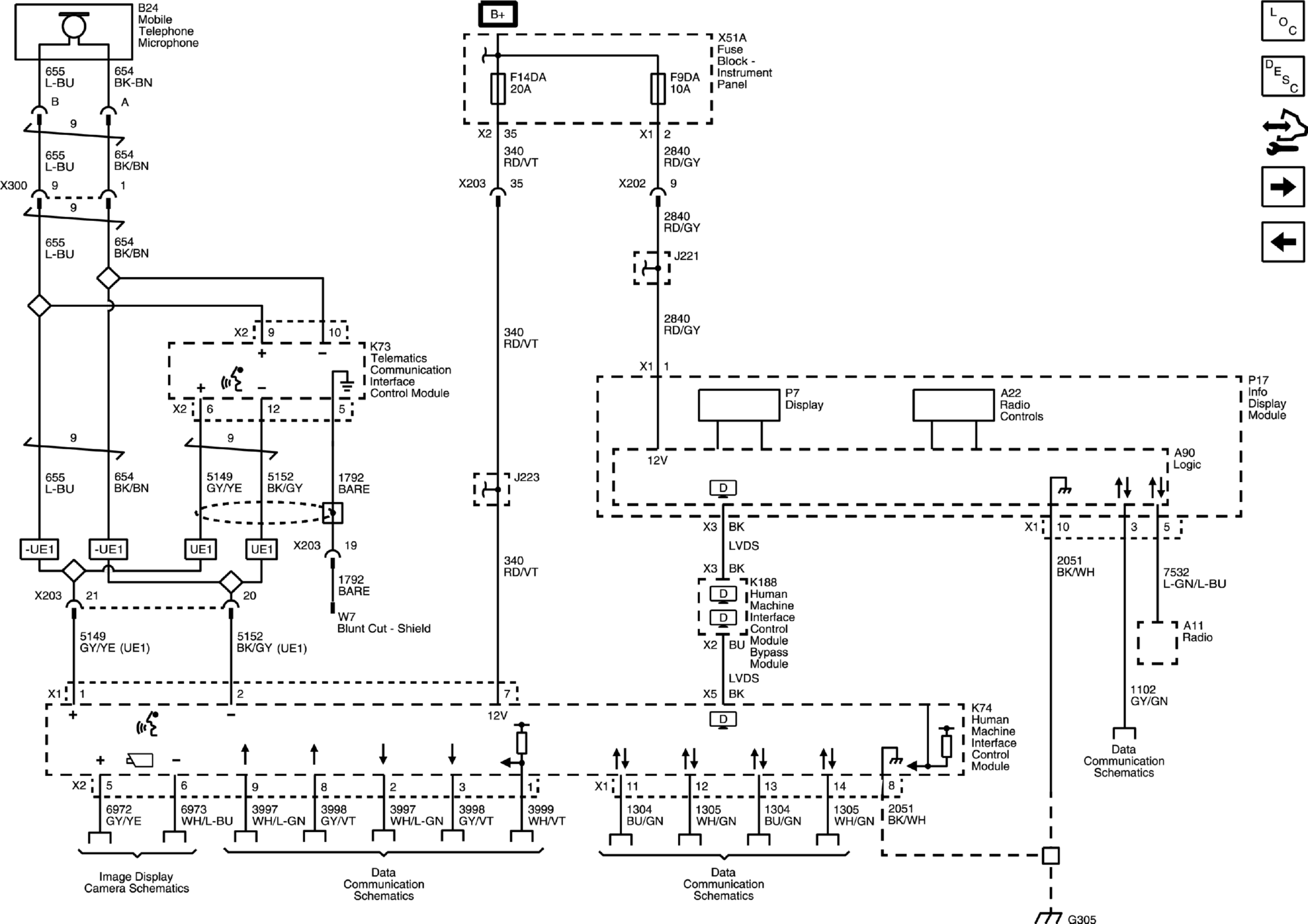

Human Machine Interface, Display, Cellular Microphone, Power, Ground and Serial Data (IO5, IO6)

GM4697485

Courtesy of GENERAL MOTORS COMPANY
