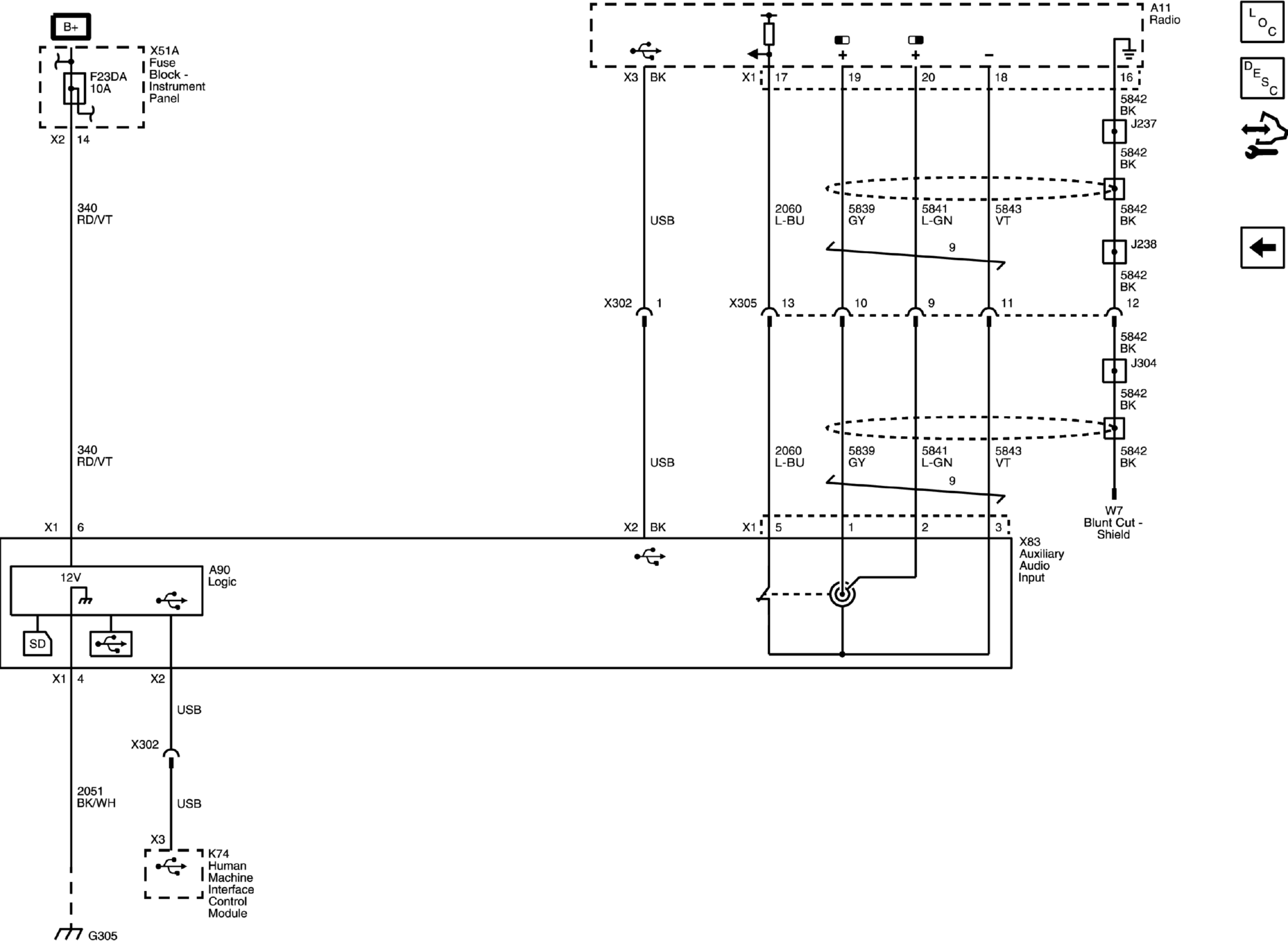

Home >> GMC >> 2018 >> Canyon SL >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Cellular System, Entertainment System, And Navigation System >> Wiring Schematic Diagrams >> Radio/Navigation System Wiring Schematics (IOB, IO5, IO6) >> Auxiliary Inputs (IOB with N8D)
