Data Communication System - Wiring Schematic Diagrams
>>
Wiring Schematic Diagrams
>>
Data Communication Wiring Schematics
>>

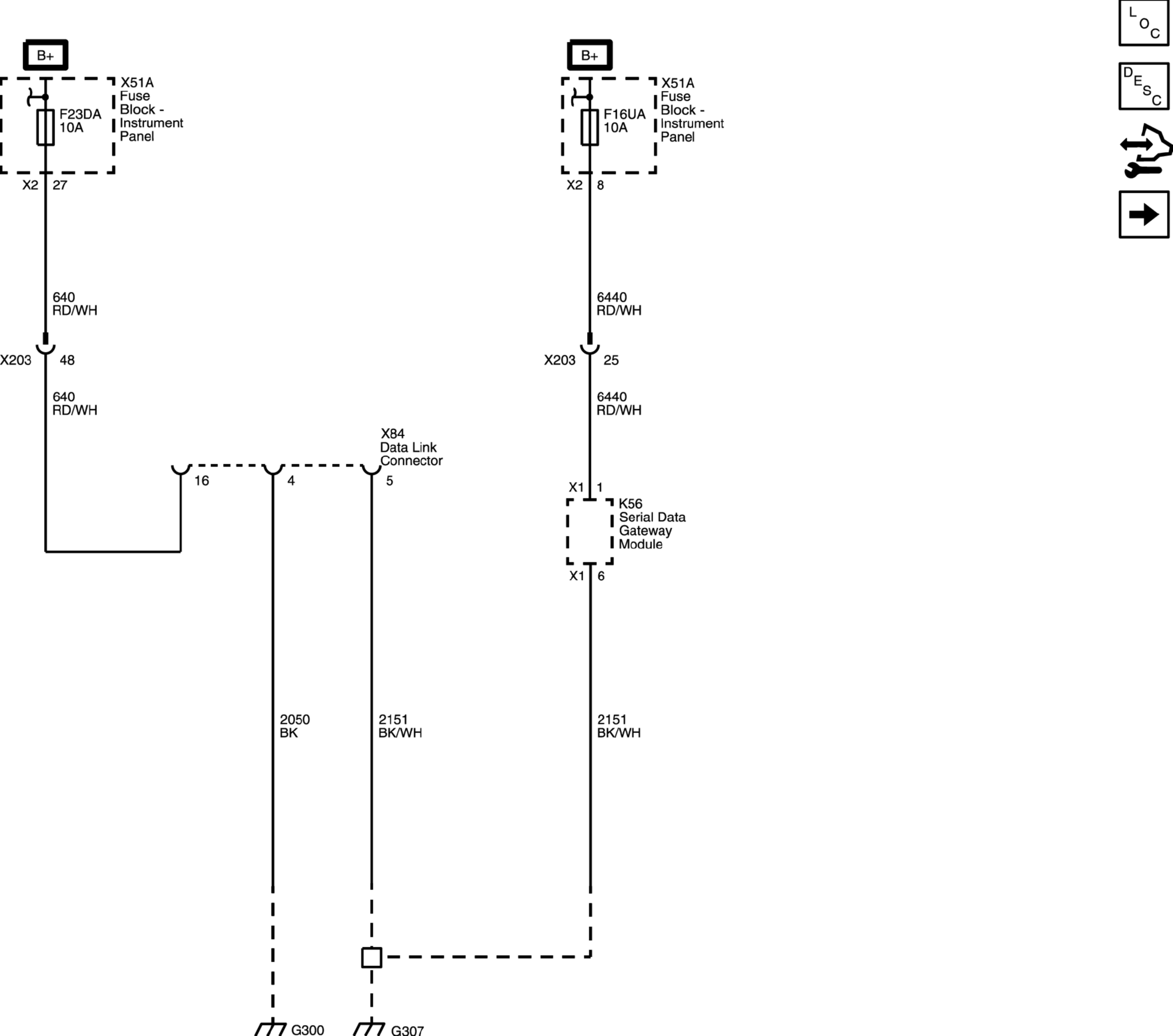

Serial Data Gateway Module and Data Link Connector Power and Ground
Serial Data Gateway Module and Data Link Connector Power and Ground
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
