Installation Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

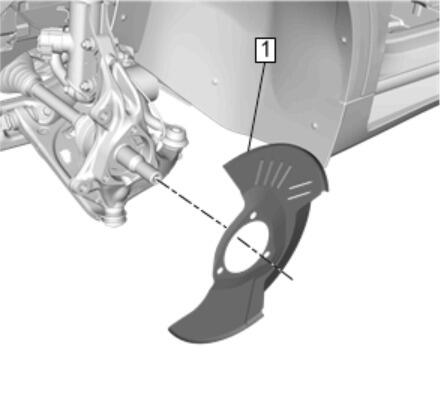

- Install Front Brake Shield (1)

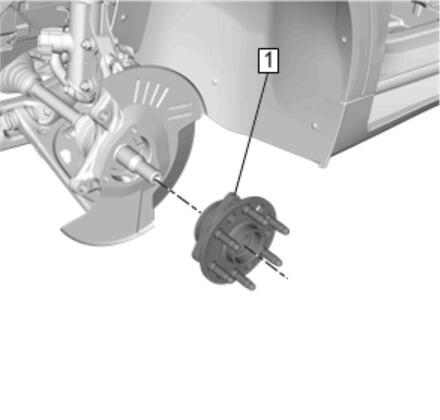

- Install Front Wheel Bearing and Hub Assembly (1)Front Wheel Bearing and Hub Replacement (Left Side, AWD or FWD)Front Wheel Bearing and Hub Replacement (Right Side, AWD)Front Wheel Bearing and Hub Replacement (Right Side, FWD)
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
