Front Fog Lamp Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

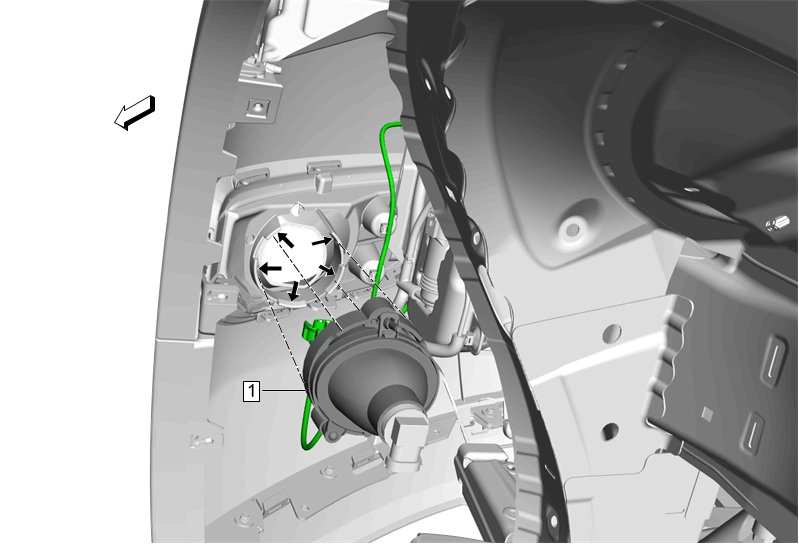

Fig 1: Front Fog Lamp
GM4378915Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Wheelhouse Liner Replacement
1 Front Fog Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Release the retainers.
  3. Transfer components as necessary.
  4. Adjust Front Fog Lamp Fog Lamp Aiming
