Radio Control Switch Replacement - Steering Wheel (Right Front)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

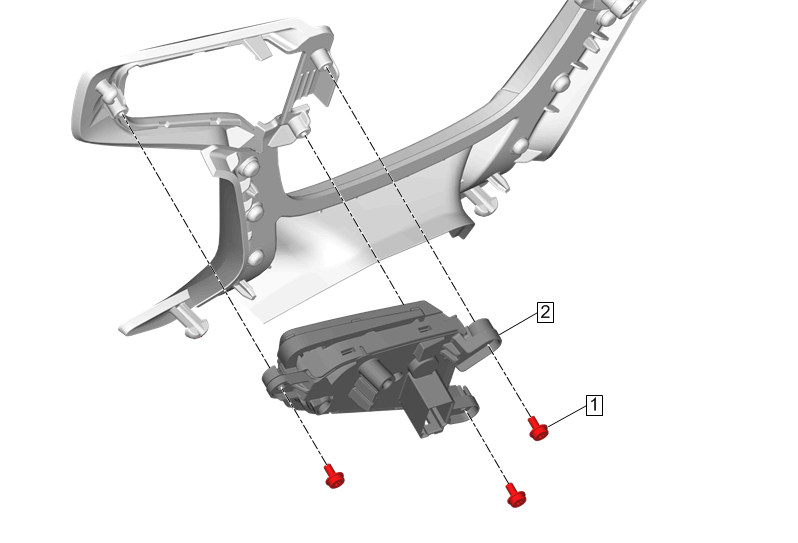

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Steering Wheel Spoke Cover. Refer to Steering Wheel Spoke Cover Replacement |
|
| 1 | Steering Wheel Spoke Cover Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Control Switch - Steering Wheel Procedure Release the retaining tabs and remove the radio control switch from the steering wheel spoke cover. |
