Radio Bracket Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

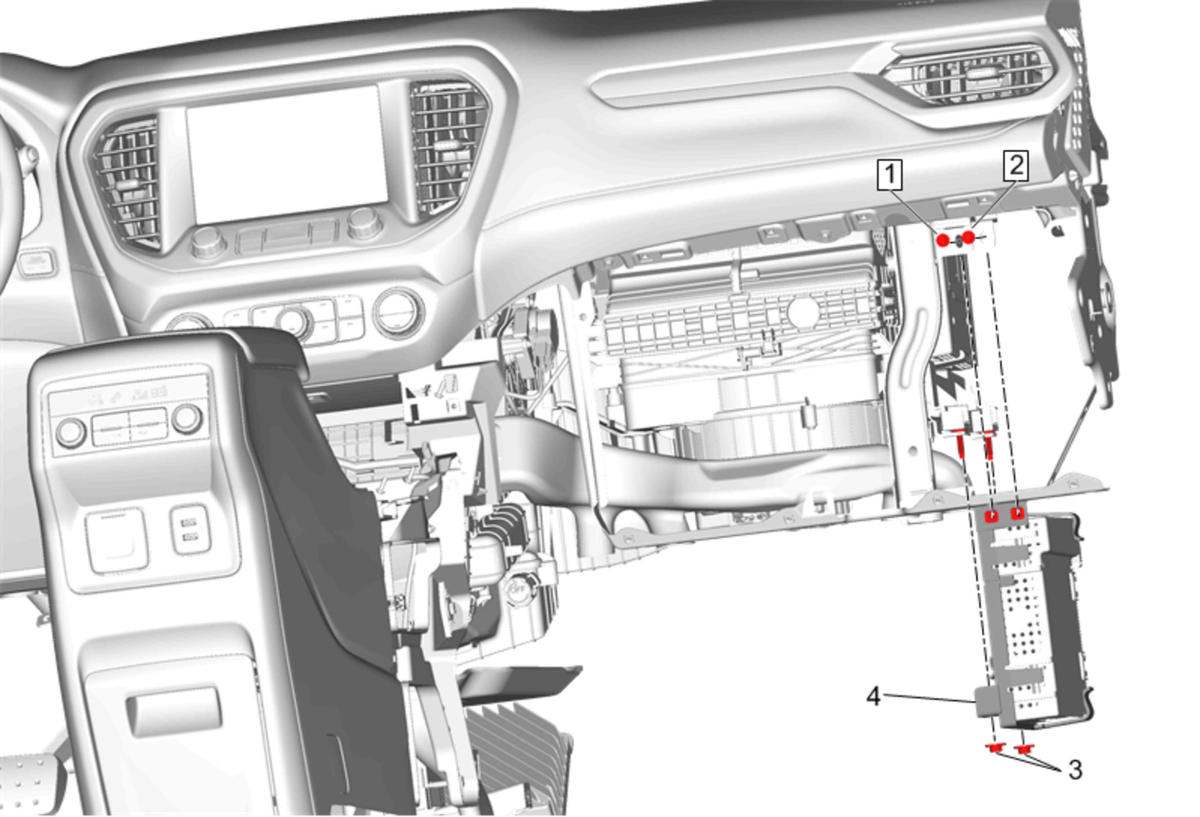

Fig 1: Radio Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Instrument Panel Compartment. Refer to Instrument Panel Compartment Replacement Remove Instrument Panel Insulator - Right Side. Refer to Instrument Panel Insulator Replacement - Right Side
1	Radio Bracket Bolt CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Human Machine Interface Control Module Bracket Bolt Tighten 2.5 N.m (22 lb in)
3	Radio Bracket Nut (Qty: 2) Tighten 9 N.m (80 lb in)
4	Radio Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.
