Front Floor Speaker Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

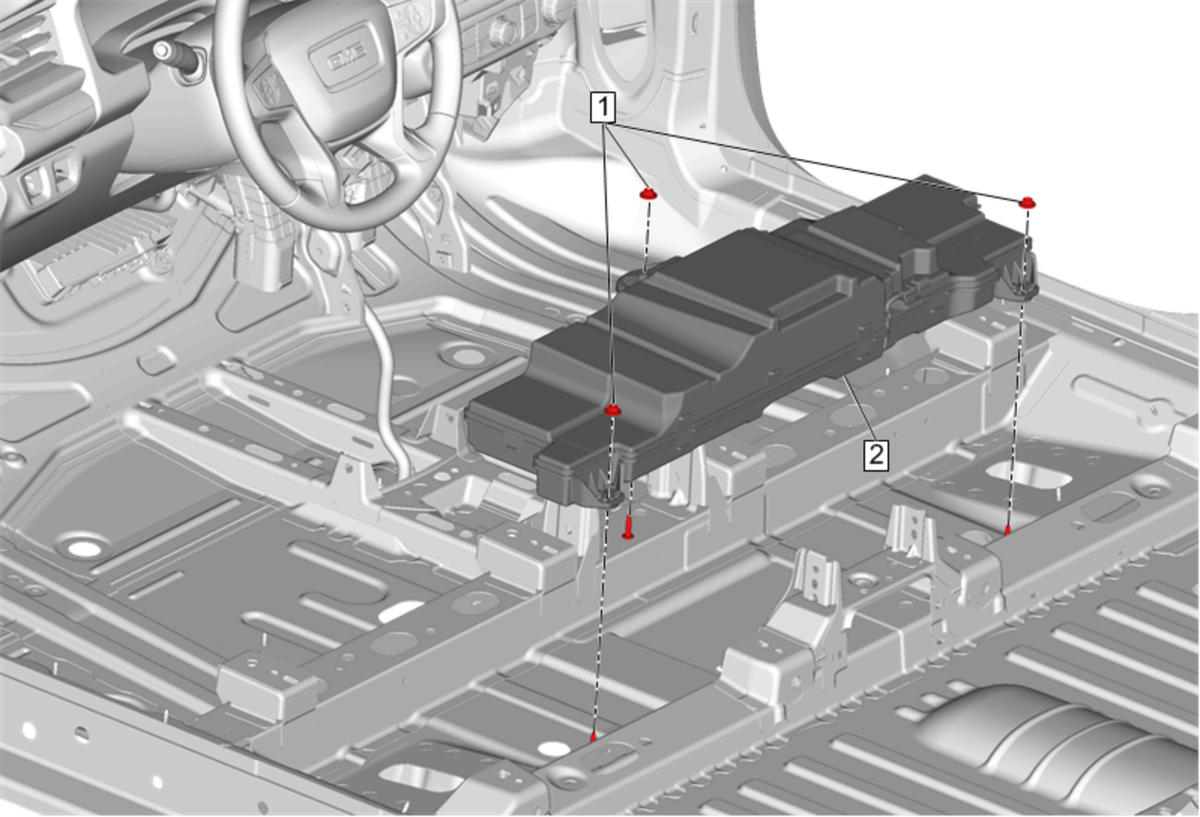

Fig 1: Front Floor Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Floor Rear Air Outlet Duct - Left Side. Refer to Floor Rear Air Outlet Duct Replacement - Left Side Remove Floor Rear Air Outlet Duct - Right Side. Refer to Floor Rear Air Outlet Duct Replacement - Right Side
1	Front Floor Speaker Nut (Qty: 3) CAUTION: Refer to Fastener Caution Tighten 6 N.m (53 lb in)
2	Front Floor Speaker Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Remove Floor Rear Air Outlet Duct - Left Side. Refer to Floor Rear Air Outlet Duct Replacement - Left Side
Remove Floor Rear Air Outlet Duct - Right Side. Refer to Floor Rear Air Outlet Duct Replacement - Right Side

Front Floor Speaker Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution

Tighten
6 N.m (53 lb in)

Front Floor Speaker
Procedure
Disconnect the electrical connector.
