Installation Procedure

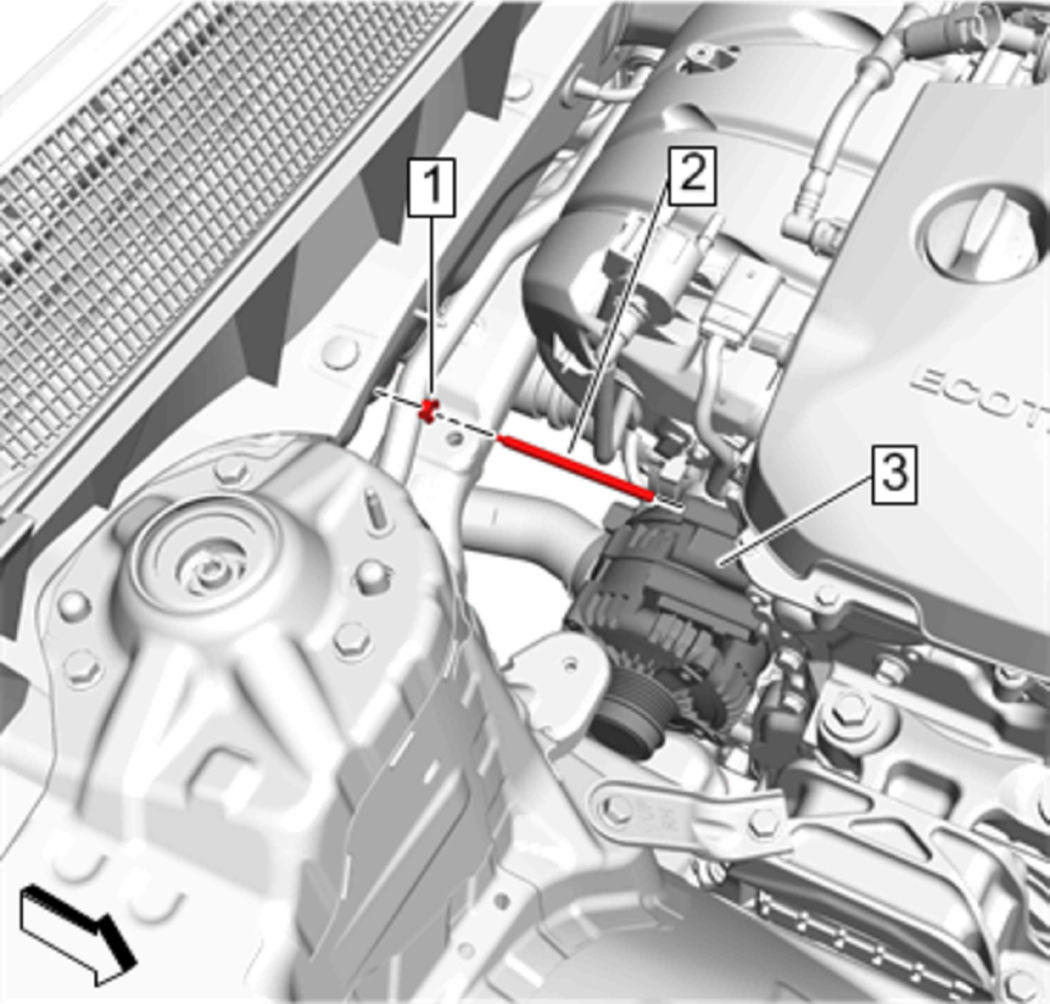

  1. GM4573557

    Generator (3) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. If necessary, install the generator mounting stud. (2) - Tighten 9 N.m (80 lb in)
  3. Generator Nut (1) - Hand tighten

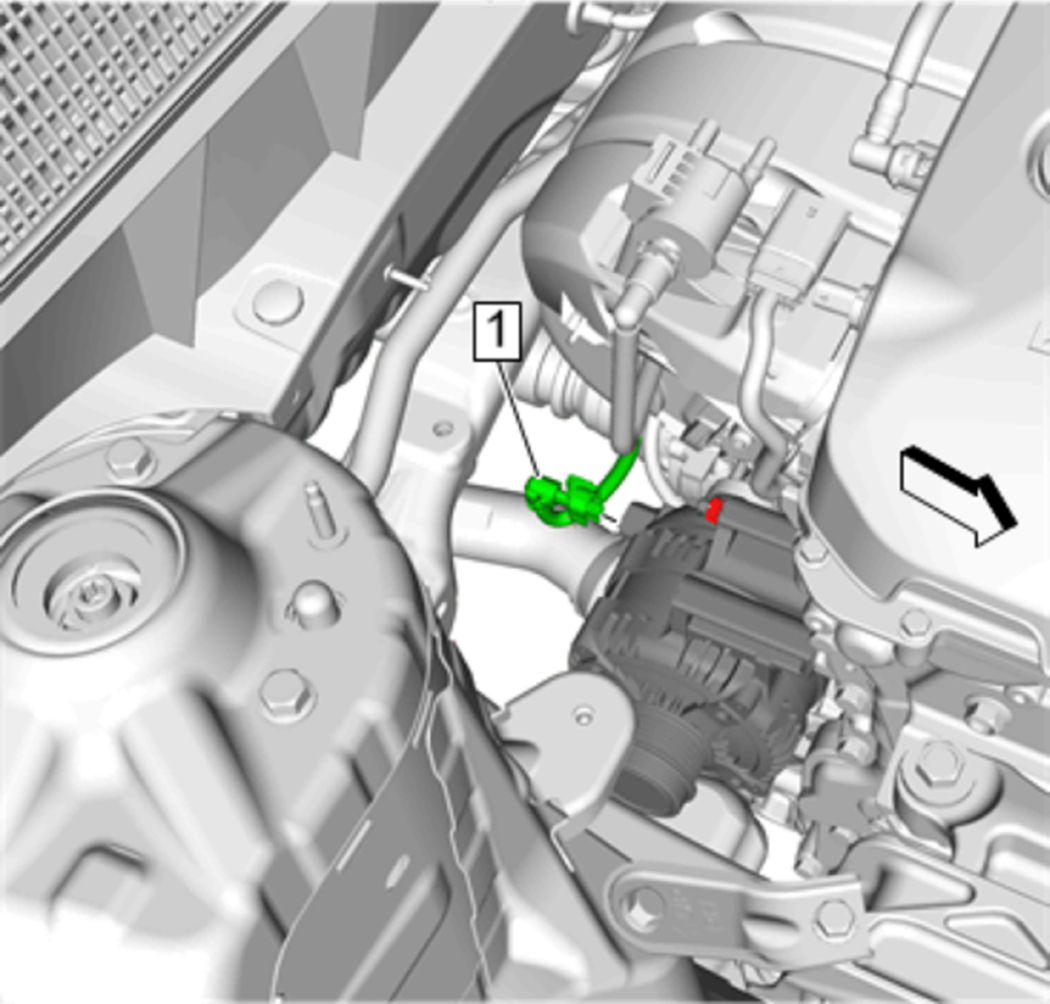

  4. GM4573553

    Electrical Connector (1) - Connect

    5. Fig 1: Drive Belt
    GM4364170Courtesy of GENERAL MOTORS COMPANY

  5. Drive Belt (1) - Install - Drive Belt Replacement

  6. Raise and support the vehicle. Lifting and Jacking the Vehicle

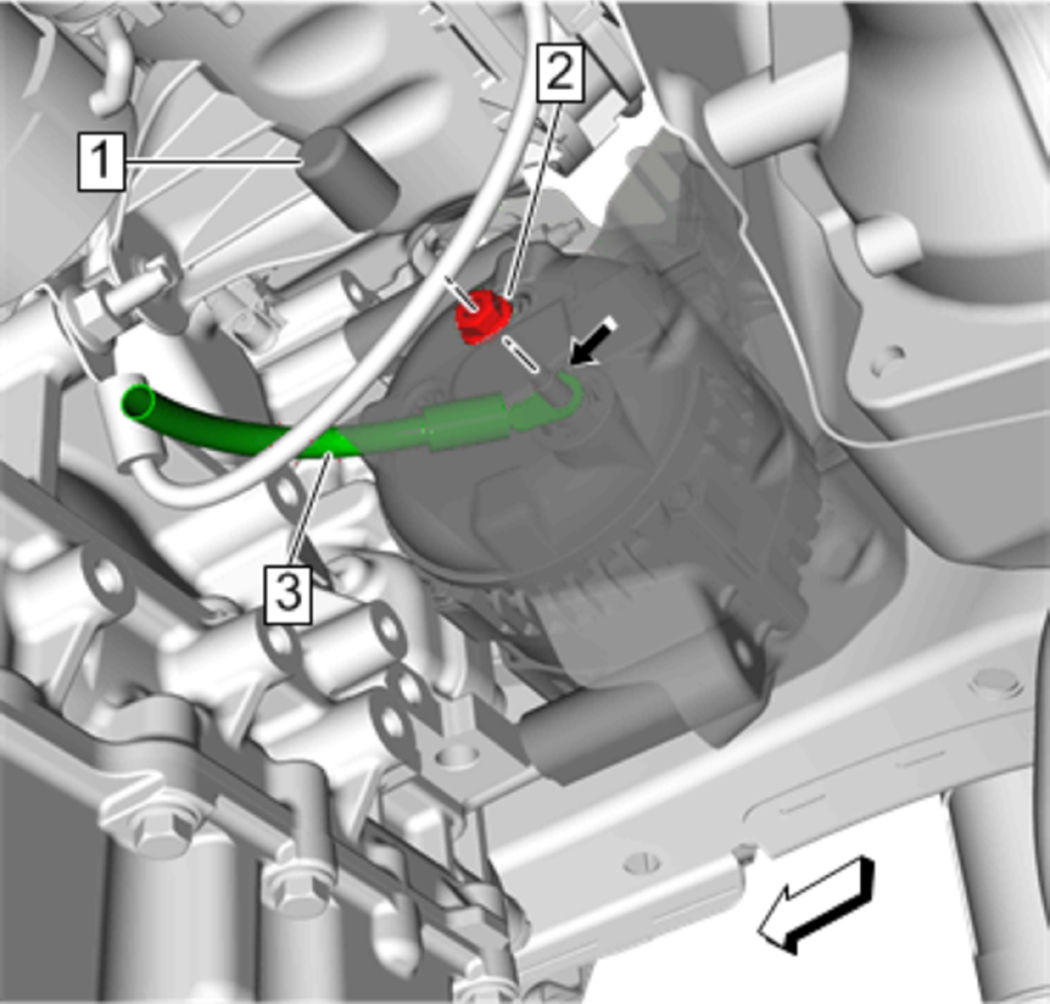

  7. GM4577875
    NOTE:

    Anti-rotation tab is in the 12 o'clock position (arrow).

    Battery Positive Cable (3) - Install

  8. Generator Nut (2) - Install and tighten 15 N.m (11 lb ft)
  9. Protective Cap (1) - Install
  10. Lower the vehicle.

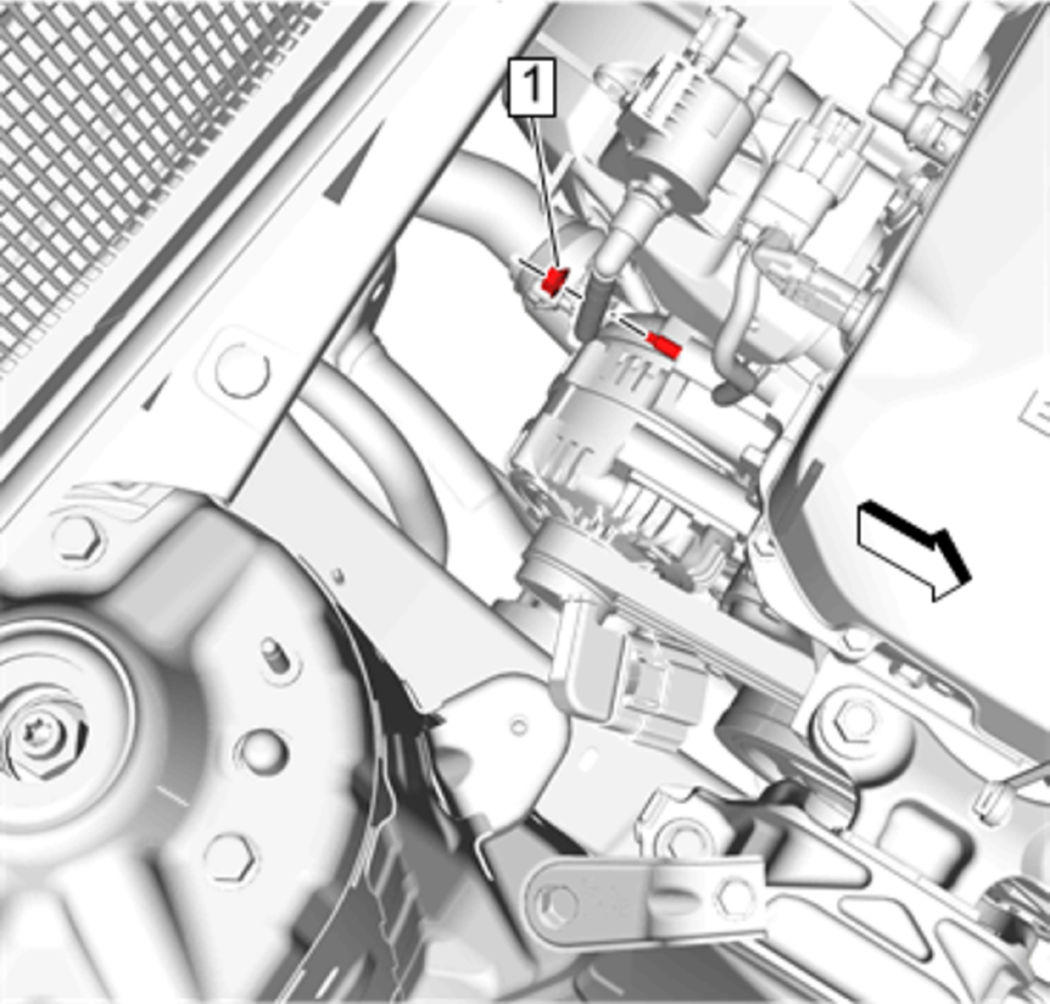

  11. GM4573544

    Remove the generator nut (1).

  12. GM4573536

    Generator Shield (3) - Install - Generator Shield Replacement
