Rear Closure Fixed Handle Applique Replacement

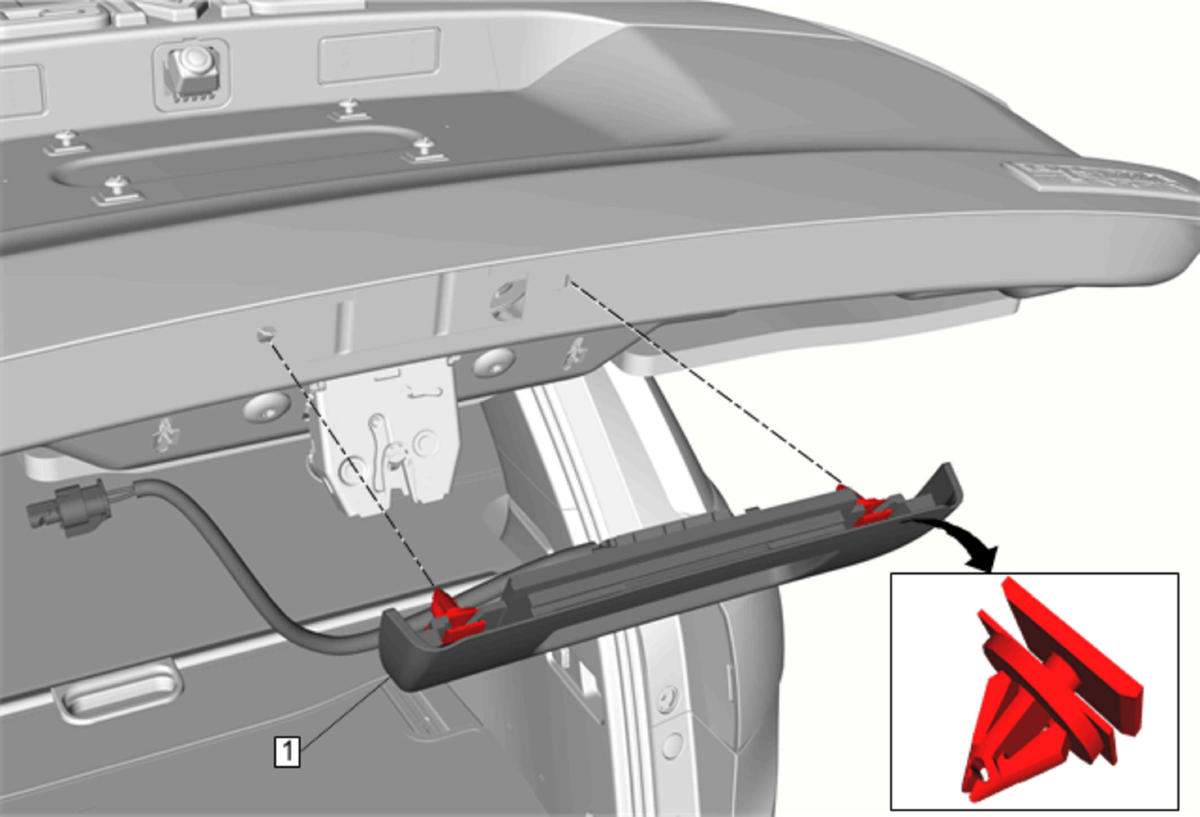

GM4379367
Callout Component Name
Preliminary Procedure
Liftgate Lower Trim Finish Panel Replacement .
1 Rear Closure Fixed Handle Applique

Procedure

  1. Release the retainers.
  2. Disconnect the electrical connector:
