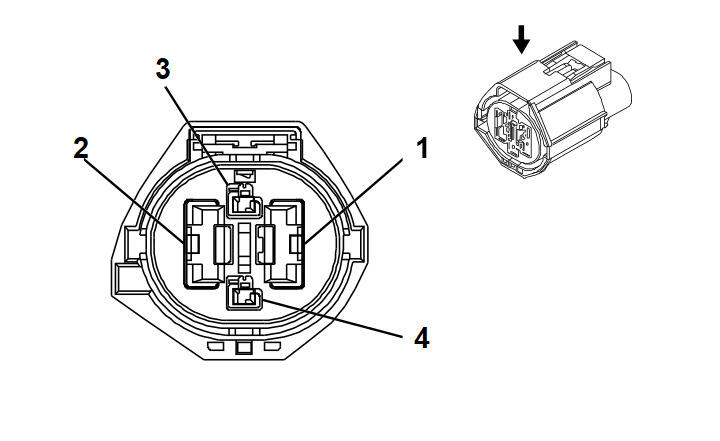

K22 Cooling Fan Control Module
|
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 19181808
- Service Connector: Service by Harness
- Description: 4-Way F 1.5, 9.5 Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
10 |
RD/GN |
242 |
Battery Positive Voltage |
II |
- |
| 2 |
10 |
BK |
450 |
Ground |
II |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.5 |
WH |
2368 |
Cooling Fan Control Signal |
I |
- |
