3rd Row Center Seat Belt Buckle Replacement

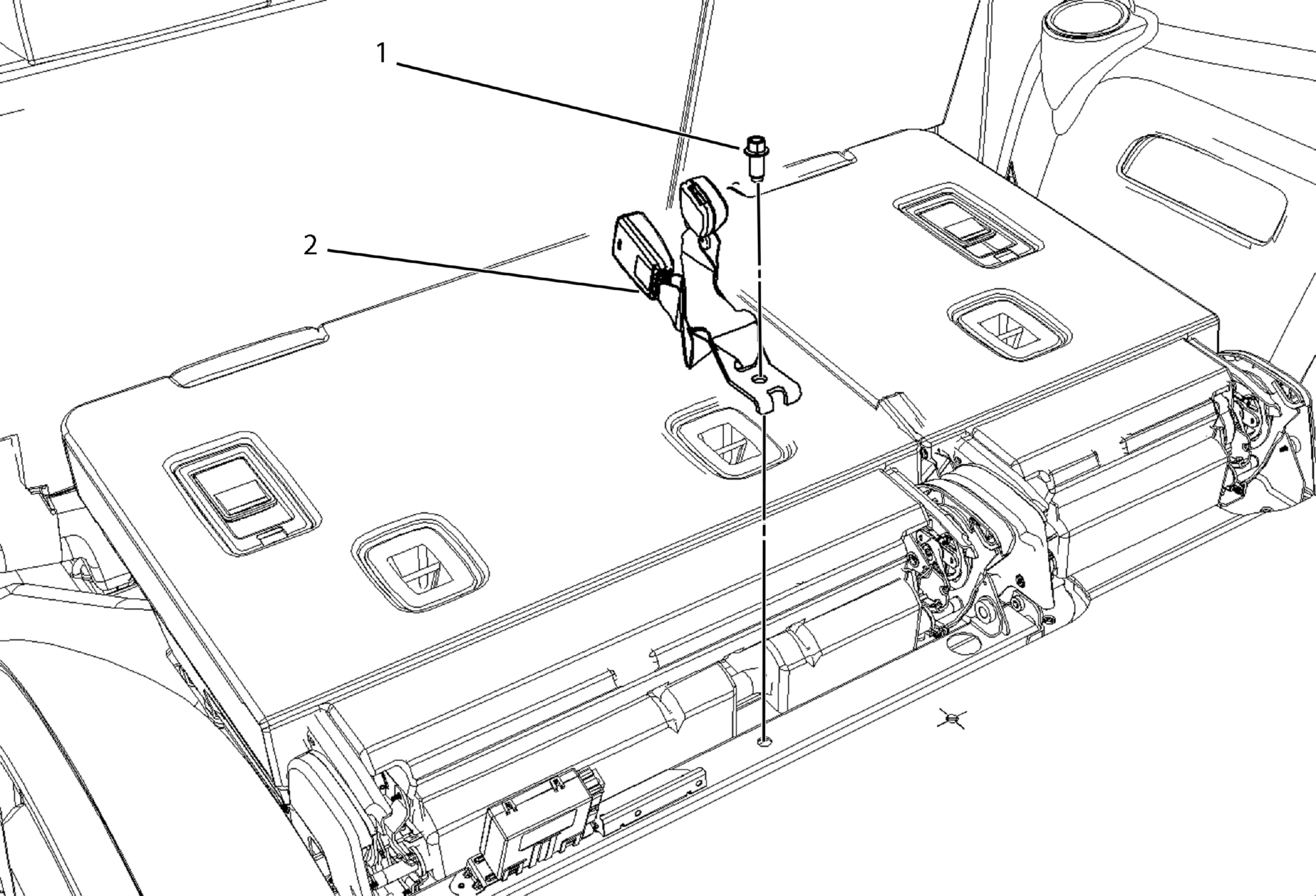

Fig 1: 3rd Row Center Seat Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	3rd Row Rear Seat Center Belt Anchor Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	3rd Row Rear Seat Center Belt Buckle Assembly Procedure Feed the seat belt buckle anchor through the opening in the 3rd row center seat cushion. Position the tabs on the seat belt buckle anchor over and behind the 3rd row seat frame.

Callout

Component Name

3rd Row Rear Seat Center Belt Anchor Bolt

CAUTION:

Tighten
45 N.m (33 lb ft)

3rd Row Rear Seat Center Belt Buckle Assembly

Procedure

Feed the seat belt buckle anchor through the opening in the 3rd row center seat cushion.
Position the tabs on the seat belt buckle anchor over and behind the 3rd row seat frame.
