Installation Procedure

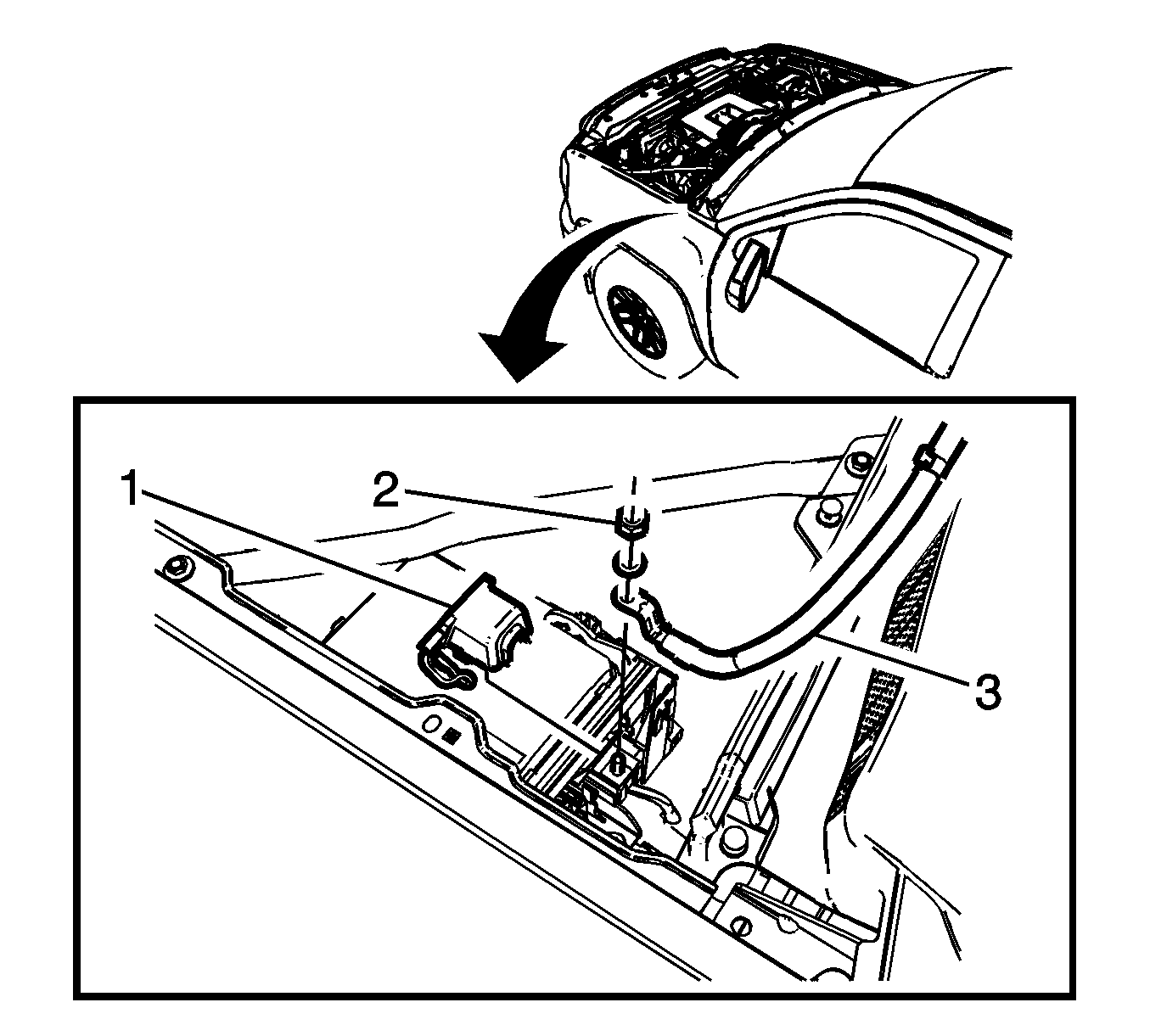

    Fig 1: Underhood Fuse Block Battery Positive Cable Cover
    GM2964102Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery positive cable (3) to the underhood fuse block stud and tighten the fastener (2) to 15 N.m (133 lb in).
  2. Install the underhood fuse block battery positive cable cover (1).

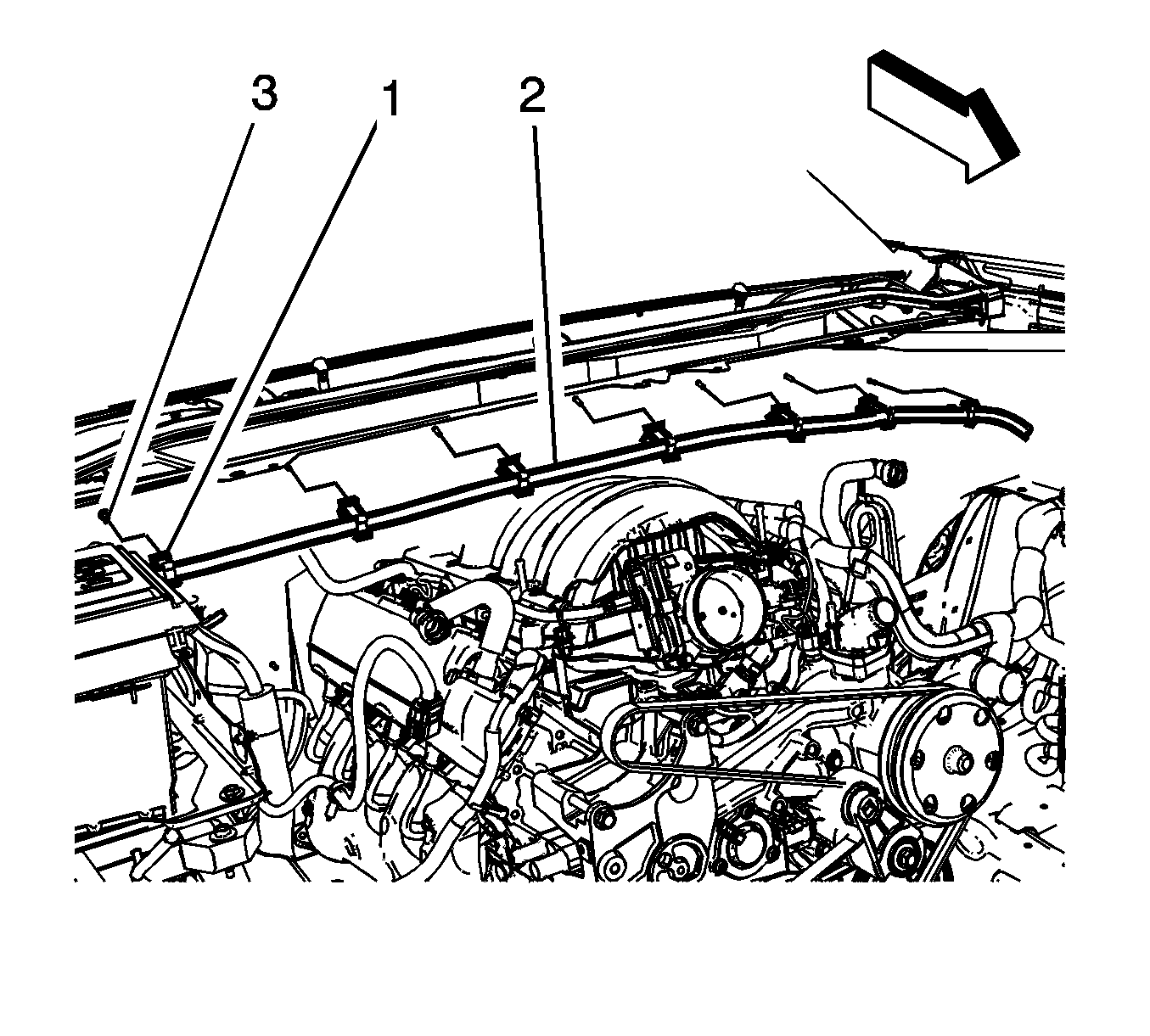

    3. Fig 2: Battery Positive Cable Retainers And Front Plenum Panel
    GM2964103Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery positive cable (2), along the plenum front panel (3), with the battery positive cable retainers (1).

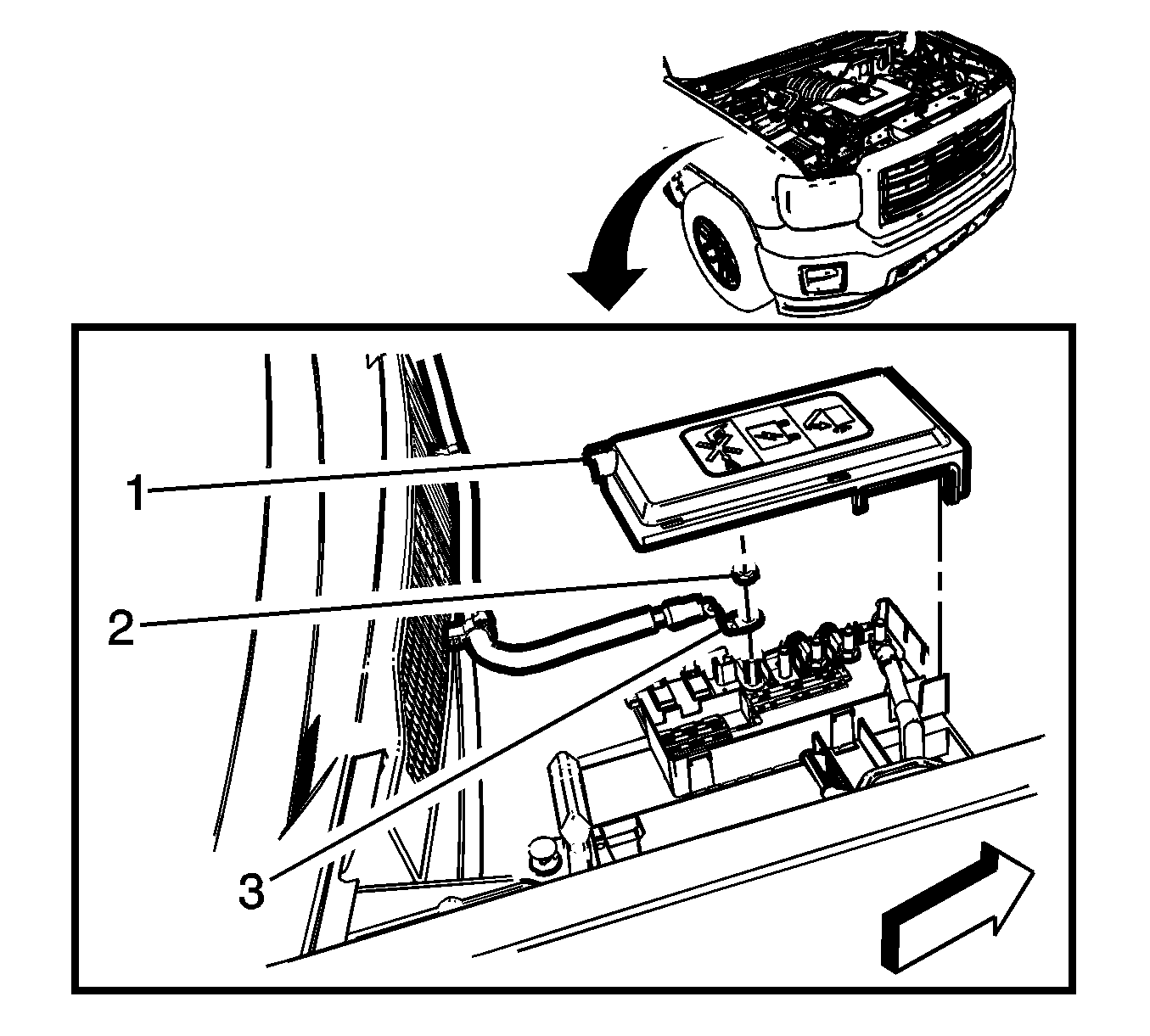

    4. Fig 3: Battery Fuse Block Cover
    GM2964105Courtesy of GENERAL MOTORS COMPANY
  4. Install the battery positive cable (3) to the battery fuse block stud and tighten the fastener (2) to 12 N.m (106 lb in).
  5. Install the battery fuse block cover (1).
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Dual Battery) Battery Negative Cable Disconnection and Connection (Single Battery) .
