Installation Procedure

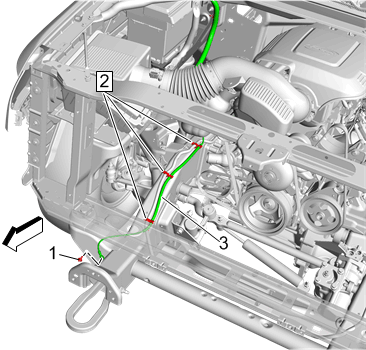

    Fig 1: Retainer, Battery Negative Cable And Battery Negative Cable Ground Bolt
    GM4852898Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Negative Cable (3)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Battery Negative Cable Ground Bolt (1) and tighten 9 N.m (80 lb in)
  3. Engage Retainer Clip (2)

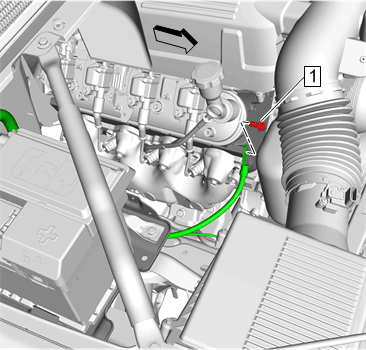

    4. Fig 2: Battery Negative Cable Ground Bolt
    GM4852895Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Negative Cable Ground Bolt (1) and tighten 45 N.m (33 lb ft)

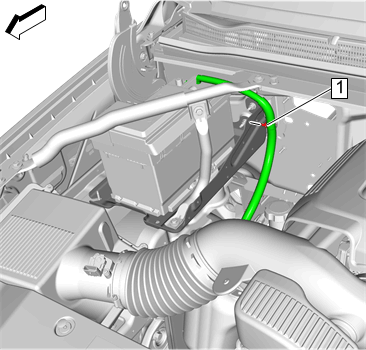

    5. Fig 3: Retainer
    GM4852892Courtesy of GENERAL MOTORS COMPANY
  5. Engage Retainer (1)
  6. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Dual Battery) Battery Negative Cable Disconnection and Connection (Single Battery)
