Outside Rearview Mirror Remote Control Switch Replacement (Cadillac)

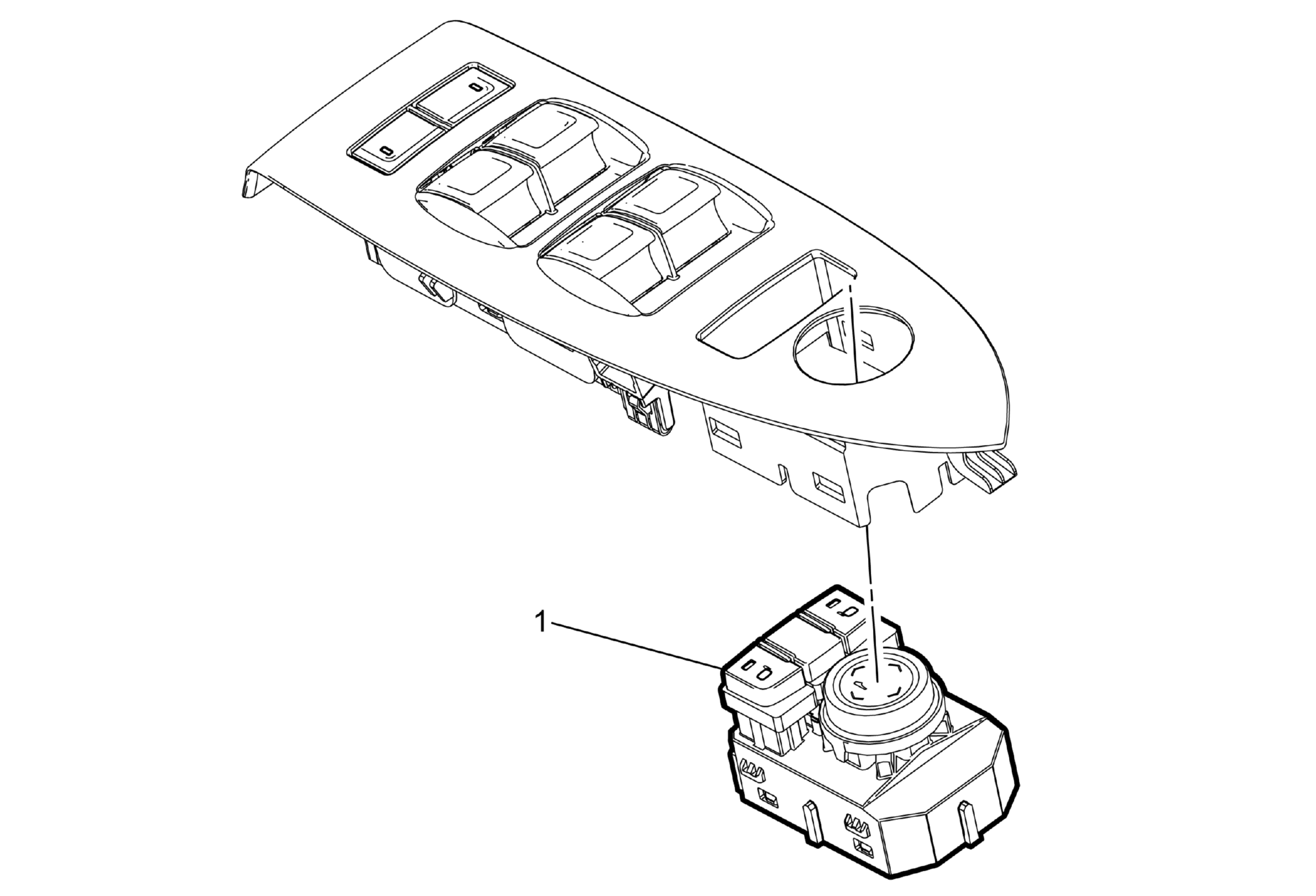

Fig 1: Outside Rearview Mirror Remote Control Switch (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door accessory switch mount plate - driver side. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Driver Side (Cadillac) .
1	Outside Rearview Mirror Remote Control Switch Assembly Procedure Release tabs on switch to remove from front side door accessory switch mount plate - driver side. Refer to Control Module References for programming and set up procedures, if required.

Callout

Component Name

Preliminary Procedure
Remove the front side door accessory switch mount plate - driver side. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Driver Side (Cadillac) .

Outside Rearview Mirror Remote Control Switch Assembly

Procedure

Release tabs on switch to remove from front side door accessory switch mount plate - driver side.
Refer to Control Module References for programming and set up procedures, if required.
