Front Side Door Window Control Switch Replacement (Chevrolet, GMC)

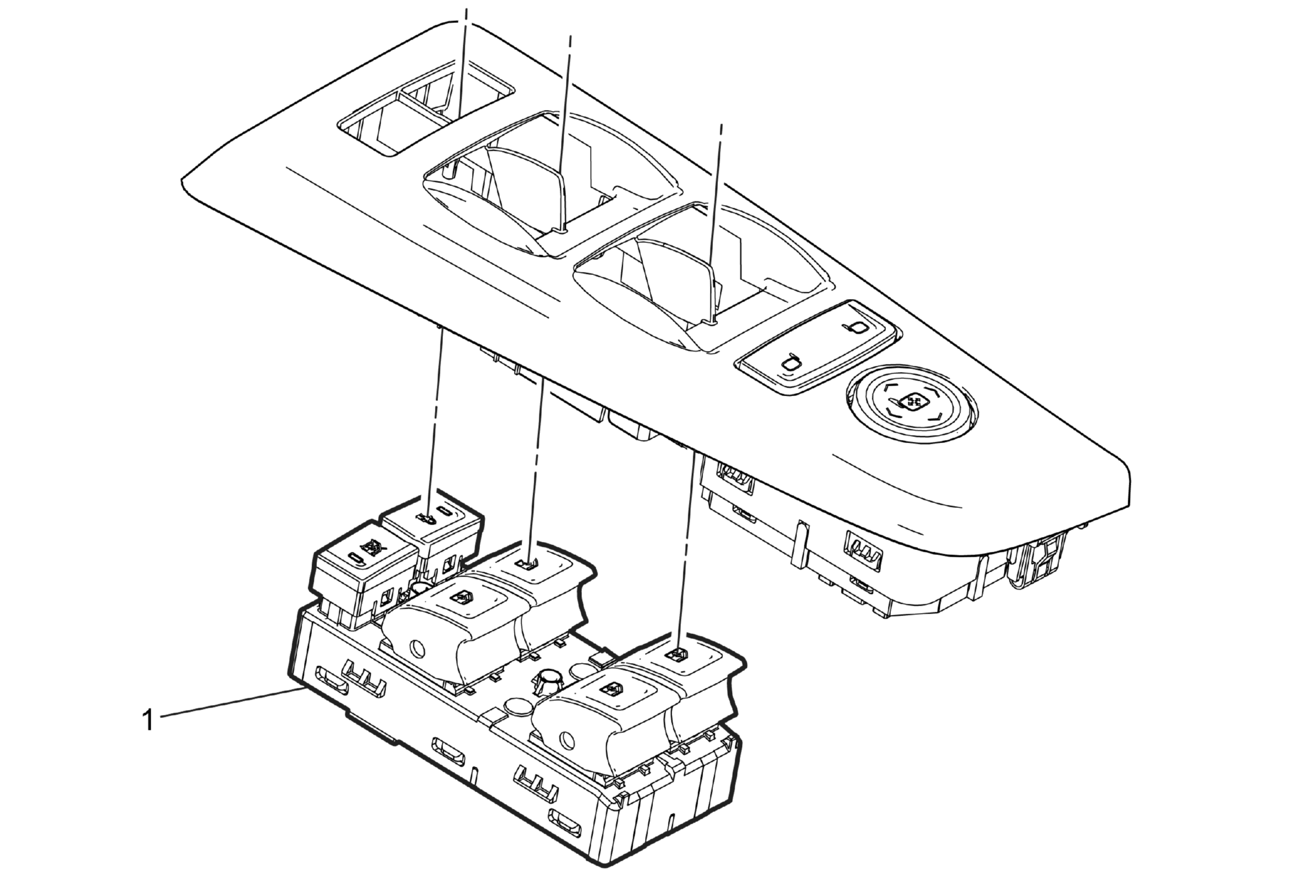

Fig 1: Front Side Door Window Control Switch (Chevrolet, GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door accessory switch mount plate - driver side. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Driver Side (Chevrolet, GMC) .
1	Front Side Door Window Control Switch Assembly Procedure Release tabs on switch to remove from front side door accessory switch mount plate - driver side. Refer to Control Module References for programming and set up procedures, if required.

Callout

Component Name

Preliminary Procedure
Remove the front side door accessory switch mount plate - driver side. Refer to Front Side Door Accessory Switch Mount Plate Replacement - Driver Side (Chevrolet, GMC) .

Front Side Door Window Control Switch Assembly

Procedure

Release tabs on switch to remove from front side door accessory switch mount plate - driver side.
Refer to Control Module References for programming and set up procedures, if required.
