Installation Procedure

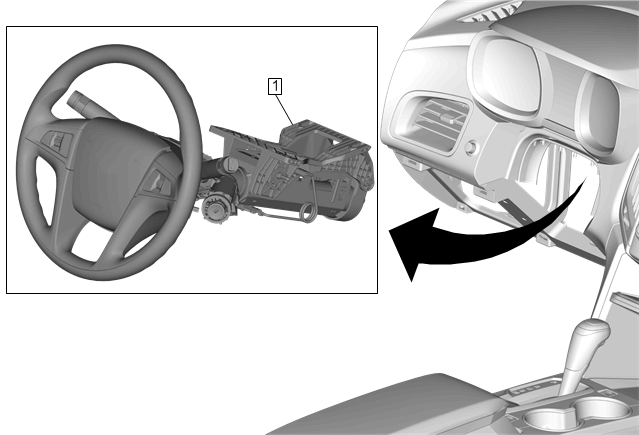

    Fig 1: Steering Column Assembly
    GM4110020Courtesy of GENERAL MOTORS COMPANY
  1. Position the steering column (1) in the vehicle.

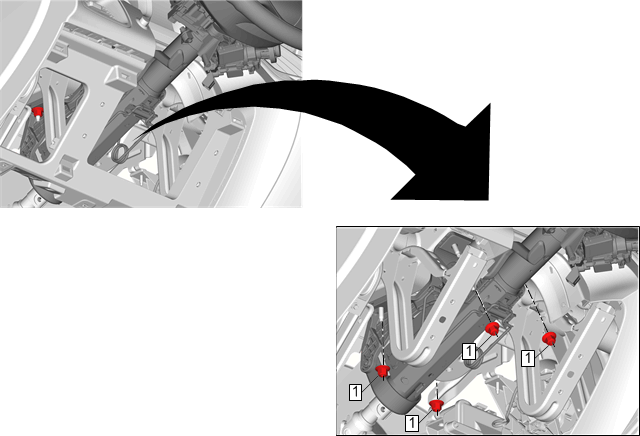

    2. Fig 2: Steering Column Retaining Nuts
    GM4110017Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install Steering Column Nut (1) and tighten 22 N.m (16 lb ft)
  3. Connect the steering column electrical connectors.
  4. Install Intermediate Steering Shaft@Steering Column Intermediate Steering Shaft Replacement
  5. Install Instrument Panel Insulator Panel - Left Side Instrument Panel Insulator Panel Replacement - Left Side (Equinox)Instrument Panel Insulator Panel Replacement - Left Side (Terrain)
  6. Install Driver Knee Bolster Reinforcement Driver Knee Bolster Reinforcement Replacement (Equinox)Driver Knee Bolster Reinforcement Replacement (Terrain)
  7. Install Driver Knee Bolster Panel Driver Knee Bolster Panel Replacement (Equinox)Driver Knee Bolster Panel Replacement (Terrain)
  8. Enable the SIR System. SIR Disabling and Enabling
  9. Center the steering angle sensor. Steering Wheel Angle Sensor Centering
