Transfer Case Disassembled View

WARNING: This page is about a different variant/trim than selected.

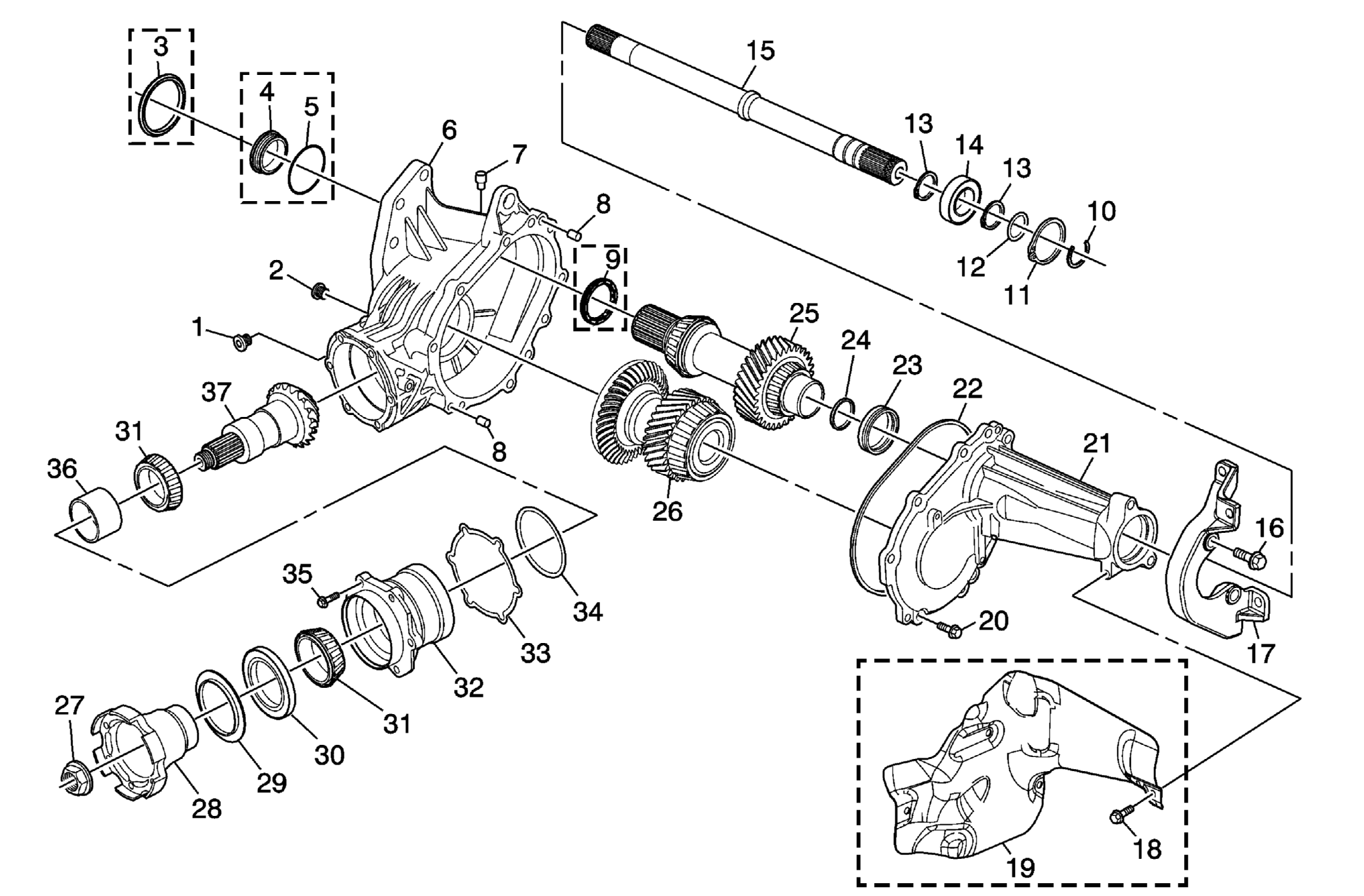

Fig 1: Transfer Case Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transfer Case Drain Plug
2	Transfer Case Fill Plug
3	Transfer Case Input Shaft Face Seal - RPO MHC Only
4	Transfer Case Input Shaft Seal - Left - RPO MH4 Only
5	Transfer Case O-ring Seal - RPO MH4 Only
6	Transfer Case - Left
7	Transfer Case Vent Assembly
8	Transfer Case Half Locating Pin (Qty: 2)
8	Transfer Case Half Locating Pin (Qty: 2)
9	Transfer Case Input Shaft Seal - Left - RPO MHC Only
10	Half Shaft Retainer
11	Front Wheel Drive Retainer
12	O-ring
13	Front Wheel Drive Intermediate Shaft Bearing Retainer (Qty: 2)
13	Front Wheel Drive Intermediate Shaft Bearing Retainer (Qty: 2)
14	Front Wheel Drive Intermediate Shaft Bearing Assembly
15	Front Wheel Drive Intermediate Shaft
16	Transfer Case Mounting Bracket Bolt (Qty: 6)
17	Transfer Case Mounting Bracket
18	Transfer Case Heat Shield Bolt (Qty: 3) - Model Dependent
19	Transfer Case Heat Shield - Model Dependent
20	Transfer Case Half Bolt (Qty: 12)
21	Transfer Case - Right
22	Transfer Case Seal
23	Transfer Case Input Shaft Seal - Right
24	Front Drive Axle Intermediate Shaft Seal Assembly
25	Transfer Case Input Shaft
26	Transfer Case Rear Output Drive Shaft
27	Transfer Case Rear Output Shaft Nut
28	Transfer Case Rear Output Shaft Flange
29	Transfer Case Rear Output Shaft Oil Slinger
30	Transfer Case Rear Output Shaft Seal
31	Transfer Case Rear Output Shaft Bearing Assembly (Qty: 2)
31	Transfer Case Rear Output Shaft Bearing Assembly (Qty: 2)
32	Transfer Case Rear Output Shaft Housing
33	Transfer Case Rear Output Shim
34	Transfer Case Rear Output Shaft Housing Seal O-ring
35	Transfer Case Rear Output Shaft Housing Bolt (Qty: 6)
36	Transfer Case Rear Output Shaft Bearing Spacer
37	Transfer Case Rear Output Shaft
