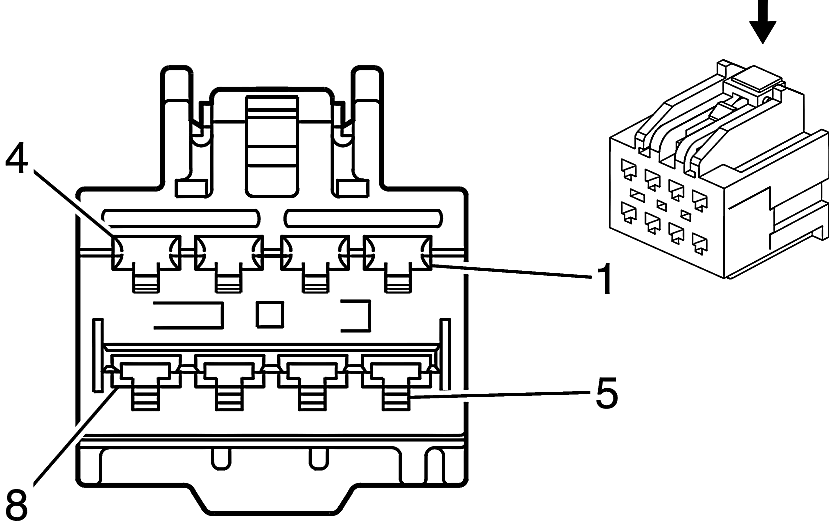

K40 Seat Memory Control Module X4
|
|
Connector Part Information
- Harness Type: Driver Seat Cushion
- OEM Connector: 89047379
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 2.8 Series (L-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1 |
RD/WH |
5140 |
Battery Positive Voltage |
I |
AAB |
| 2 |
0.35 |
BU/WH |
5978 |
Memory Switch Low Reference |
I |
AAB |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
3 |
RD/BK |
1342 |
Battery Positive Voltage |
I |
AAB |
| 6 |
3 |
BK |
750 |
Ground |
I |
AAB |
| 7 |
3 |
GN |
286 |
Driver Power Seat Front Vertical Motor Up Control |
I |
AAB |
| 8 |
3 |
BU |
287 |
Driver Power Seat Front Vertical Motor Down Control |
I |
AAB |
