Generator Replacement (LEA)

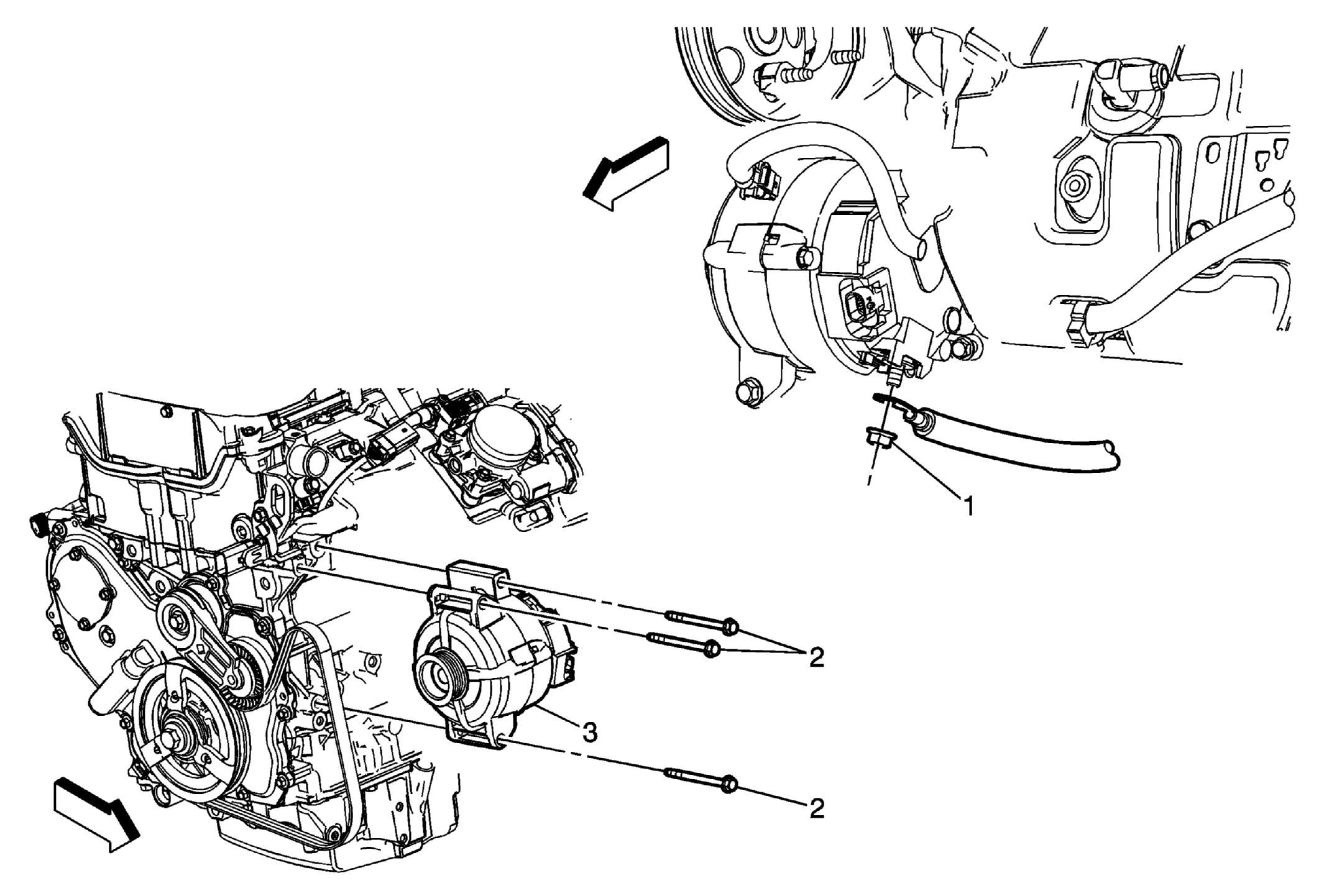

Fig 1: Generator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the drive belt. Refer to Drive Belt Replacement . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . Disconnect the engine harness generator connector.
1	Generator Battery Positivel Nut CAUTION: Refer to Fastener Caution Tighten 20 N.m (15 lb ft)
2	Generator Bolt (QTY: 3) Tighten 22 N.m (16 lb ft)
3	Generator
