Battery Tray Support Replacement

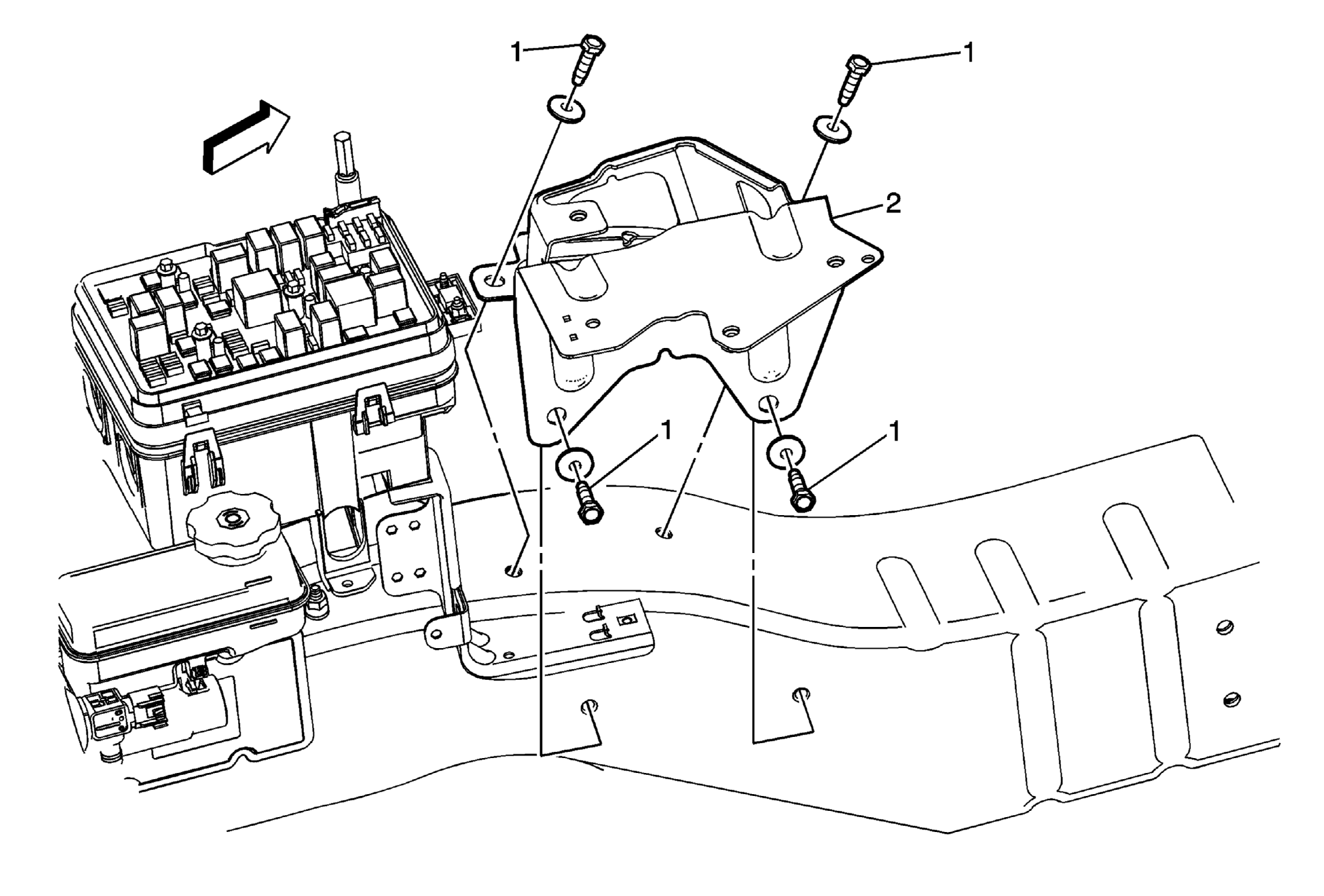

Fig 1: Battery Tray Support

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable.Refer to Battery Negative Cable Disconnection and Connection . Remove the positive battery cable.Refer to Battery Positive Cable Replacement (LEA) Battery Positive Cable Replacement (LFX) Remove the battery.Refer to Battery Replacement Remove the battery tray.Refer to Battery Tray Replacement
1	Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft).
2	Battery Tray Support Bracket

Callout

Component Name

Preliminary Procedure

Bolt (Qty: 4)

CAUTION:

Tighten
22 N.m (16 lb ft).

Battery Tray Support Bracket
