Battery Heat Shield Replacement

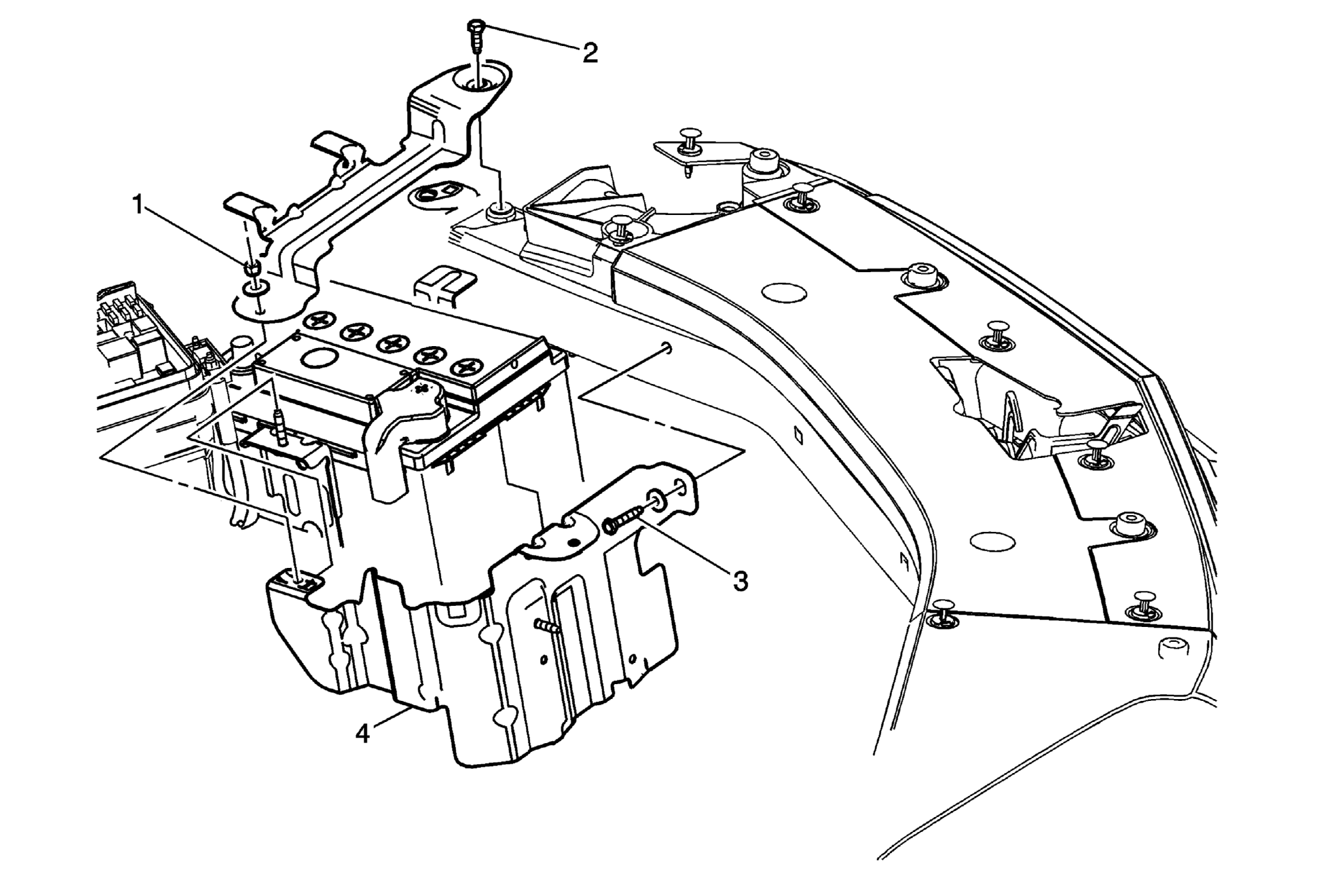

Fig 1: Battery Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia opening cover. Refer to Front Bumper Fascia Opening Cover Replacement (Terrain)Front Bumper Fascia Opening Cover Replacement (Equinox) Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the engine control module (ECM). Refer to Engine Control Module Replacement . Remove the air conditioning compressor hose retaining nut from the side of the battery heat shield and reposition the retaining clamp.
1	Nut WARNING: Refer to Exhaust Service Warning . CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in).
2	Bolt Tighten 9 N.m (80 lb in).
3	Bolt Tighten 9 N.m (80 lb in).
4	Battery Heat Shield
