Front Side Door Window Replacement

Preliminary Procedures

1. Place the window in the up down position.
2. Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement .
3. Remove the front side door garnish molding. Refer to Front Side Door Garnish Molding Replacement .
4. Remove the front side door inner sealing strip. Refer to Front Side Door Window Inner Sealing Strip Replacement .

Procedure

1. Pull the front side door window weatherstrip from the channel.
2. Apply masking tape to the applique to protect the finish.
3. Remove the front side door water deflector.

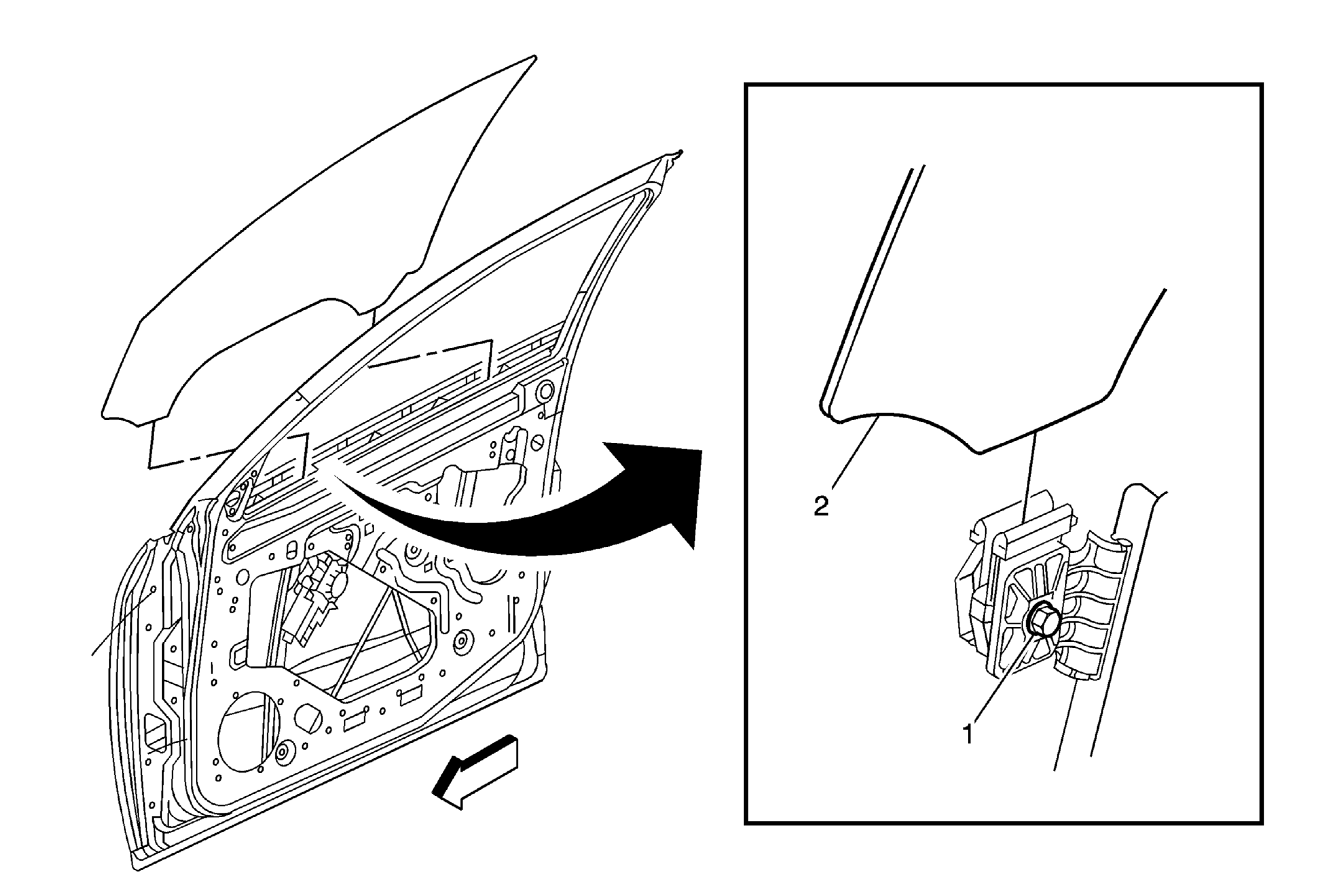

4. Position the window in the full up to access the front side door window regulator guide nuts.
5. Tape the window in place, before remove lower the window regulator.

Procedure

1. Remove the tape from the window.
2. Install the window to left and right side of the channel before operating the window.
3. Inspect the operation of the window before installing the door trim panel.
