Headliner Components

Headliner Components

Items
1. E37R Dome/Reading Lamps - Rear E37R Dome/Reading Lamps - Rear
2. B77R Radio Volume Compensator Interior Noise Microphone - Rear (VQN) B77R Radio Volume Compensator Interior Noise Microphone - Rear
3. M69 Sunroof Motor (CF5)
4. E37M Dome/Reading Lamps - Middle E37M Dome/Reading Lamps - Middle
5. E37EL Dome/Reading Lamps - Front Overhead Console Left
6. S12 Dome Lamp Switch S12 Dome Lamp Switch
7. B24 Cellular Phone Microphone (UE1 or UHQ or UFU) B24 Mobile Telephone Microphone
8. S72 Sunroof Switch (CF5) S72 Sunroof Switch
9. S45B Liftgate Control Switch - Interior (TB5) S45B Liftgate Control Switch - Interior
10. S88 Sunroof Tilt Switch (CF5) S88 Sunroof Tilt Switch
11. E37ER Dome/Reading Lamps - Front Overhead Console Right
12. E1L Accent Lamp - Overhead Console (LT or LTZ or SLE2 or SLT)
13. P14 Passenger Air Bag Disabled Indicator P14 Passenger Air Bag Disabled Indicator
14. A3R Sunshade - Right A3R Sunshade - Right
15. A10 Inside Rearview Mirror A10 Inside Rearview Mirror
16. A3L Sunshade - Left A3L Sunshade - Left
17. B77F Radio Volume Compensator Interior Noise Microphone - Front (VQN) B77F Radio Volume Compensator Interior Noise Microphone - Front

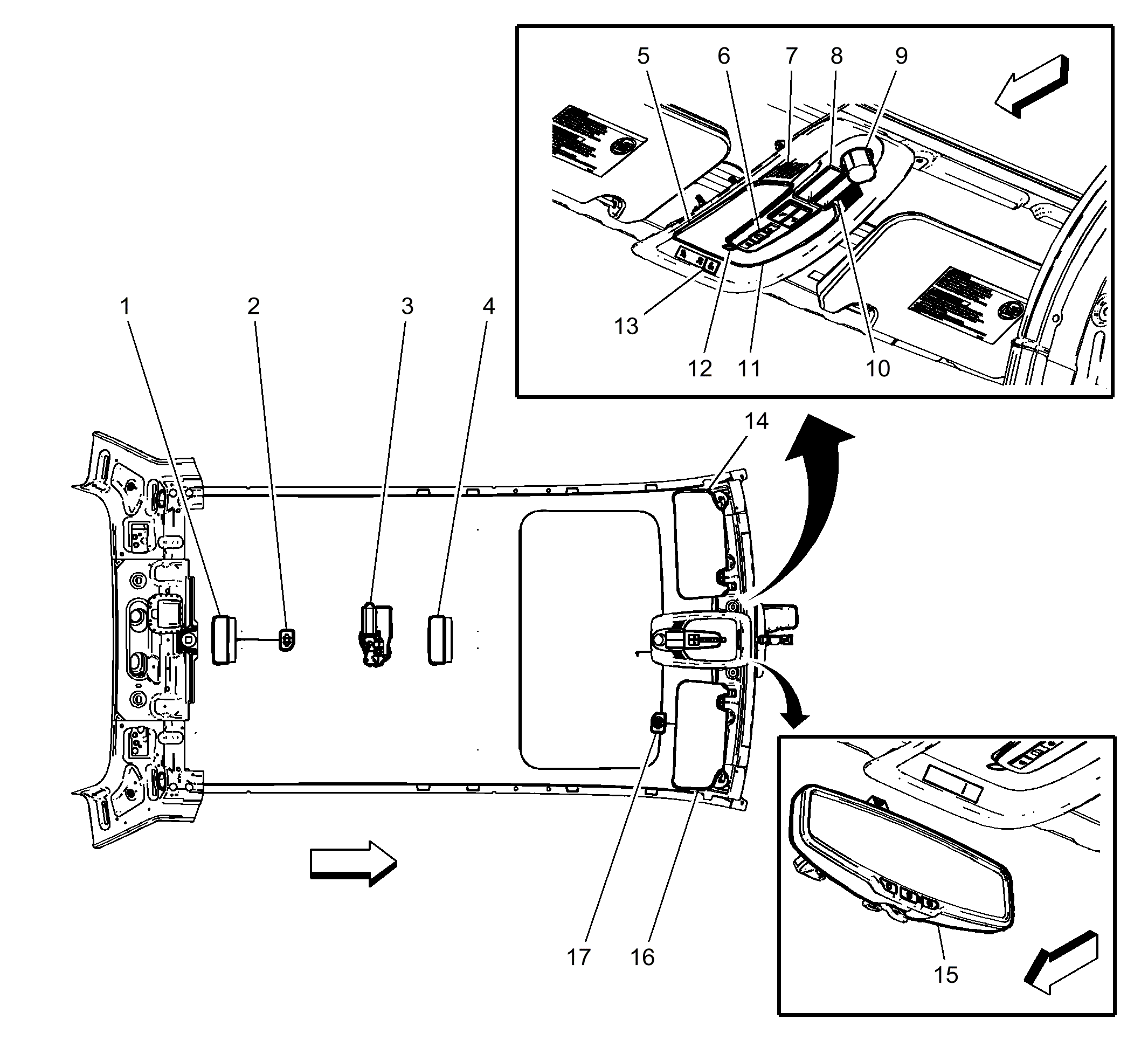

Fig 1: Headliner Components
GM2910259Courtesy of GENERAL MOTORS COMPANY
