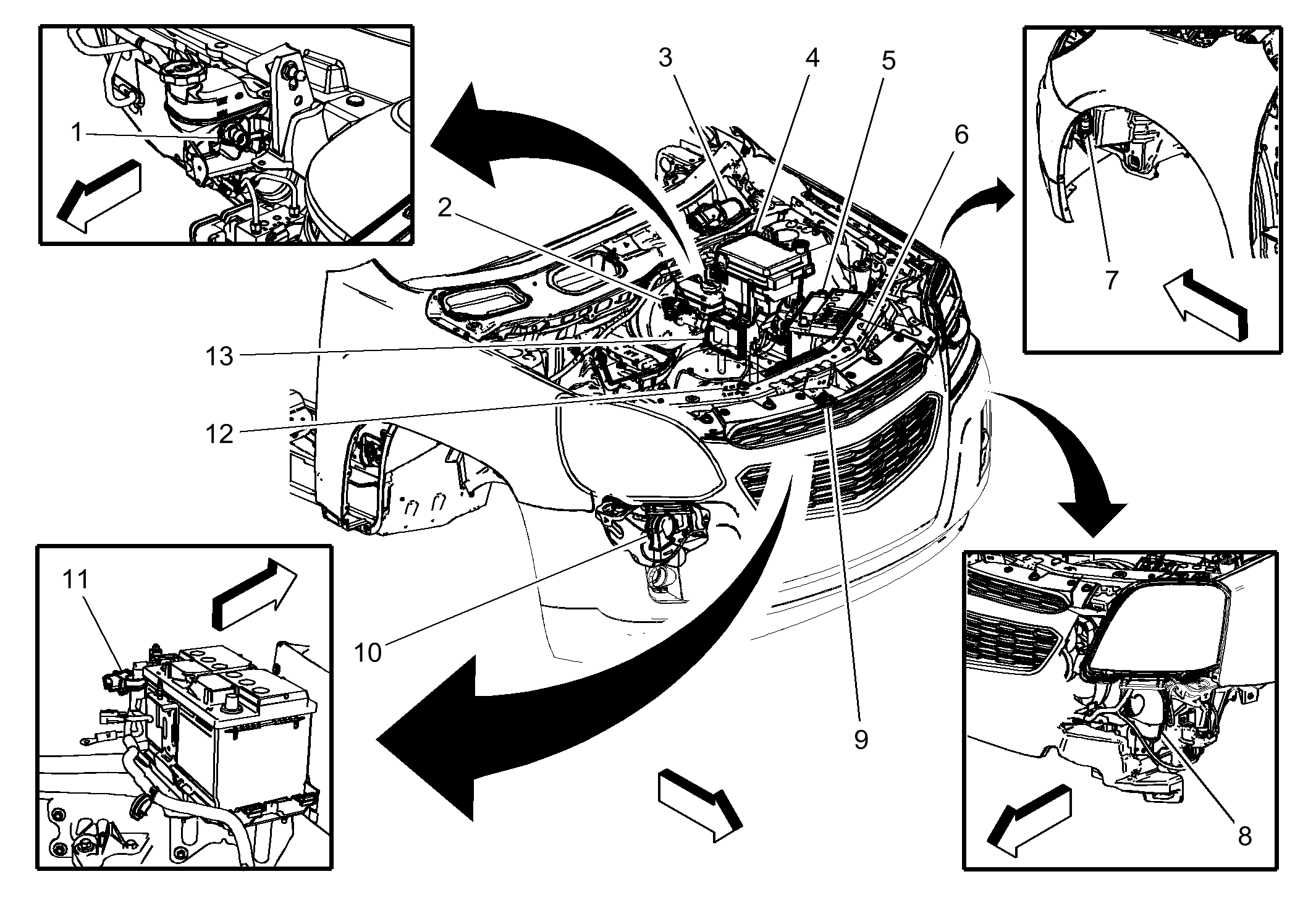

Engine Compartment Components (3 of 3)
Engine Compartment Components (3 of 3)
| Items |
|---|
| 1. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
| 2. B19B Brake Booster Vacuum Sensor (LFX) B19B Brake Booster Vacuum Sensor |
| 3. M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 4. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5X50A Fuse Block - Underhood X6 |
| 5. C1 Battery C1 Battery X1 (+) |
| 6. B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front |
| 7. G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 8. P12B Horn - Low Note P12B Horn - Low Note |
| 9. B55 Hood Ajar Switch (BTV) B55 Engine Hood Switch |
| 10. P12A Horn - High Note P12A Horn - High Note |
| 11. B18 Battery Current Sensor B18 Battery Current Sensor |
| 12. B63RF Side Impact Sensor - Right Front B63RF Side Impact Sensor - Right Front |
| 13. K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
