Engine Compartment Components (1 of 3)

Engine Compartment Components (1 of 3)

Items
1. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor
2. K20 Engine Control Module K20 Engine Control Module X1 (LEA)K20 Engine Control Module X2 (LEA)
3. M9 Brake Booster Pump Motor M9 Brake Booster Pump Motor
4. B99 Steering Wheel Angle Sensor B99 Steering Wheel Angle Sensor
5. K43 Power Steering Control Module (LEA) K43 Power Steering Control Module X1K43 Power Steering Control Module X2

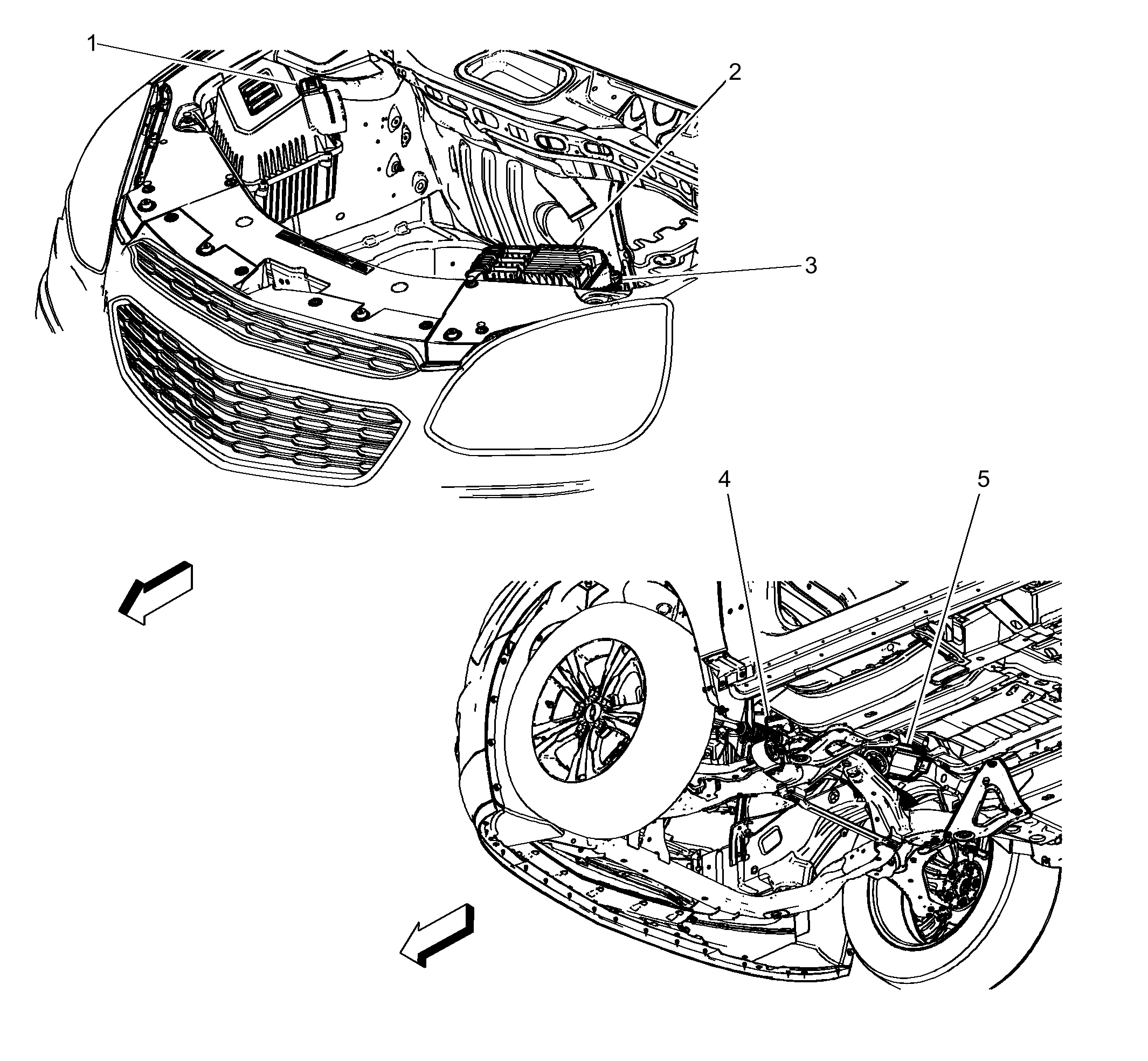

Fig 1: Engine Compartment Components (1 of 3)
GM4121143Courtesy of GENERAL MOTORS COMPANY
