Multimedia Player Interface and Audio Jacks (UYE)

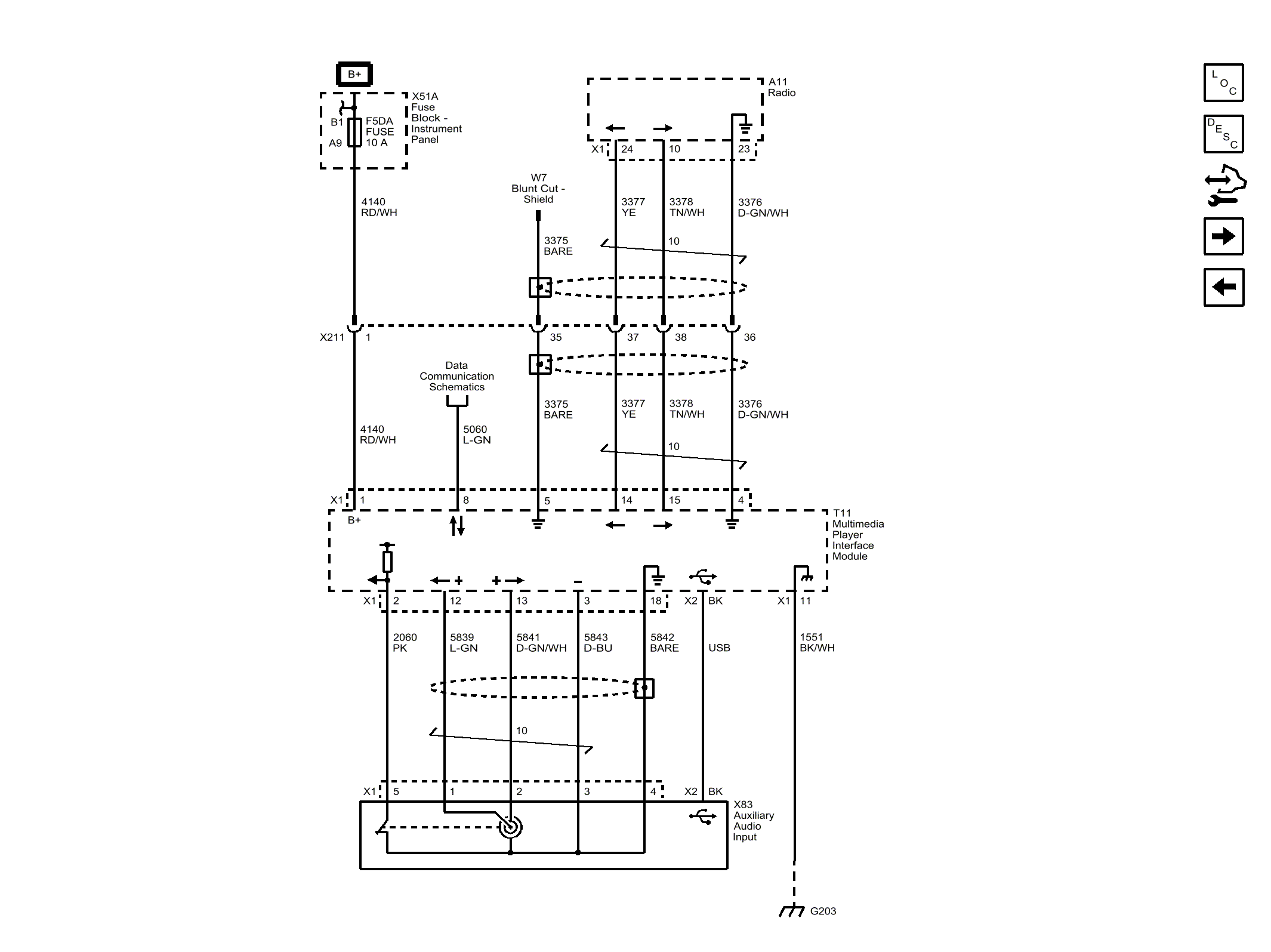

Fig 1: Multimedia Player Interface and Audio Jacks (UYE)

GM4401793

Courtesy of GENERAL MOTORS COMPANY
