Top of Engine Components (LWN)

Top of Engine Components (LWN)

Items
1. E12A Glow Plug 1 (LWN)
2. E12B Glow Plug 2 (LWN)
3. E12C Glow Plug 3 (LWN)
4. E12D Glow Plug 4 (LWN)
5. B65 Intake Manifold Pressure and Air Temperature Sensor (LWN) B65 Intake Manifold Pressure and Air Temperature Sensor

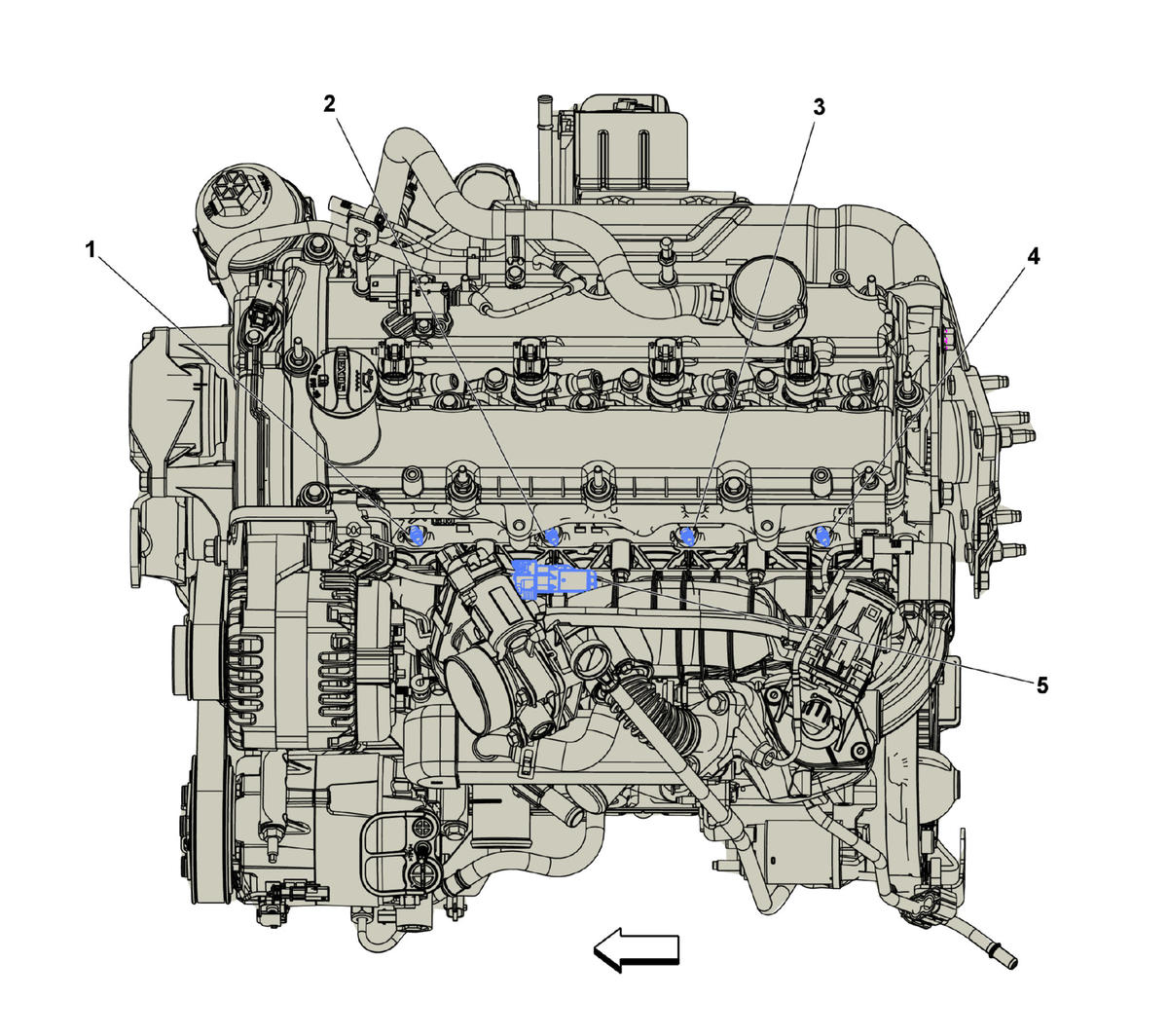

Fig 1: Top of Engine Components (LWN)
GM4122337Courtesy of GENERAL MOTORS COMPANY
