Right Top of Engine Components (LCV)

Right Top of Engine Components (LCV)

Items
1. B310 Fuel Pressure/Temperature Sensor (LGZ/LCV) B310 Fuel Pressure/Temperature Sensor (LGX/LCV)
2. Q17A Fuel Injector 1 Q17A Fuel Injector 1
3. Q17B Fuel Injector 2 Q17B Fuel Injector 2
4. Q17C Fuel Injector 3 Q17C Fuel Injector 3
5. Q17D Fuel Injector 4 Q17D Fuel Injector 4

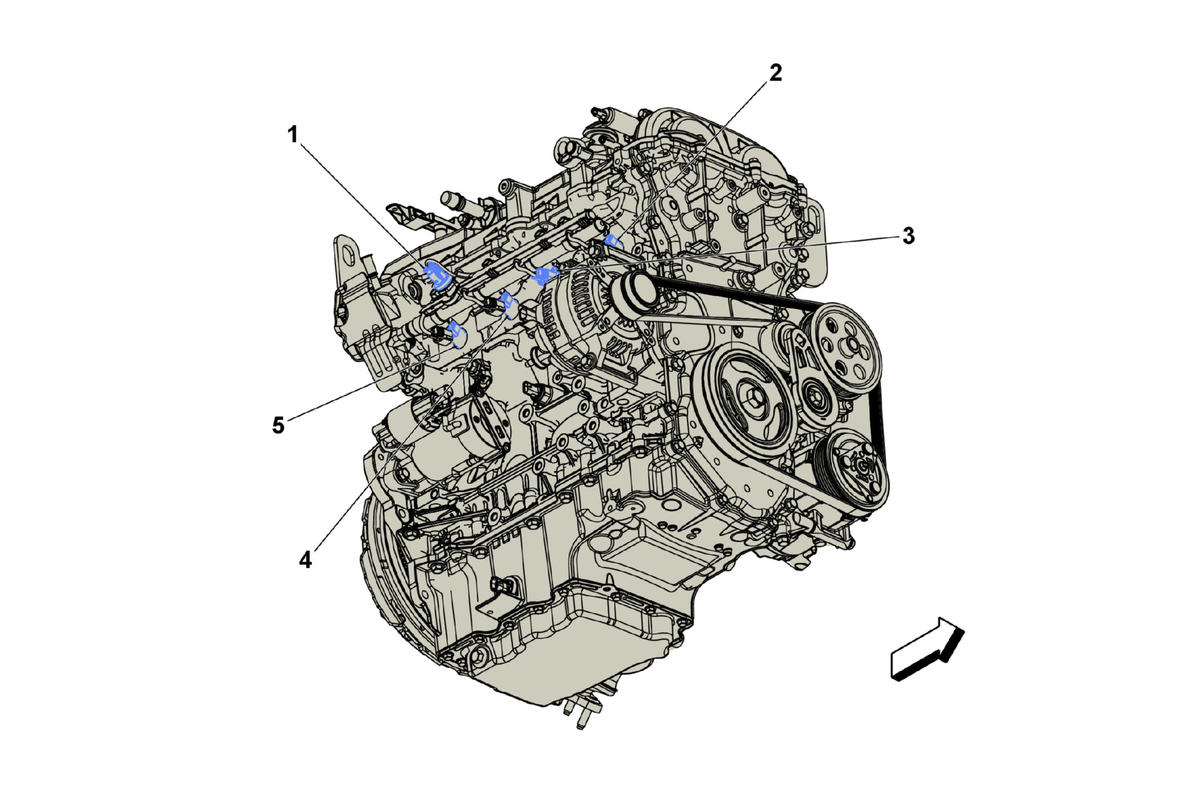

Fig 1: Right Top of Engine Components (LCV)
GM4771804Courtesy of GENERAL MOTORS COMPANY
