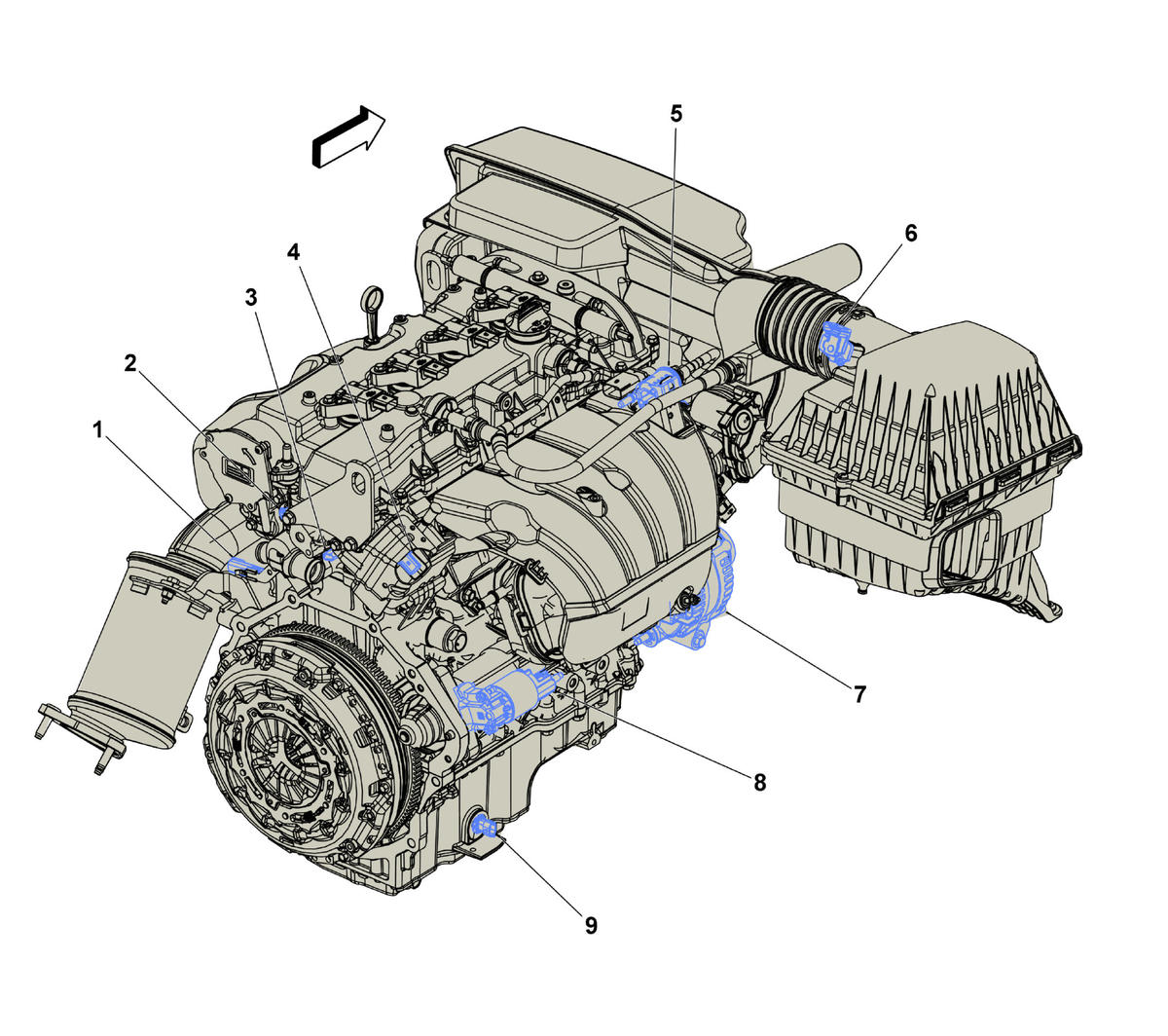

Right Rear of Engine Components (LCV)
Right Rear of Engine Components (LCV)
| Items |
|---|
| 1. Q44 Engine Oil Pressure Control Solenoid Valve (LCV) Q44 Engine Oil Pressure Control Solenoid Valve (LCV) |
| 2. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LCV) |
| 3. B23F Camshaft Position Sensor - Intake (LCV) B23F Camshaft Position Sensor - Intake (LCV) |
| 4. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 5. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 6. B75C Multifunction Intake Air Sensor (LCV/LGZ/LWN) B75C Multifunction Intake Air Sensor |
| 7. G13 Generator G13 Generator X1 |
| 8. M64 Starter Motor M64 Starter Motor (LCV) |
| 9. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LCV) |
