Right Bottom of Engine Components (LCV)

Right Bottom of Engine Components (LCV)

Items
1 B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LCV)
2. B68A Knock Sensor 1 (LCV/LGZ) B68A Knock Sensor 1
3.B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LCV)
4. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LCV)
5. B68B Knock Sensor 2 B68B Knock Sensor 2

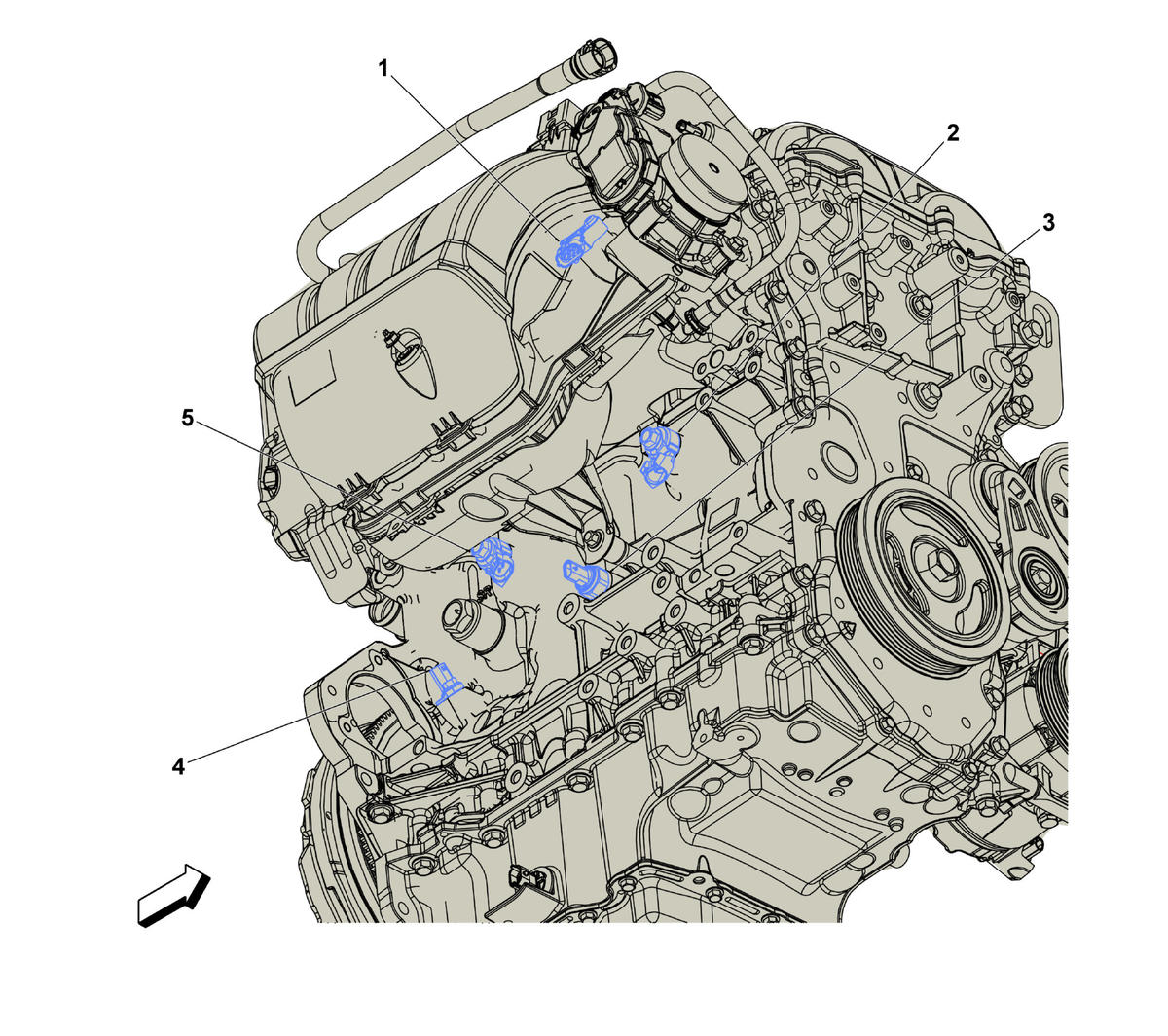

Fig 1: Right Bottom of Engine Components (LCV)
GM3921637Courtesy of GENERAL MOTORS COMPANY
