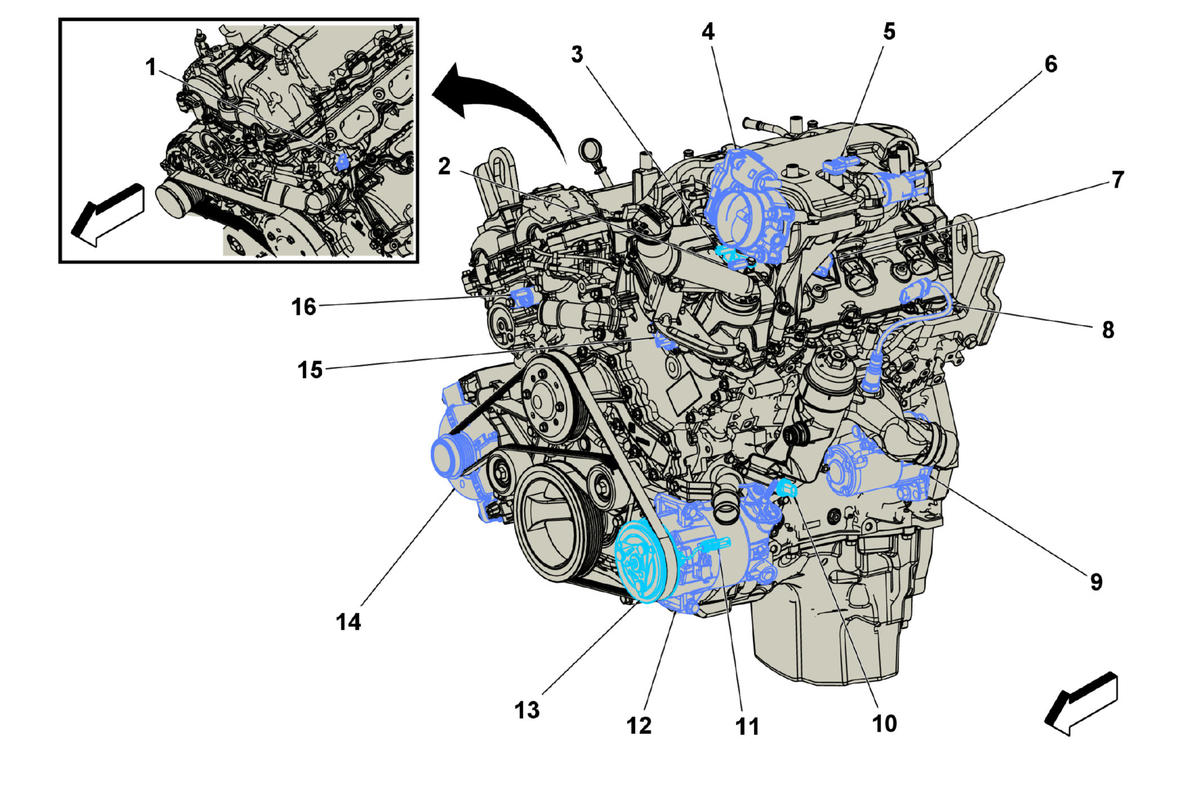

Left Front of the Engine Components (LGZ)
Left Front of the Engine Components (LGZ)
| Items |
|---|
| 1. Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake |
| 2. Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGZ) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust |
| 3. Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGZ) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake |
| 4. Q38 Throttle Body |
| 5. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LGZ) |
| 6. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 7. Q83B Valve Lifter Oil Solenoid Valve - Bank 2 Q83B Valve Lifter Oil Solenoid Valve - Bank 2 |
| 8. B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LGZ) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 |
| 9. M64 Starter Motor M64 Starter Motor (LGZ) |
| 10.B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LGZ) |
| 11. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor (LGZ) |
| 12. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 13. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
| 14. G13 Generator G13 Generator X1 |
| 15. Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake |
