Tire Pressure Sensor: Removal

  1. Raise vehicle on a suitable support. Remove tire/wheel assembly from vehicle.
  2. Dismount tire from wheel following tire changer manufacturer's instructions.
  3. Remove the TORX screw (1) from the tire pressure sensor (2) and pull it straight off the tire pressure valve stem (3). See Fig 1.
  4. Remove the tire pressure valve stem by pulling it through the rim.

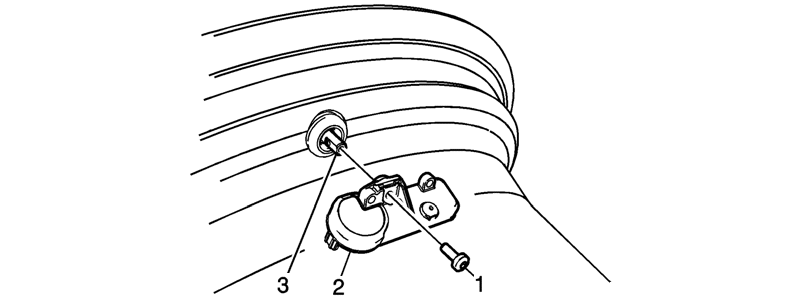

Fig 1: Exploded View Of Tire Pressure Sensor Assembly
G00494496Courtesy of GENERAL MOTORS CORP.
