Fuel Tank Filler Hose Replacement

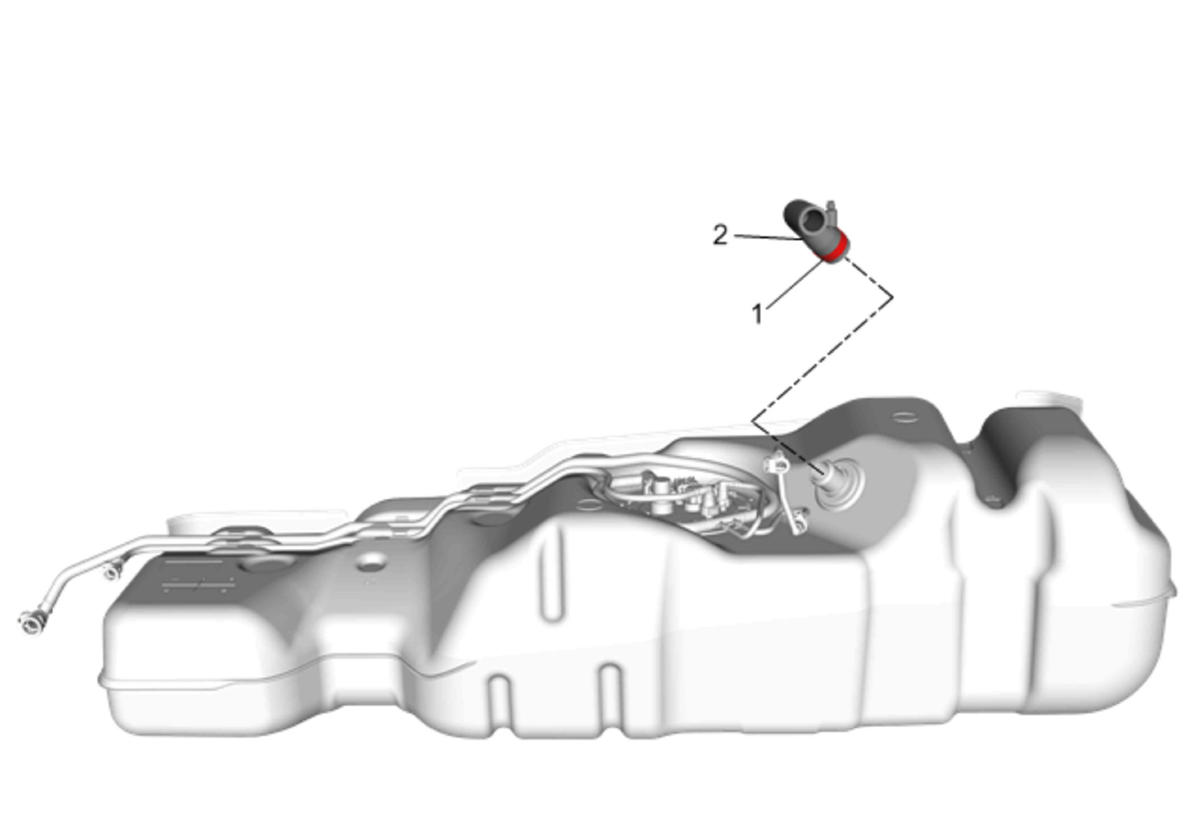

Fig 1: Fuel Tank Filler Hose
GM3805389Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Tank Filler Hose Clamp
CAUTION:

Refer to Fastener Caution .
2 Fuel Tank Filler Hose
