Crankshaft Position Sensor Replacement

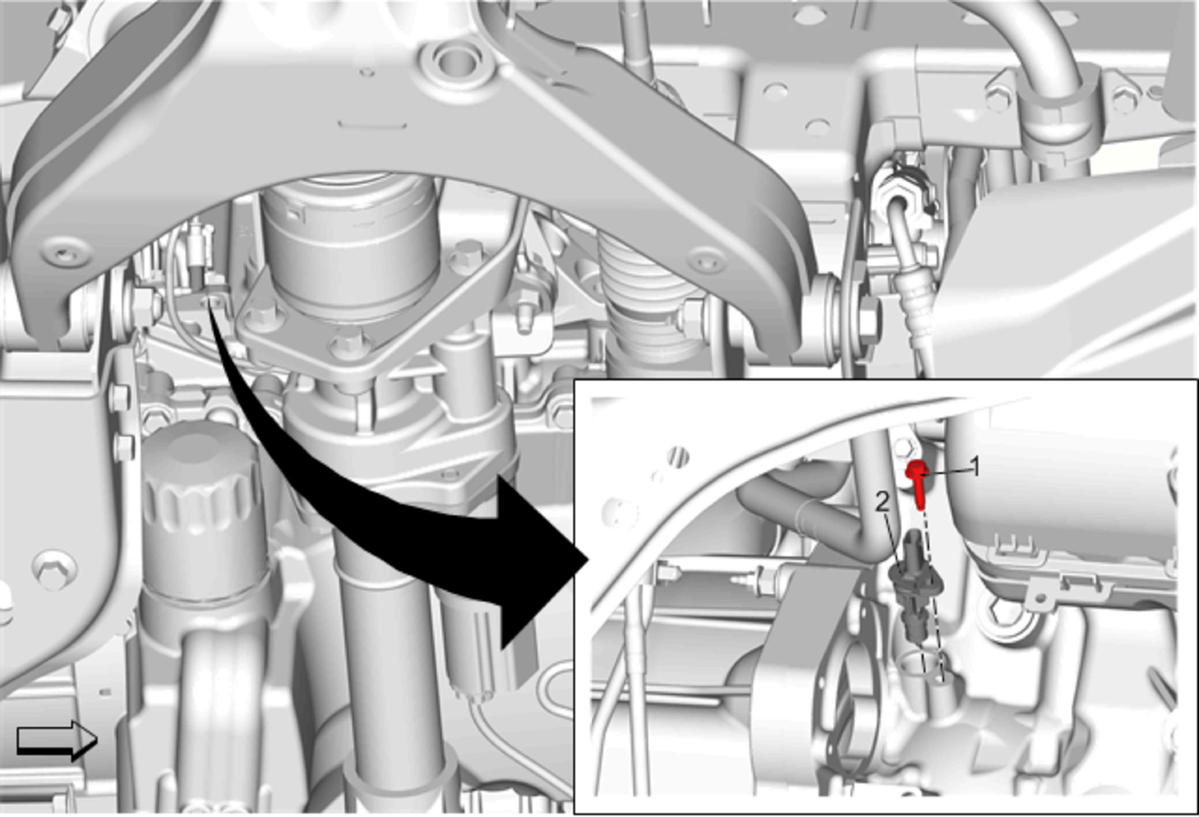

Fig 1: Crankshaft Position Sensor

GM3818230

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Raise and properly support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the starter. Refer to Starter Replacement (LCV) .

1

Crankshaft Position Sensor Fastener

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

2

Crankshaft Position Sensor

Procedure

Disconnect the electrical wiring harness connector from the crankshaft position sensor.
If installing a new sensor, perform the crankshaft position system variation learn procedure. Refer to Crankshaft Position Variation Learn .
