Removal Procedure

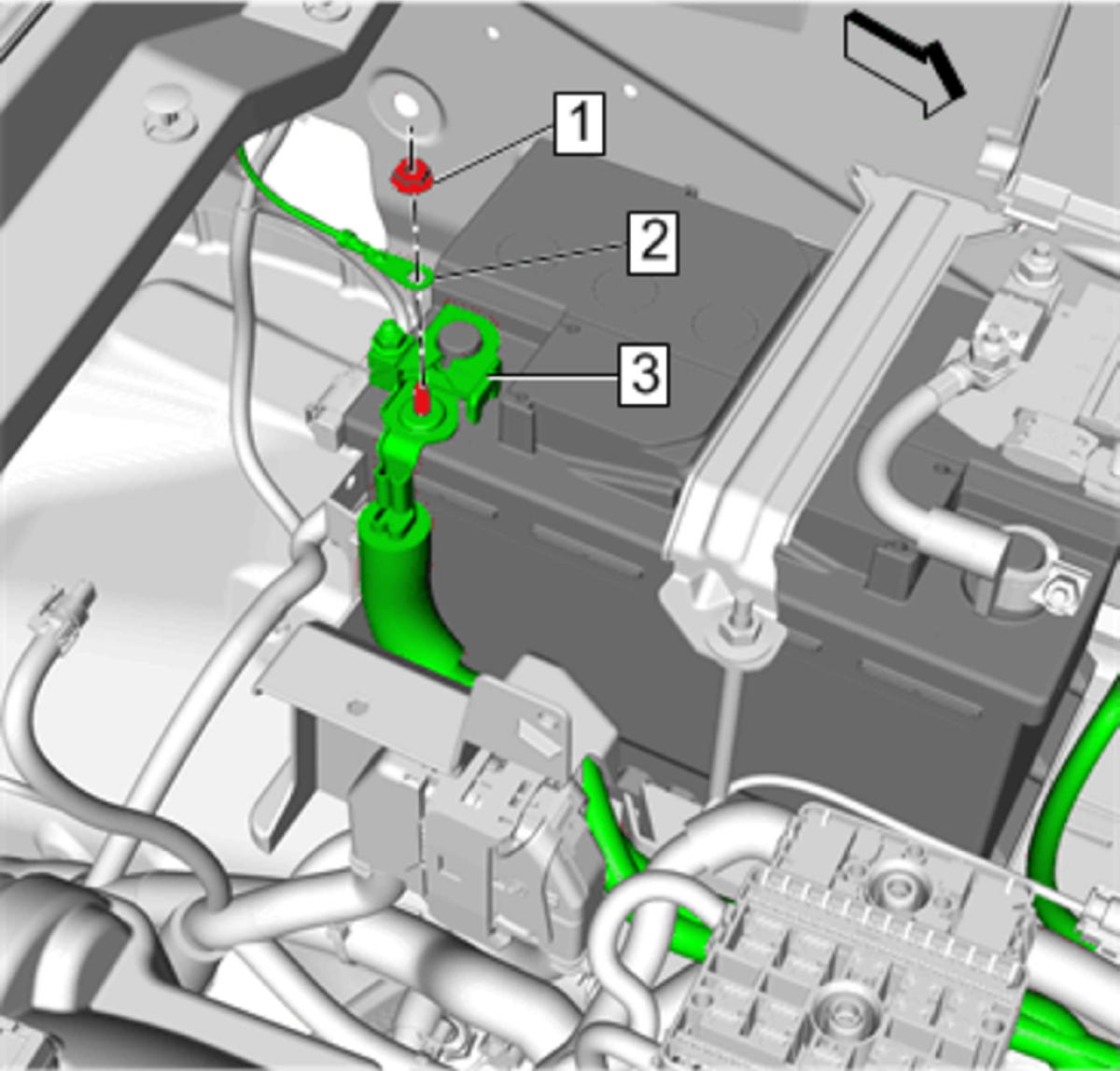

    Fig 1: Body Harness Ground Fastener And Body Harness Terminal
    GM4564758Courtesy of GENERAL MOTORS COMPANY
  1. Remove Body Harness Ground Fastener (1) @ Battery Negative Post Clamp (3)
  2. Remove Body Harness Terminal (2)
  3. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
    4. Fig 2: Engine Wiring Harness Fuse Block Bracket
    GM3808307Courtesy of GENERAL MOTORS COMPANY
  4. Remove Engine Wiring Harness Fuse Block Bracket (2) -Engine Wiring Harness Fuse Block Bracket Replacement

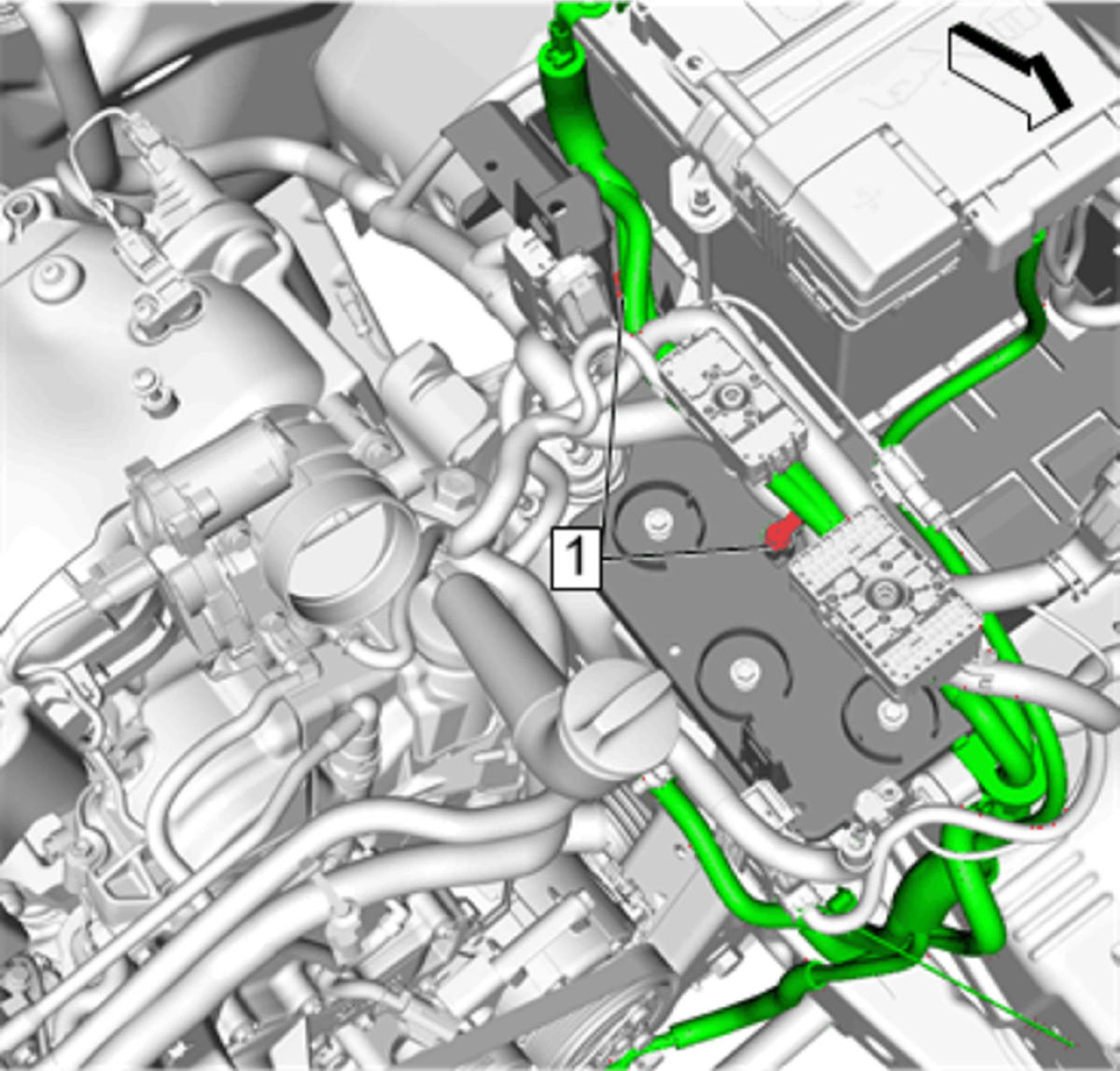

    5. Fig 3: Retainer
    GM4564774Courtesy of GENERAL MOTORS COMPANY
  5. Disengage Remove Retainer (1)

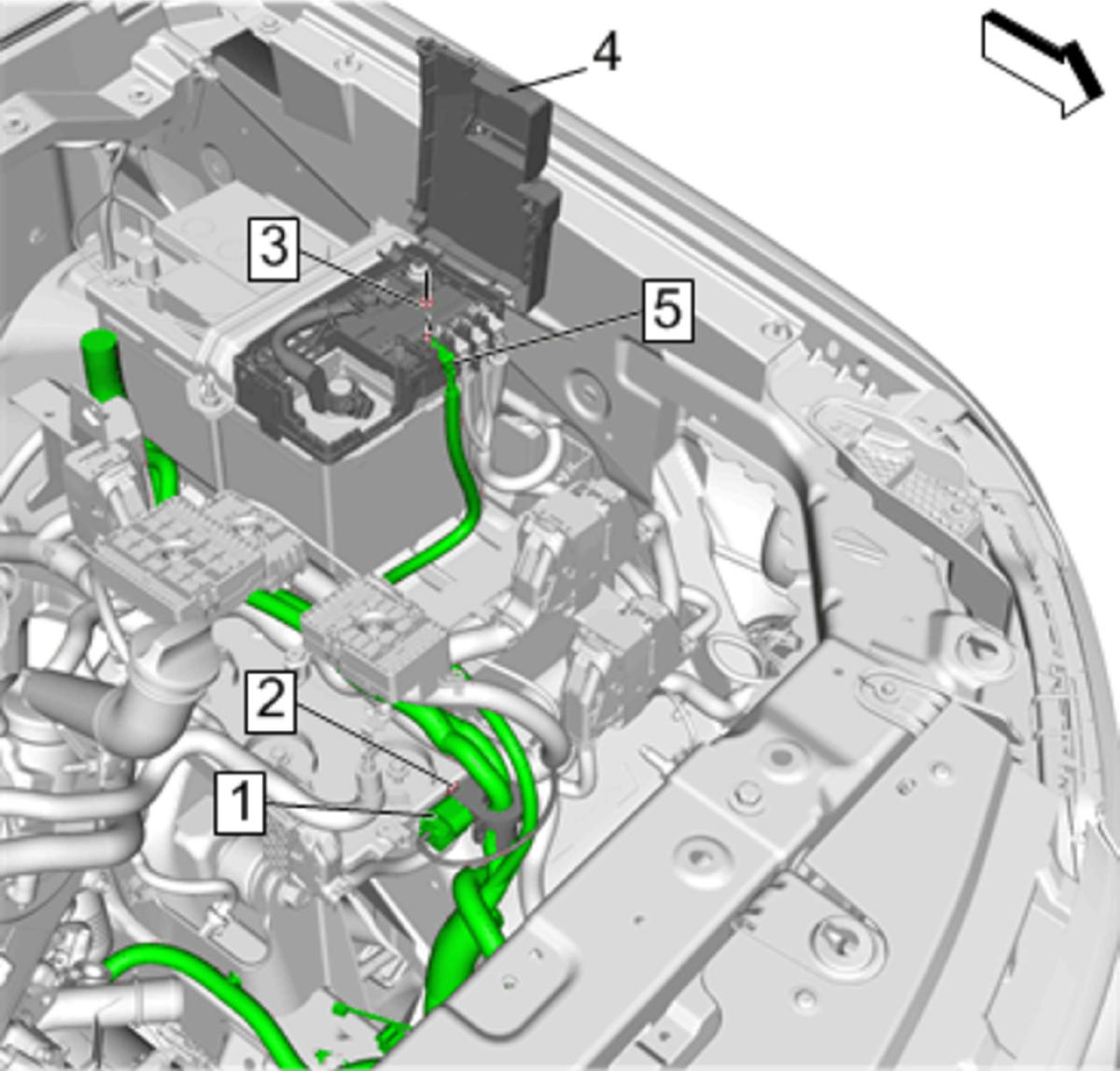

    6. Fig 4: Retainer
    GM4564783Courtesy of GENERAL MOTORS COMPANY
  6. Disconnect the battery current sensor connector. (1)
  7. Disengage Retainer (2)
  8. Open the battery fuse block cover. (4)
  9. Remove Fuse Block Nut (3)
  10. Remove Battery Negative Cable (5)

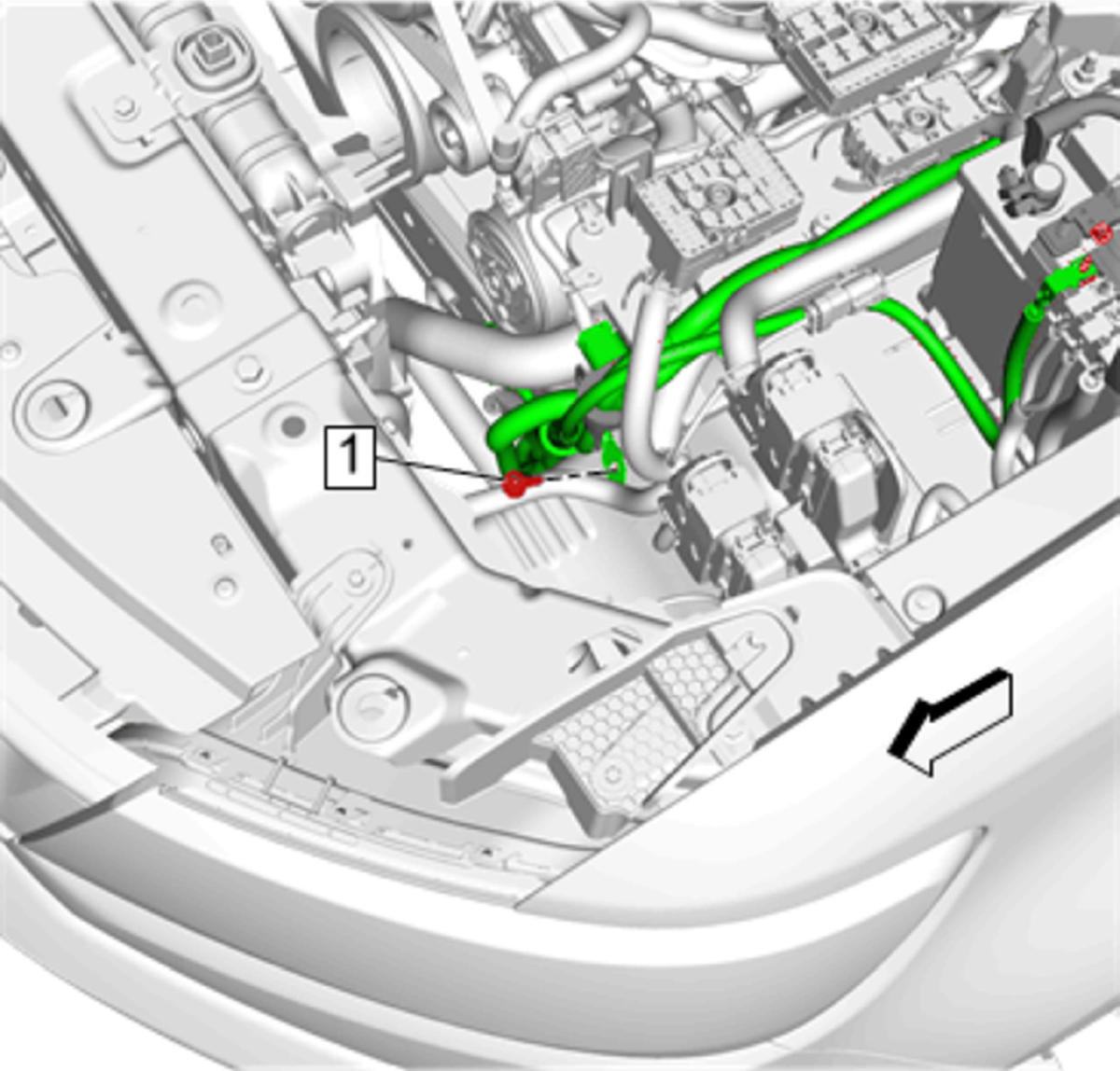

    11. Fig 5: Battery Negative Cable Ground Fastener
    GM4564801Courtesy of GENERAL MOTORS COMPANY
  11. Remove Battery Negative Cable Ground Fastener (1)
  12. Raise and support the vehicle. Lifting and Jacking the Vehicle .
  13. Remove Underbody Splash Shield - Underbody Splash Shield Replacement (without ZR2)Underbody Splash Shield Replacement (with ZR2)
  14. Remove Steering Gear Skid Shield - Steering Gear Skid Shield Replacement (without ZR2)Steering Gear Skid Shield Replacement (with ZR2)

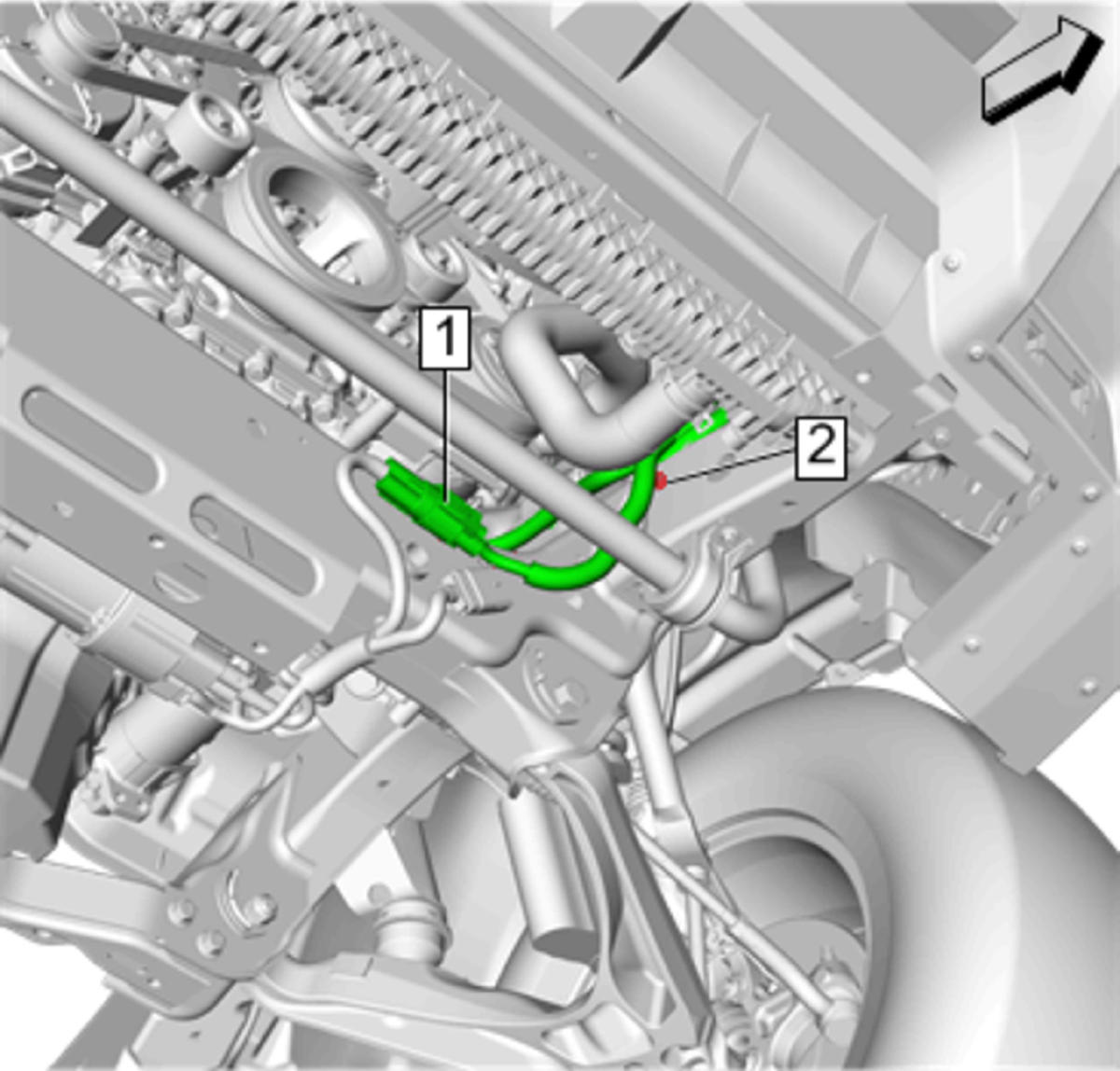

    15. Fig 6: Electric Belt Drive Rack And Pinion Steering Gear Connector
    GM4564793Courtesy of GENERAL MOTORS COMPANY
  15. Disconnect the electric belt drive rack and pinion steering gear connector (1).
  16. Disengage Retainer (2)

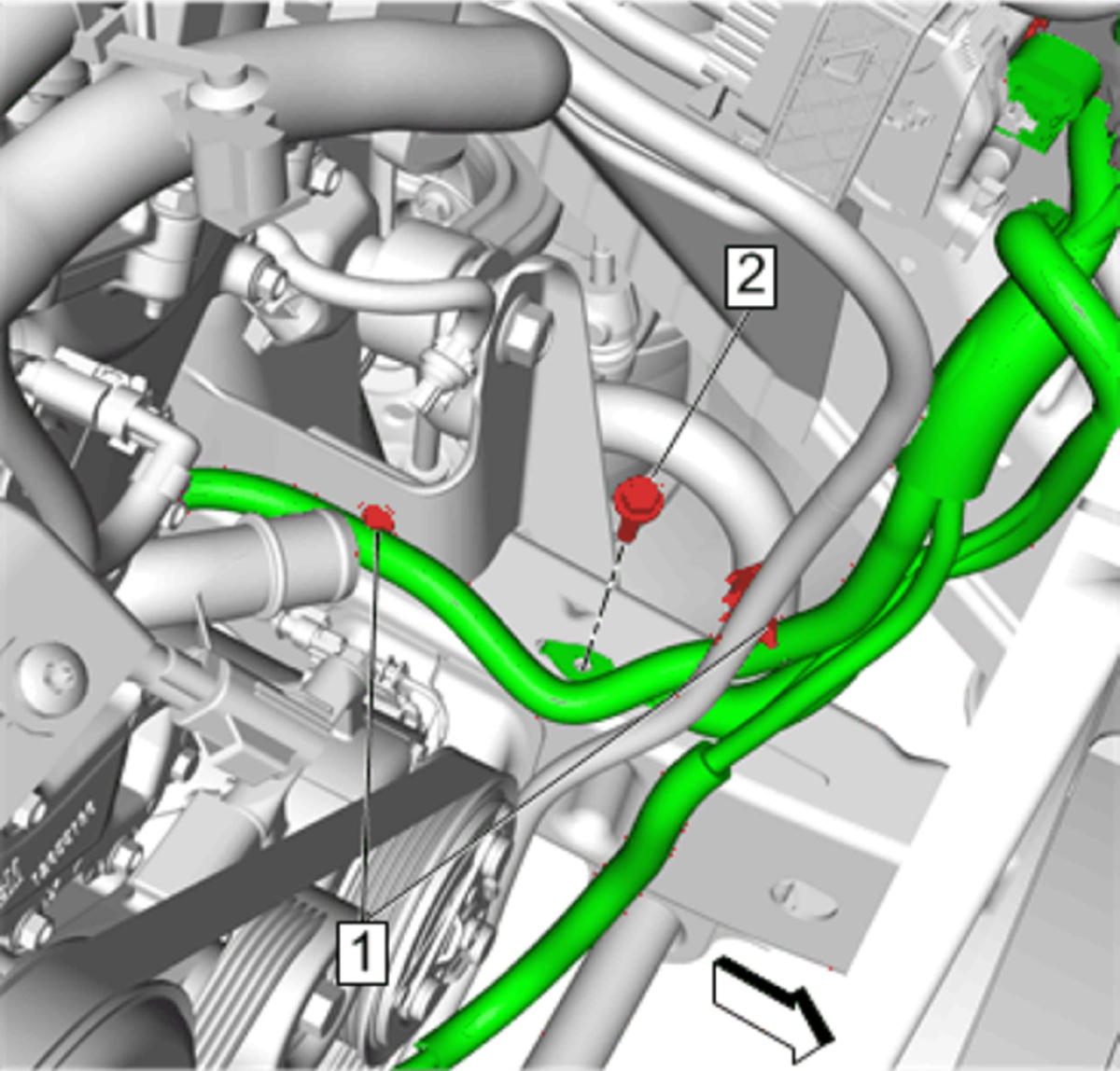

    17. Fig 7: Negative Cable Frame Ground Fastener
    GM4564806Courtesy of GENERAL MOTORS COMPANY
  17. Remove Battery Negative Cable Frame Ground Fastener (2).
  18. Disengage Retainer (1).

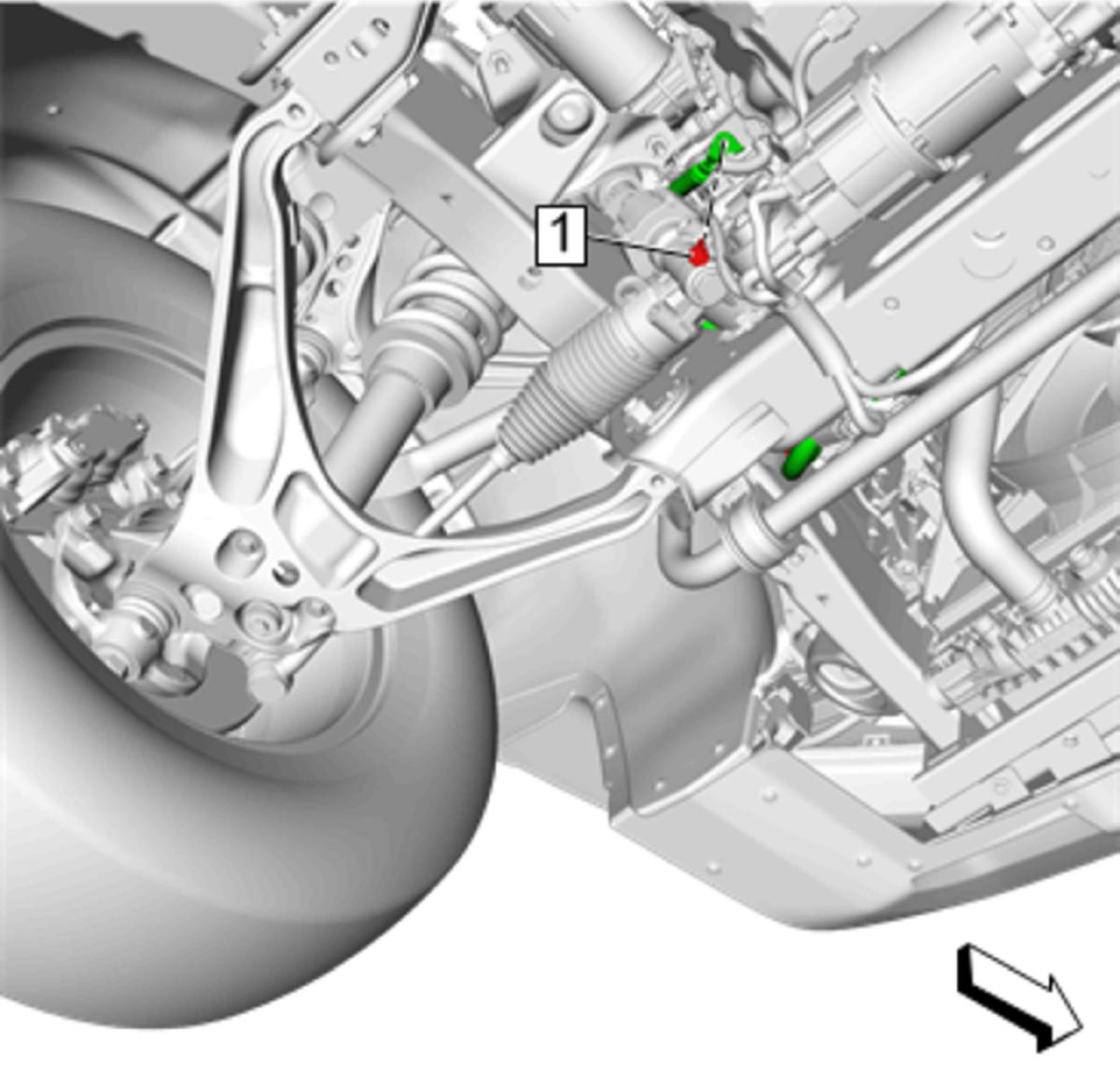

    19. Fig 8: Battery Negative Cable Ground Fastener
    GM4564808Courtesy of GENERAL MOTORS COMPANY
  19. Remove Battery Negative Cable Ground Fastener (1).
  20. Lower the vehicle.
    21. Fig 9: Battery Negative Cable
    GM3802956Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Note the routing of the battery negative cable within the engine compartment.

  21. Remove the battery negative cable (1) from the engine compartment.
