Installation Procedure

    Fig 1: Generator And Bolt
    GM4565670Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator (3)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Generator Bolt (2) and tighten 58 N.m (43 lb ft)
  3. Install Generator Bolt (1) and tighten 58 N.m (43 lb ft)

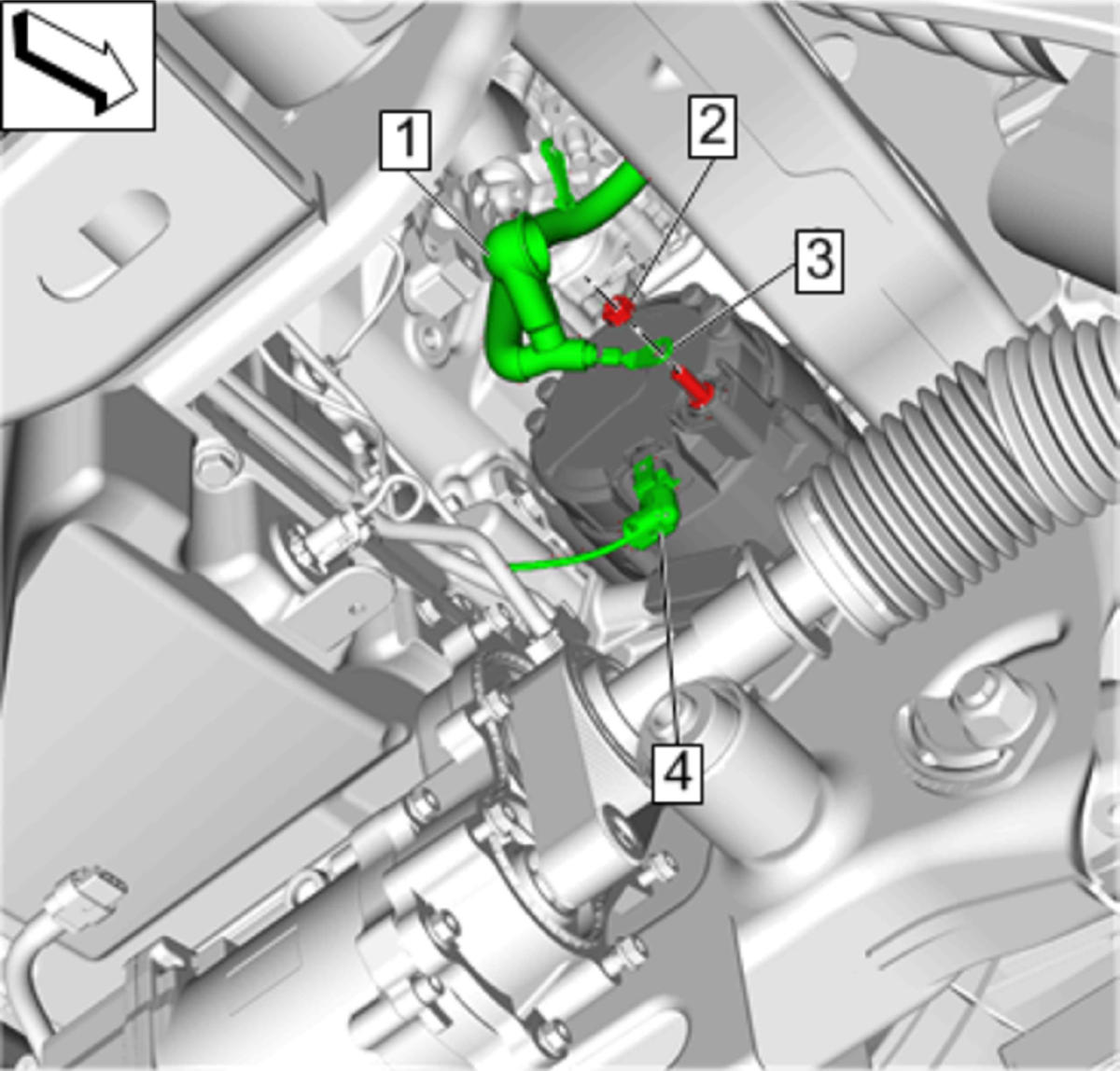

    4. Fig 2: Generator Terminal Protective Boot, Generator Nut And Generator Cable
    GM4565663Courtesy of GENERAL MOTORS COMPANY
  4. Connect Electrical Connector (4)
  5. Install Generator Cable (3)
  6. Install Generator Nut (2) and tighten 15 N.m (11 lb ft)
  7. Install Generator Terminal Protective Boot (1)
  8. Install the drive belt to the generator pulley. Drive Belt Replacement

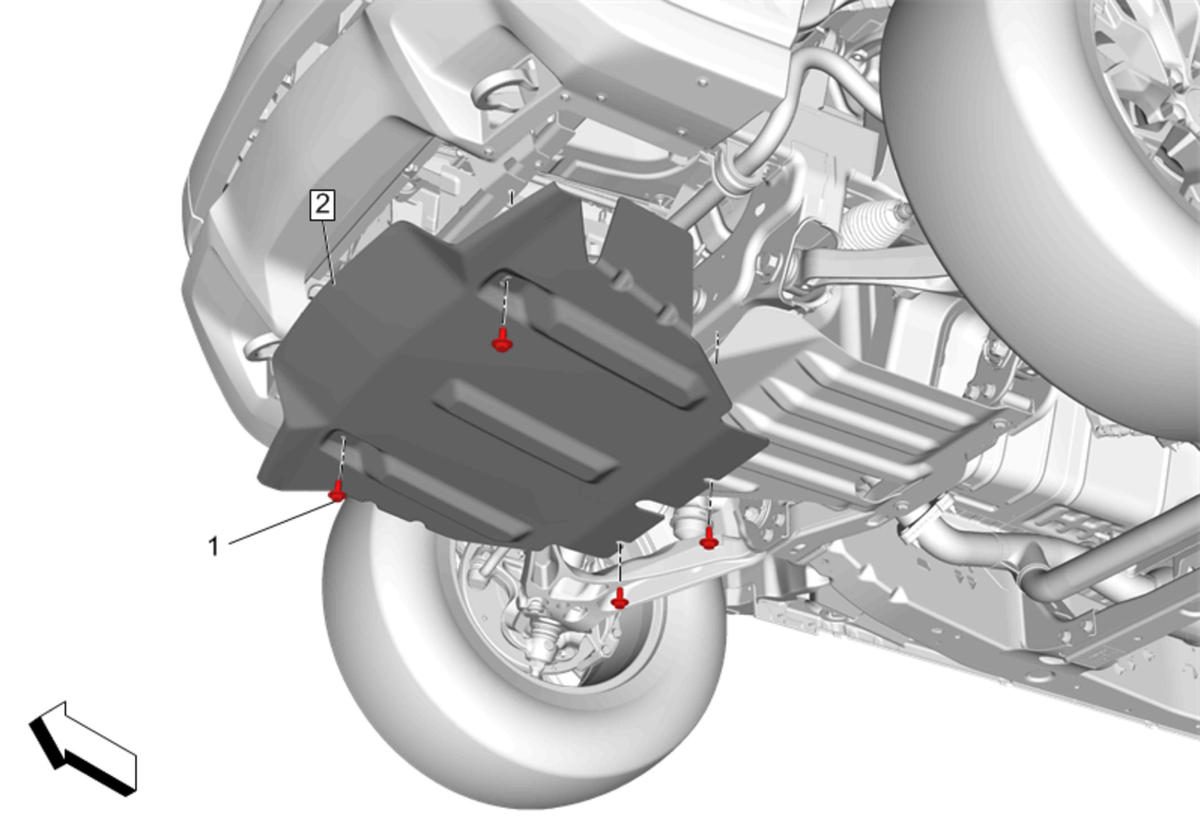

    9. Fig 3: Underbody Splash Shield (with ZR2)
    GM4565133Courtesy of GENERAL MOTORS COMPANY
  9. Install Underbody Splash Shield (2) Underbody Splash Shield Replacement (without ZR2)Underbody Splash Shield Replacement (with ZR2)
    10. Fig 4: Air Cleaner Outlet Duct
    GM4565128Courtesy of GENERAL MOTORS COMPANY
  10. Install Air Cleaner Outlet Duct (1)Air Cleaner Outlet Duct Replacement
  11. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
