Installation Procedure

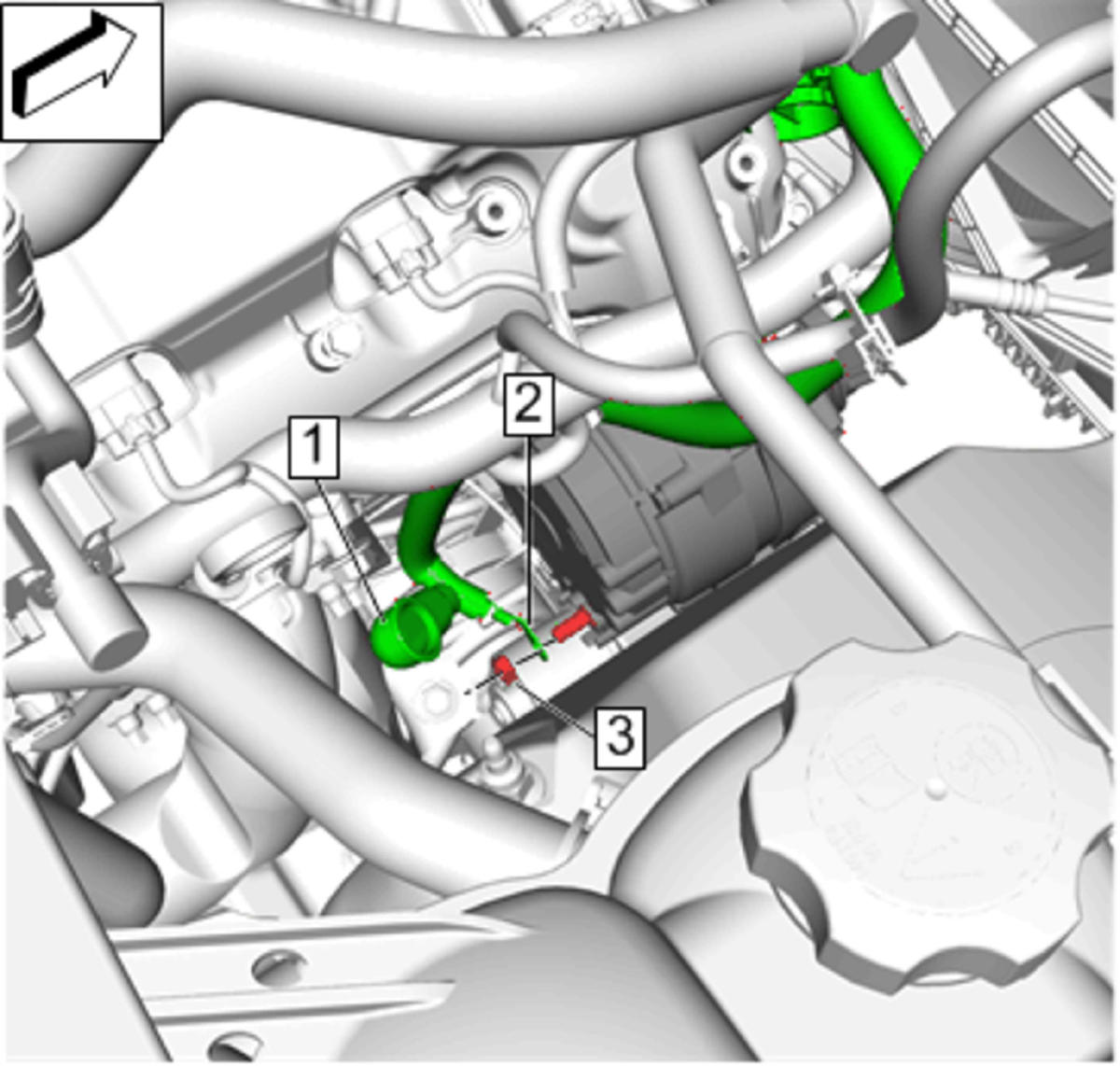

    Fig 1: Generator Cable
    GM4565580Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator Cable (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Generator Nut (3) and tighten 15 N.m (11 lb ft)
  3. Install Generator Terminal Protective Boot (1)

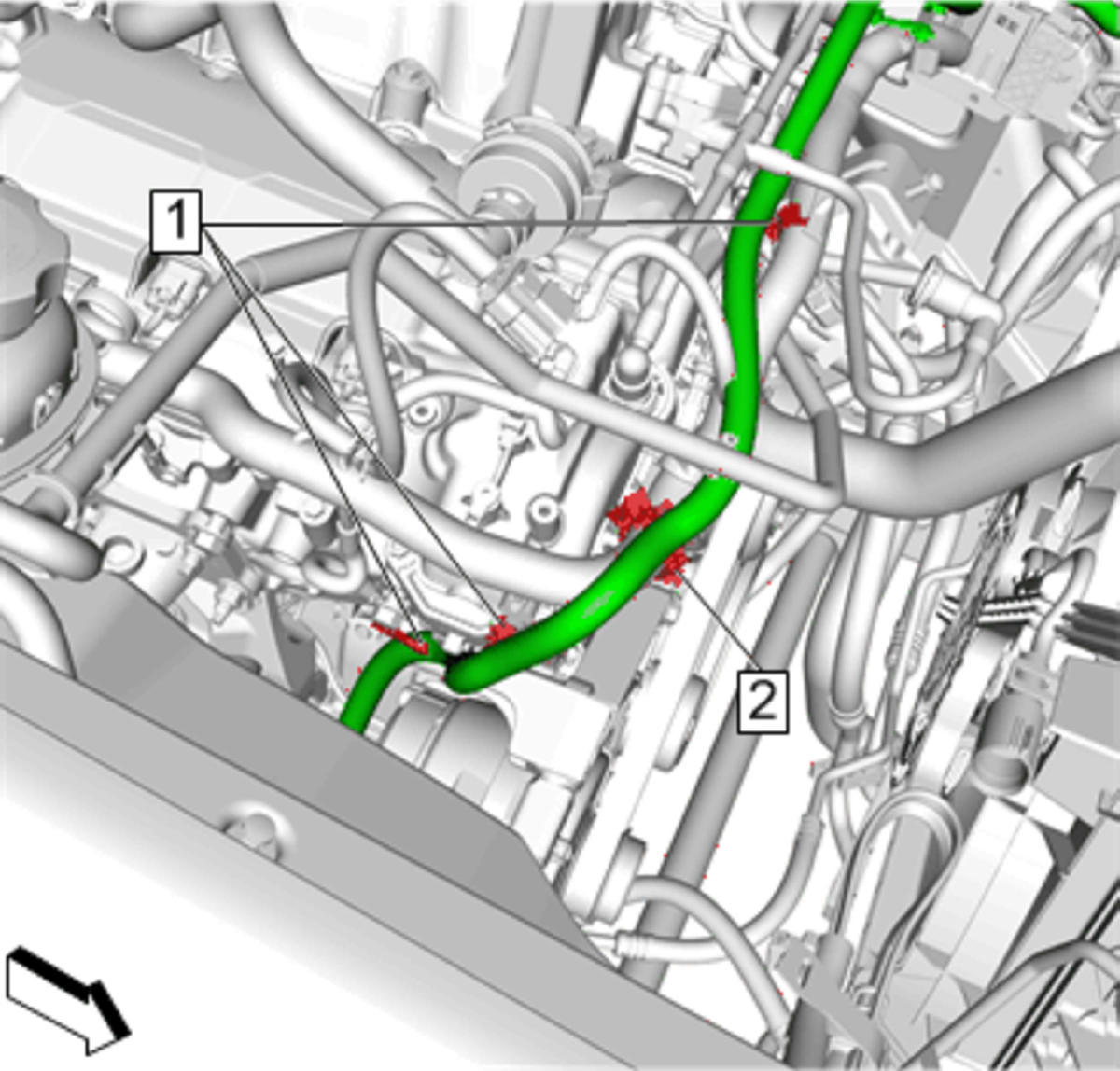

    4. Fig 2: Retainer And Retainer Clip
    GM4565573Courtesy of GENERAL MOTORS COMPANY
  4. Engage Retainer Clip (2)
  5. Engage Retainer (1)

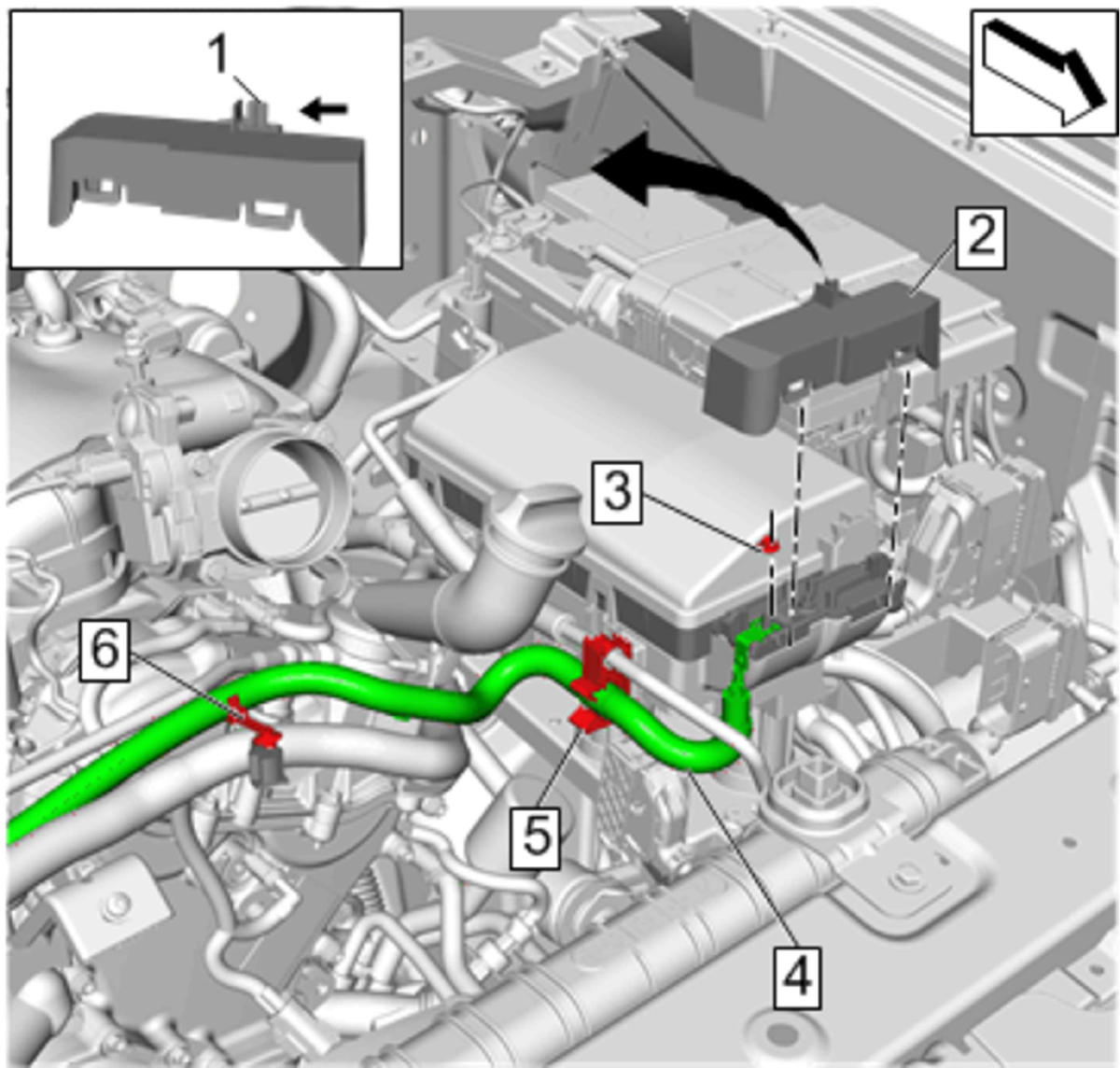

    6. Fig 3: Engine Wiring Harness Junction Block Cover
    GM4565567Courtesy of GENERAL MOTORS COMPANY
  6. Engage Retainer (6)
  7. Engage Retainer Clip (5)
  8. Install Generator Cable (4)
  9. Install Engine Wiring Harness Junction Block Nut (3) and tighten 9 N.m (80 lb in)
  10. Install Engine Wiring Harness Junction Block Cover (2)
    11. Fig 4: Air Cleaner Outlet Duct
    GM4565128Courtesy of GENERAL MOTORS COMPANY
  11. Install Air Cleaner Outlet Duct (1).Air Cleaner Outlet Duct Replacement
  12. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
