Installation Procedure

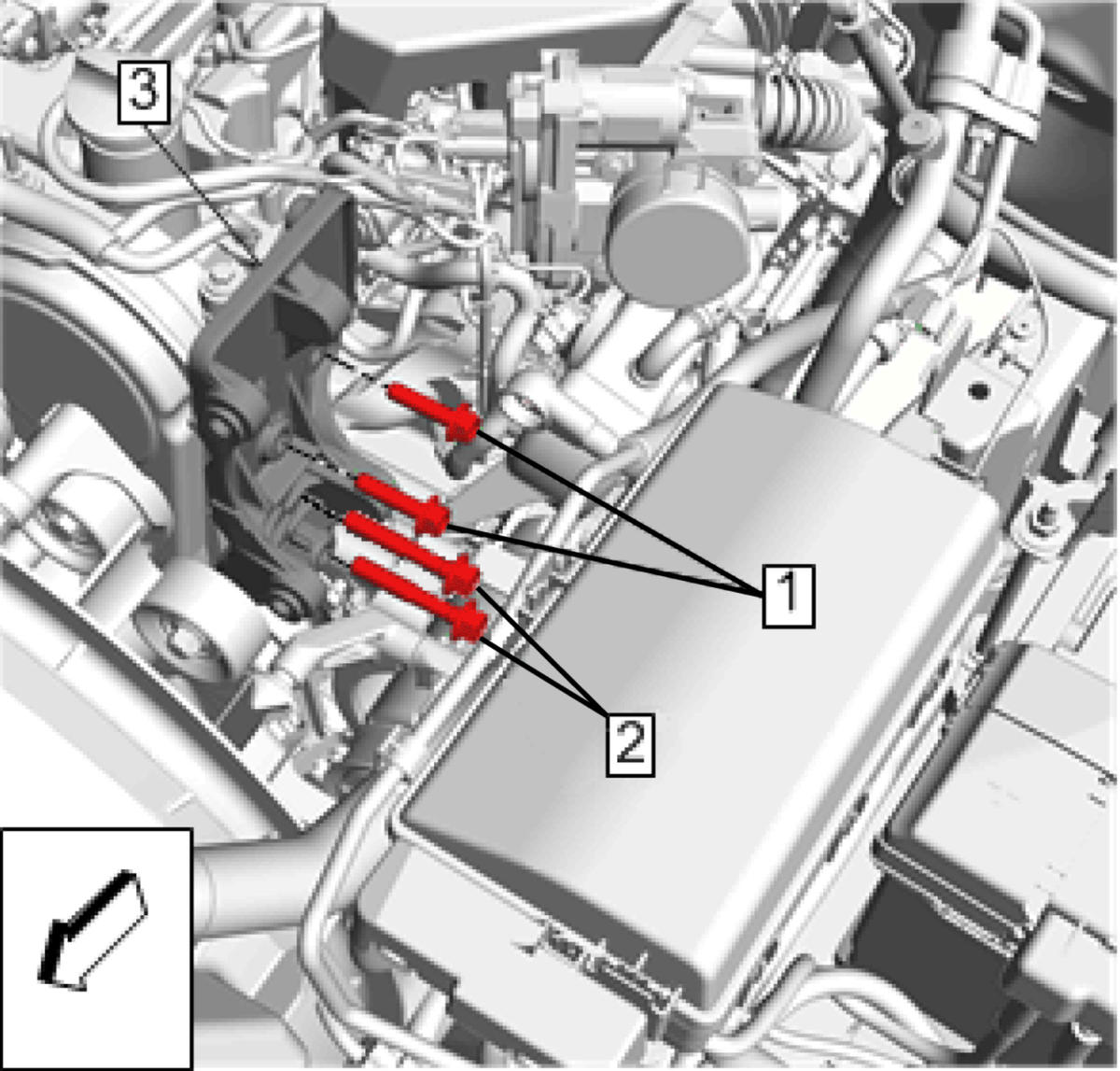

    Fig 1: Generator Bracket Bolt
    GM4180651Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator Bracket (3)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Generator Bracket Bolt (1) and tighten 45 N.m (33 lb ft)
  3. Install Generator Bracket Bolt (2) and tighten 45 N.m (33 lb ft)

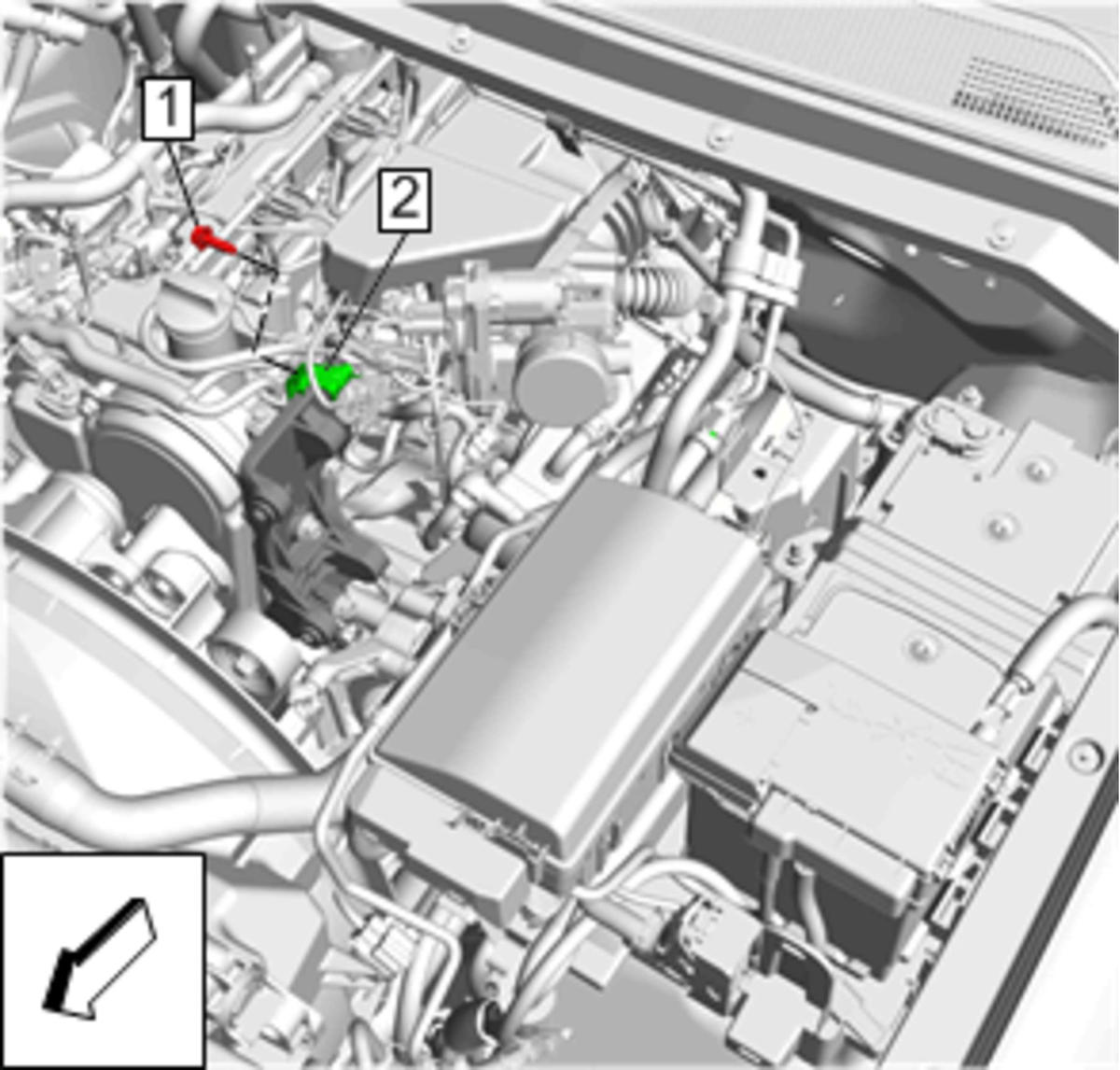

    4. Fig 2: Retainer Fastener
    GM4180649Courtesy of GENERAL MOTORS COMPANY
  4. Install Retainer (2)
  5. Install Retainer Fastener (1) and tighten 22 N.m (16 lb ft)
  6. Install Generator Generator Replacement (LWN)
  7. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
